Data Link Connector: Locations

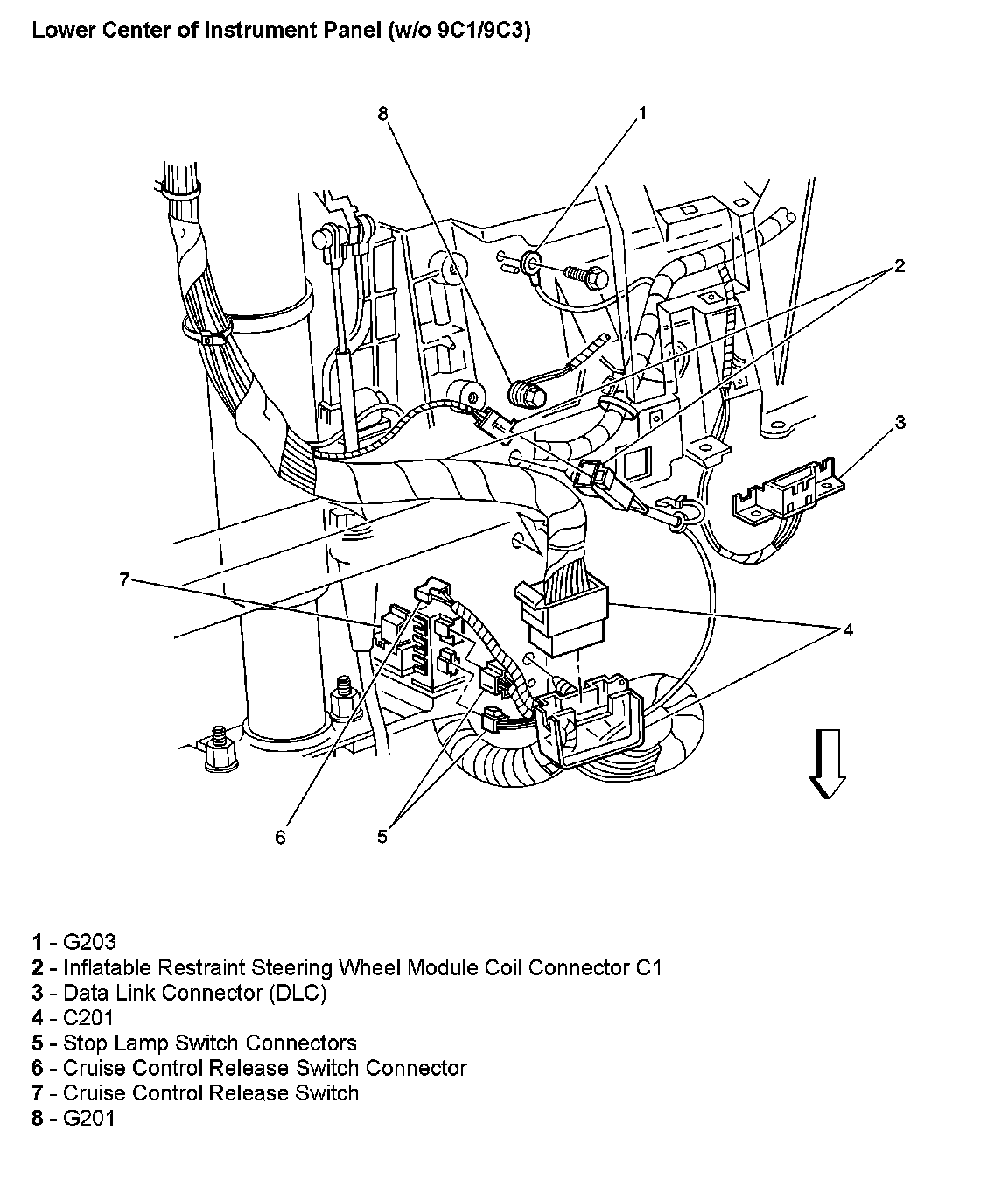

Lower Center Of Instrument Panel (Without RPO Code 9C1/9C3):

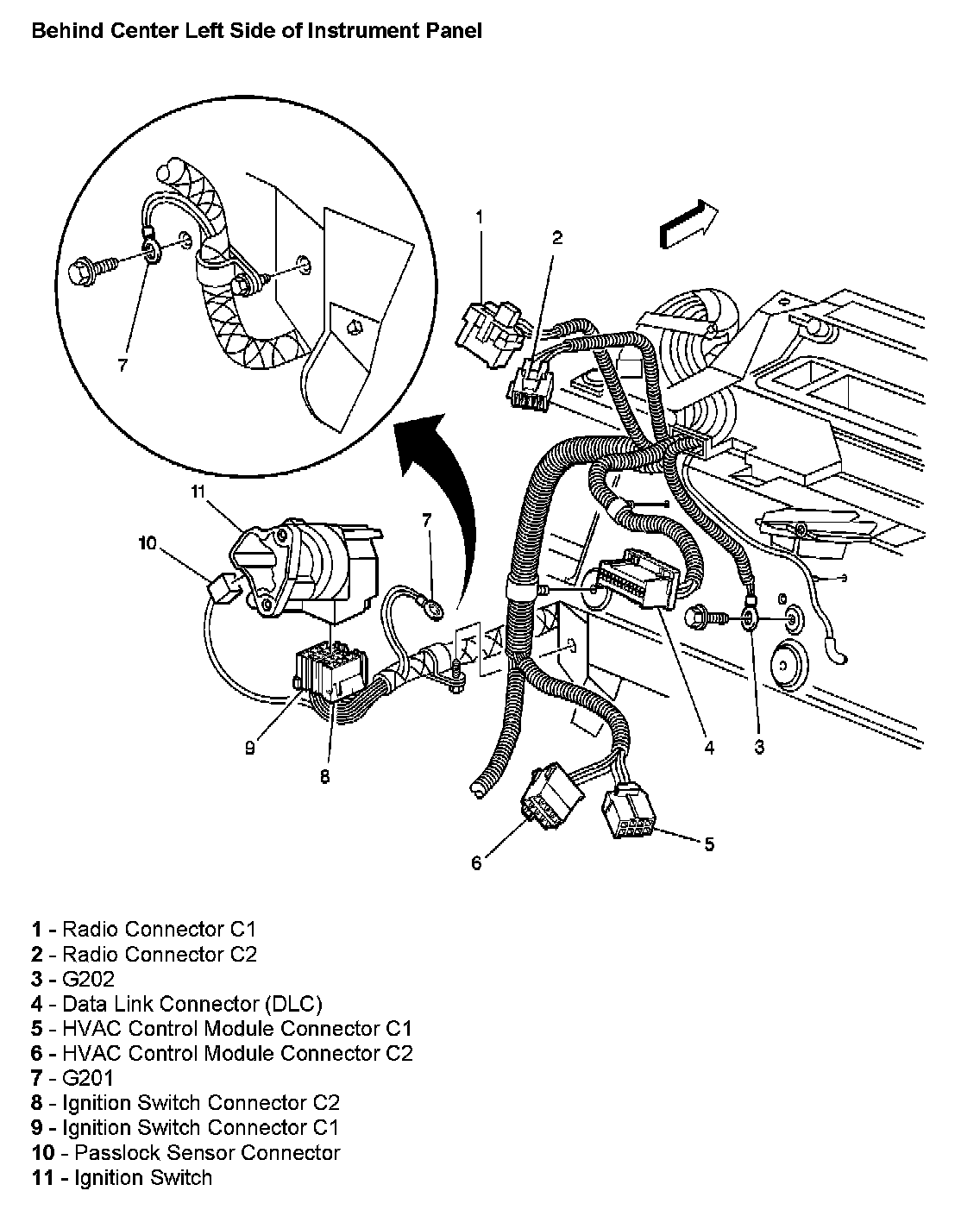

Behind Center Left Side Of Instrument Panel:
Lower Center Of Instrument Panel (Without RPO Code 9C1/9C3):
