Home >> Chevrolet >> 2005 >> Malibu L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Auxiliary Power Outlet >> Auxiliary Power Outlet - Front

Auxiliary Power Outlet - Front

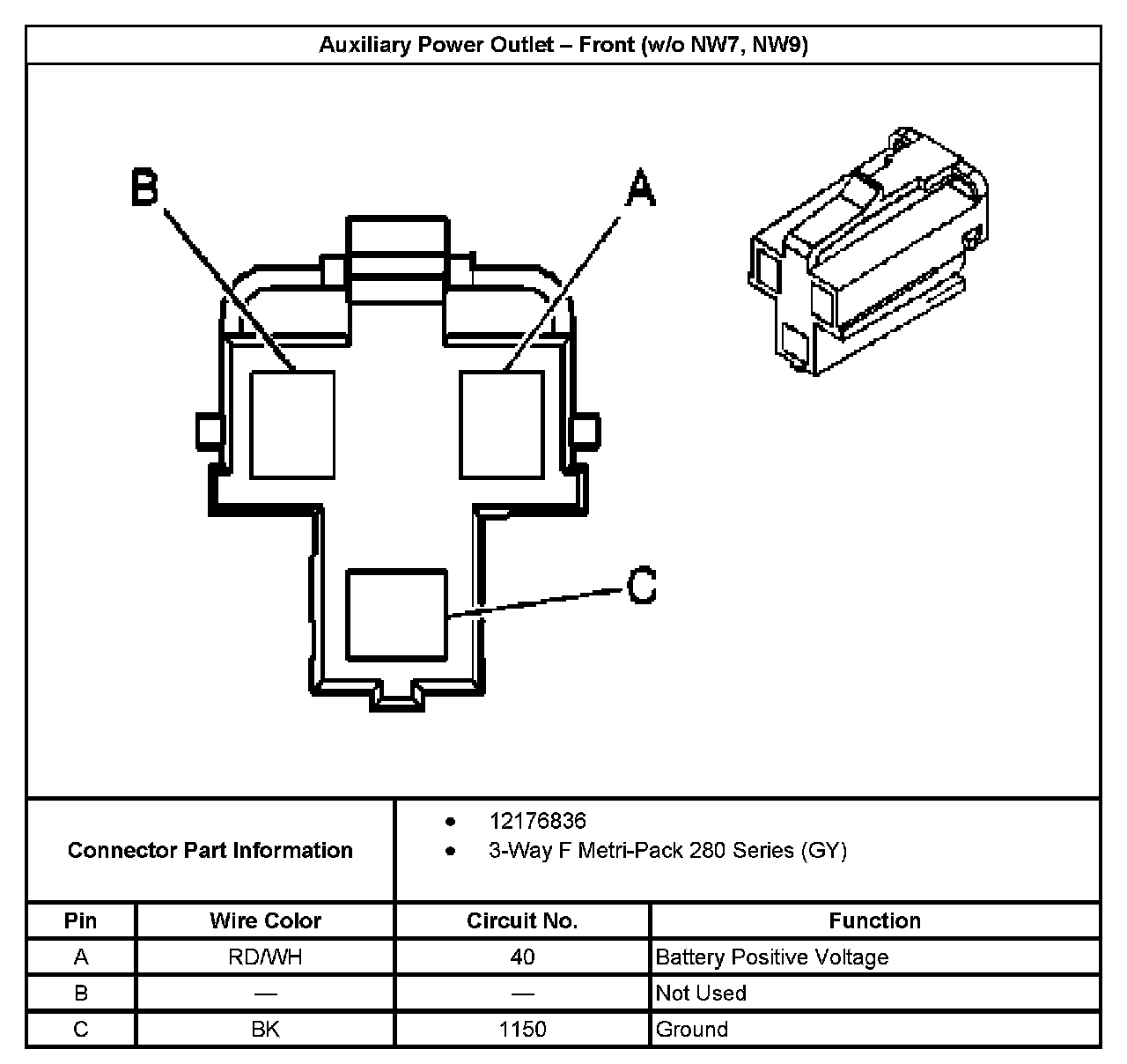

Auxiliary Power Outlet - Front (Without RPO Code NW7,NW9):
