Home >> Chevrolet >> 2005 >> Malibu L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> License Plate Lamp

License Plate Lamp

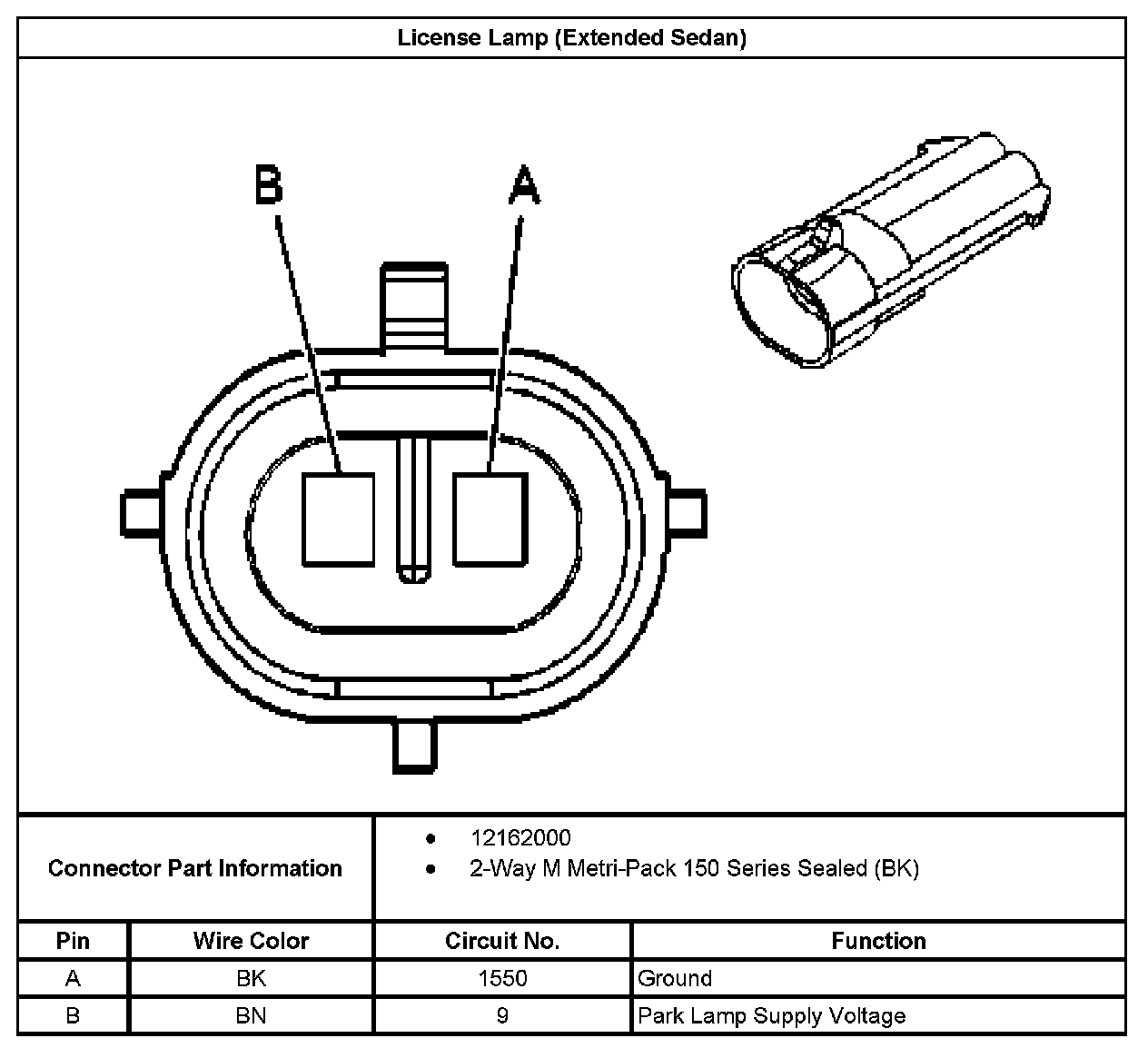

License Lamp (Extended Sedan):



License Lamp - Left (Sedan):



License Lamp - Right (Sedan):
