C500 - C599

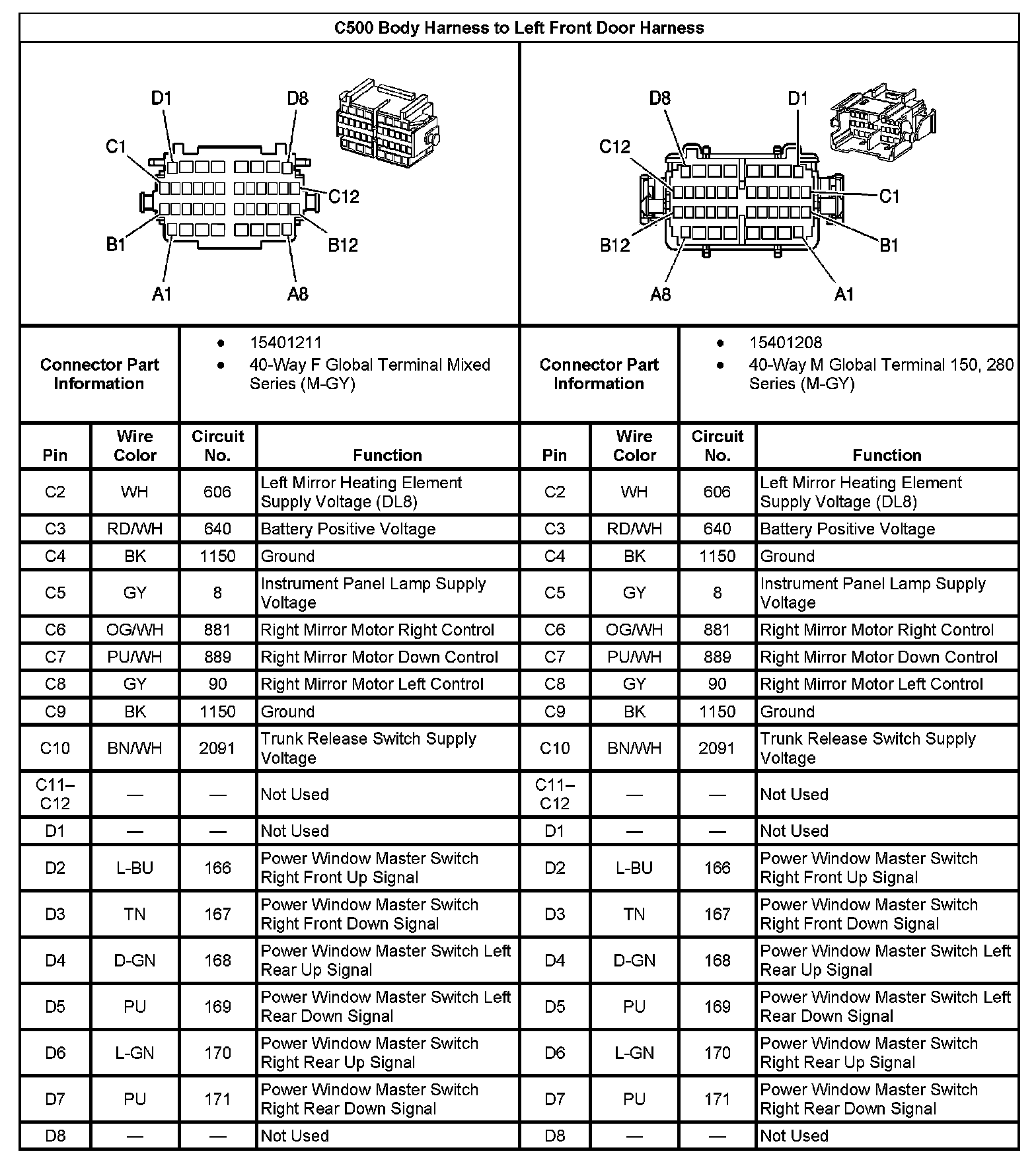

C500 Body Harness to Left Front Door Harness Part 1:
C500 Body Harness to Left Front Door Harness Part 2:
