Home
>>
Chevrolet
>>
2005
>>
Malibu L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Pedal Positioning Sensor
>>
Adjustable Pedals Position Sensor
Adjustable Pedals Position Sensor

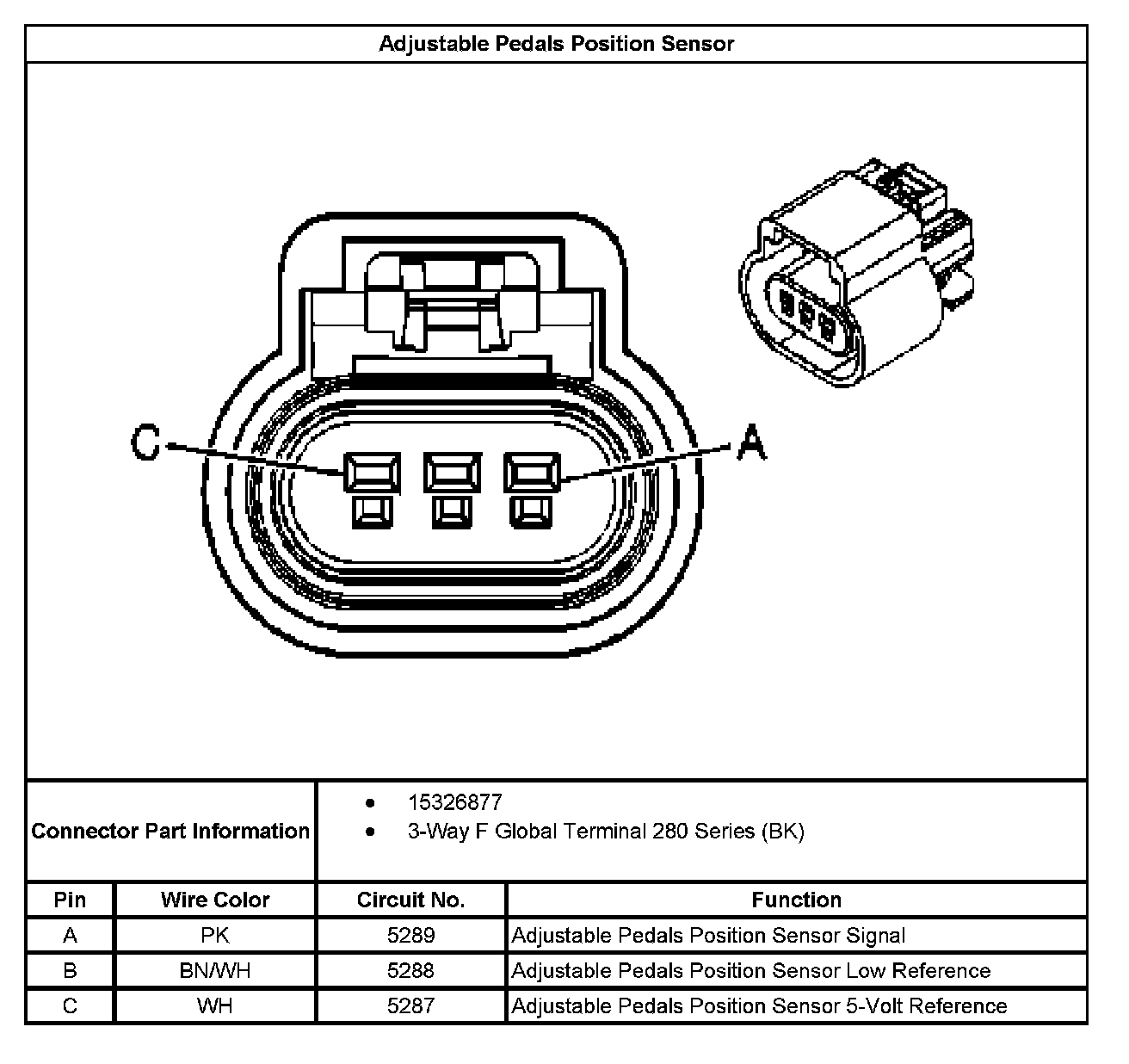

Adjustable Pedals Position Sensor:
