Power Seat Motor
Power Seat Motor

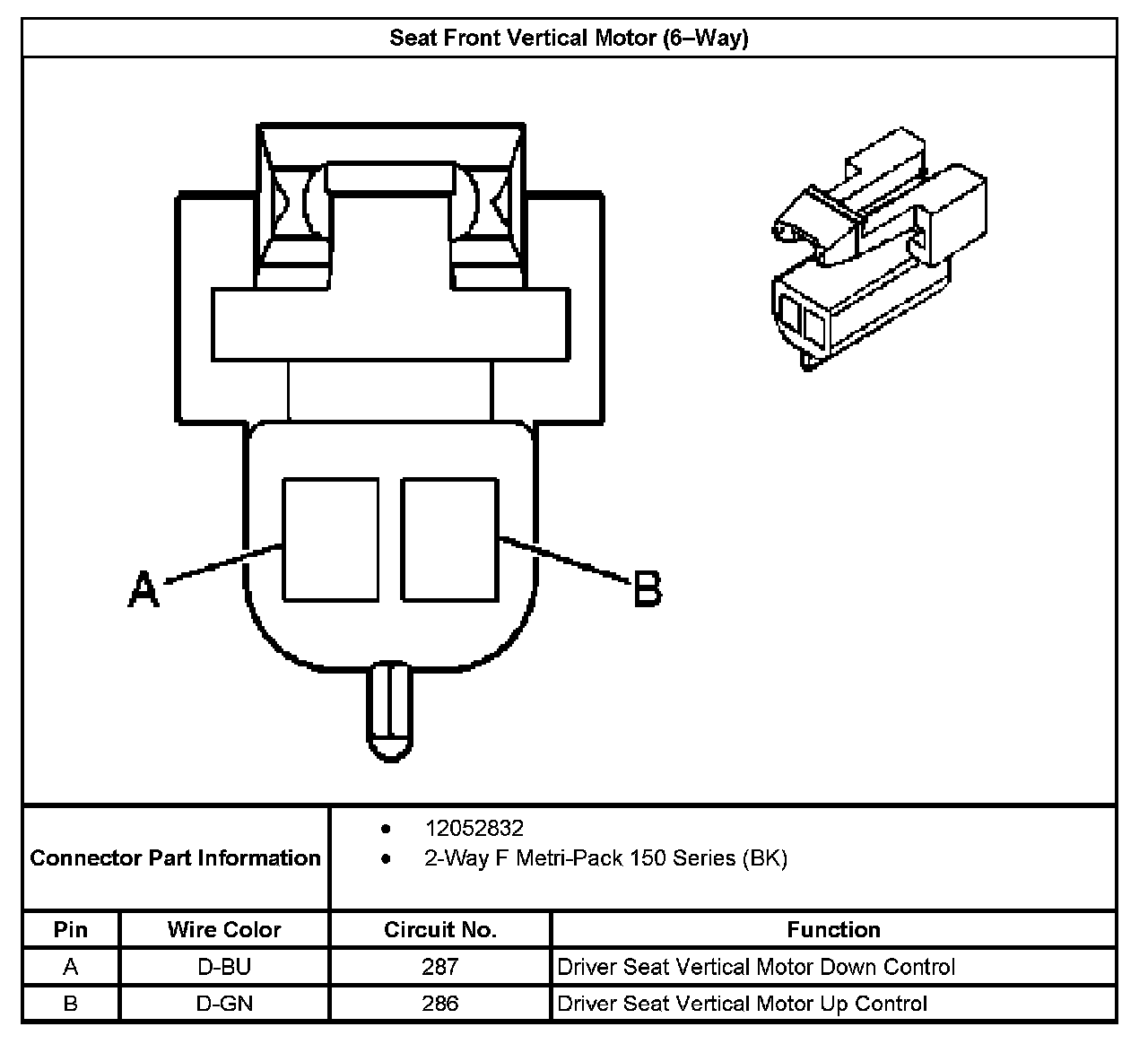

Seat Front Vertical Motor (6-Way):

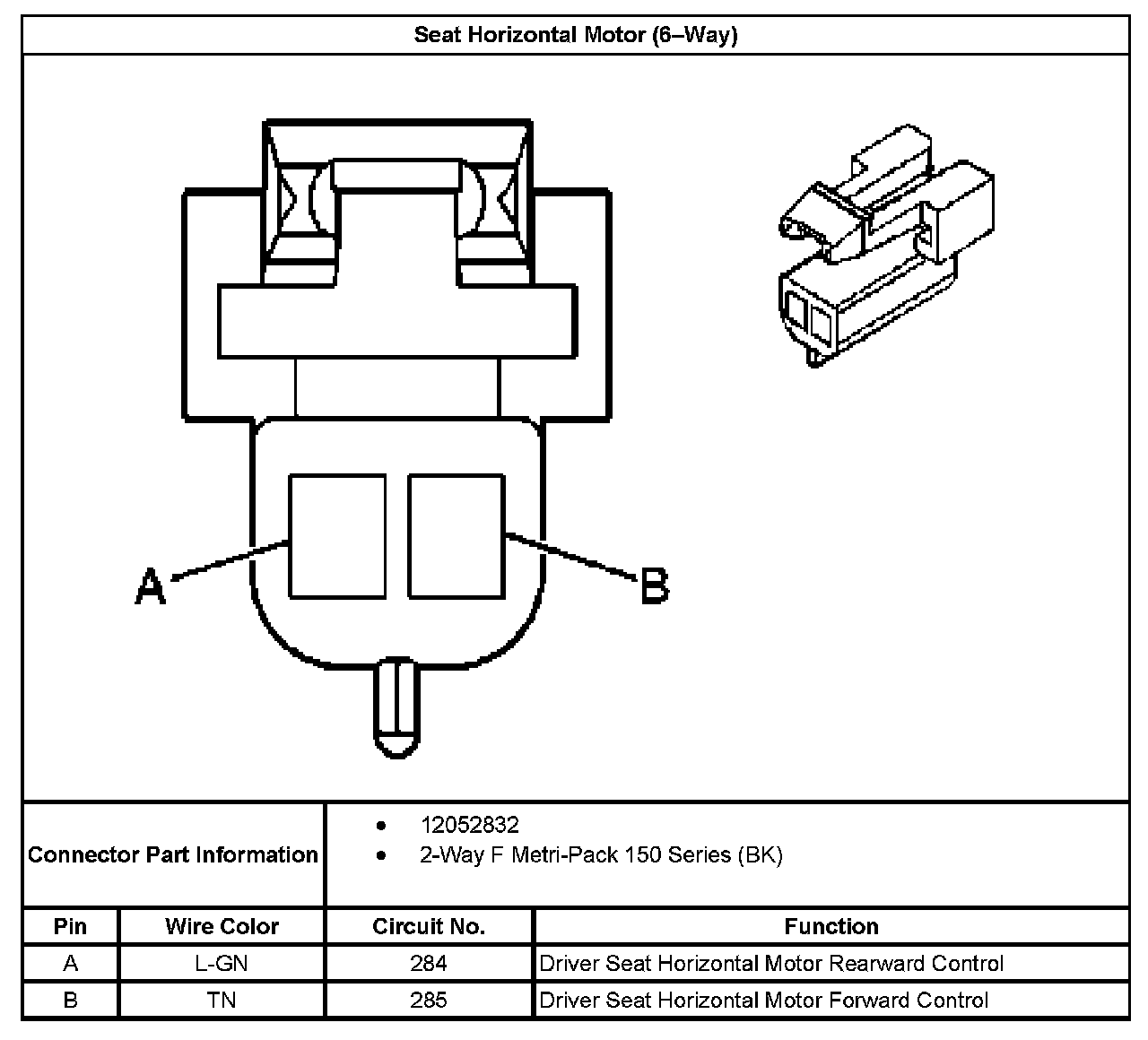

Seat Horizontal Motor (6-Way):
Seat Rear Vertical Motor (6-Way):
Seat Vertical Motor (2-Way):
