Power Trunk / Liftgate Lock Switch
Power Trunk / Liftgate Lock Switch

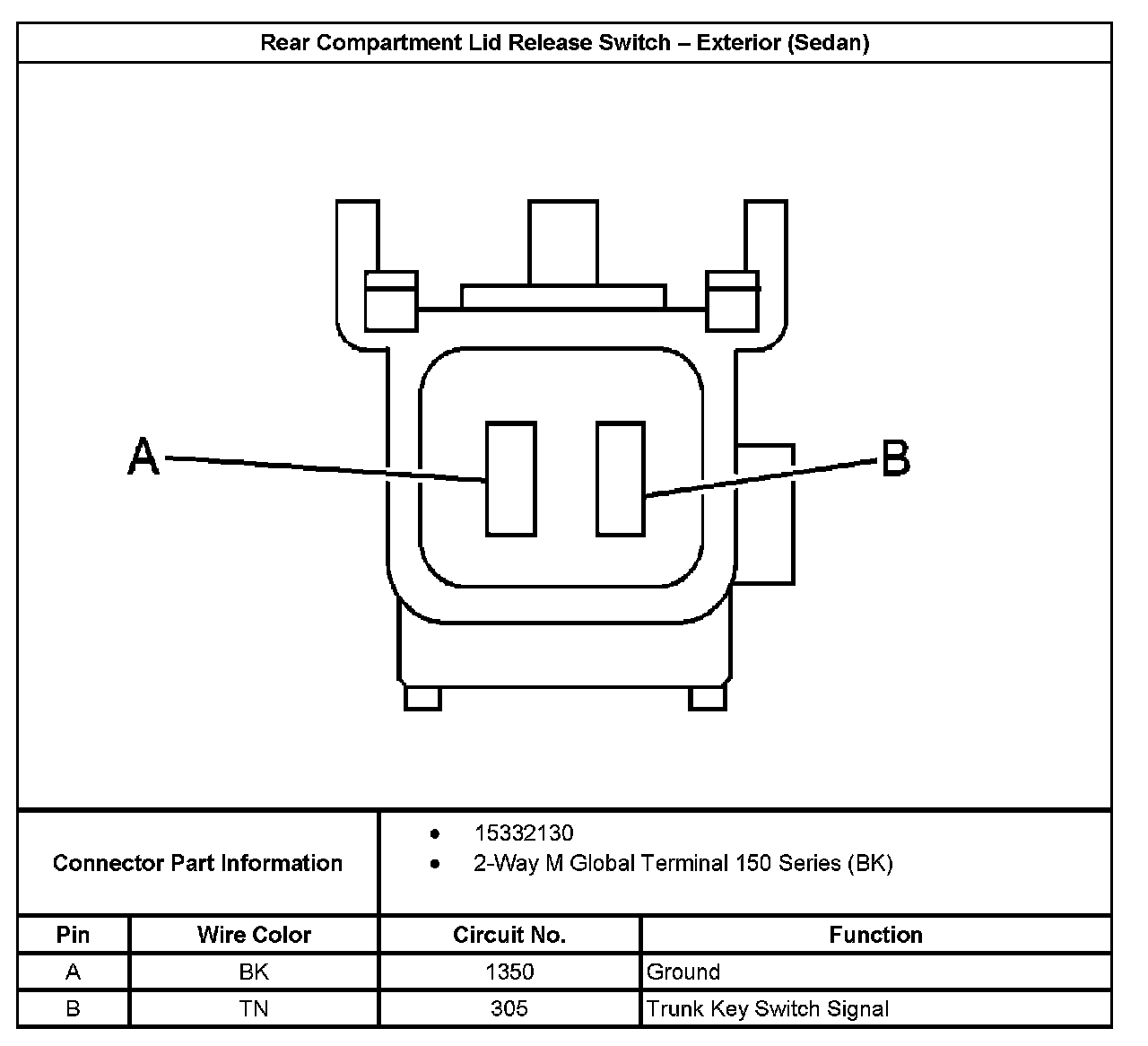

Rear Compartment Lid Release Switch - Exterior (Sedan):

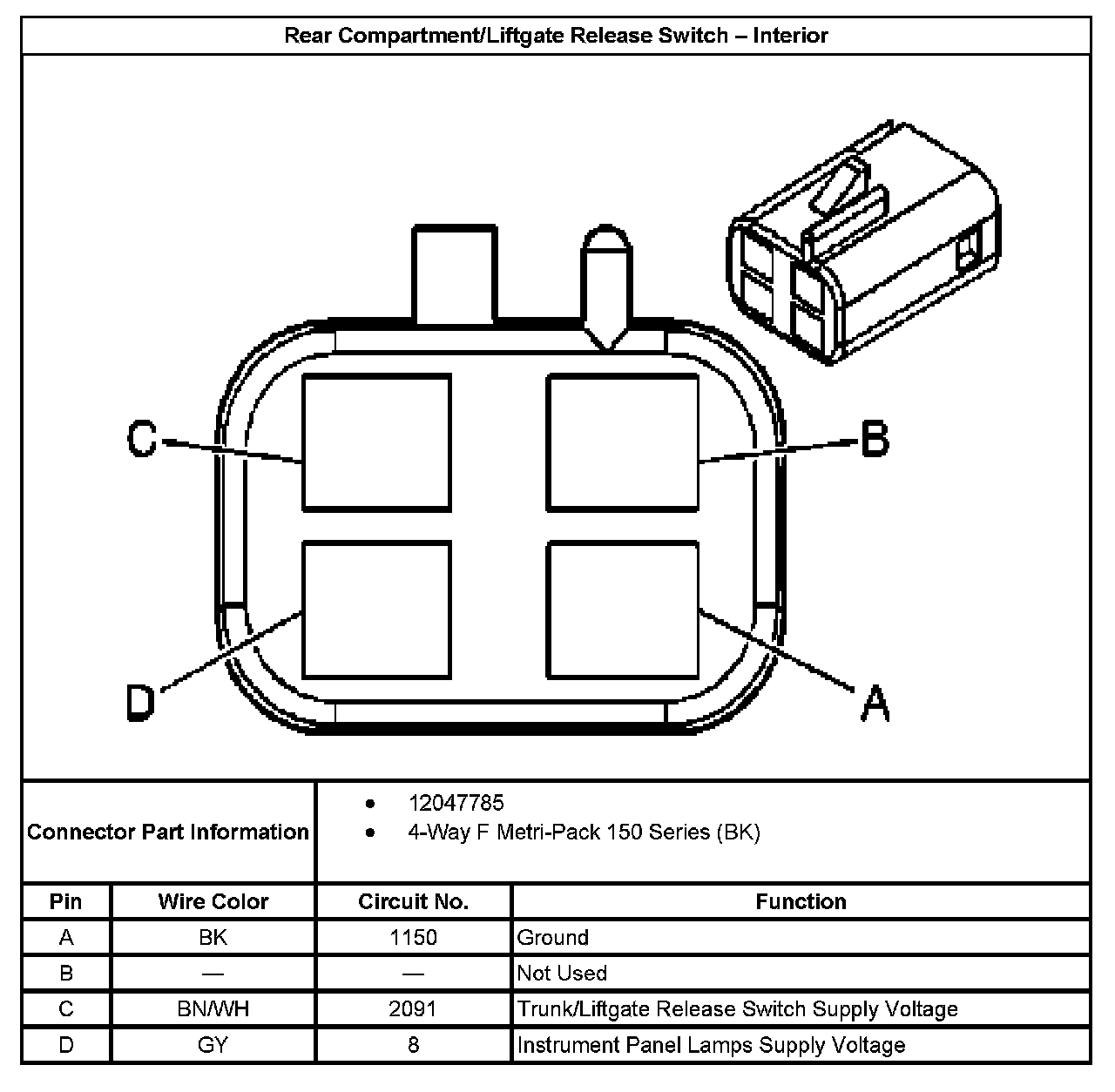

Rear Compartment/Liftgate Release Switch - Interior:
