Home >> Chevrolet >> 2005 >> Malibu L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate Switch

Trunk / Liftgate Switch

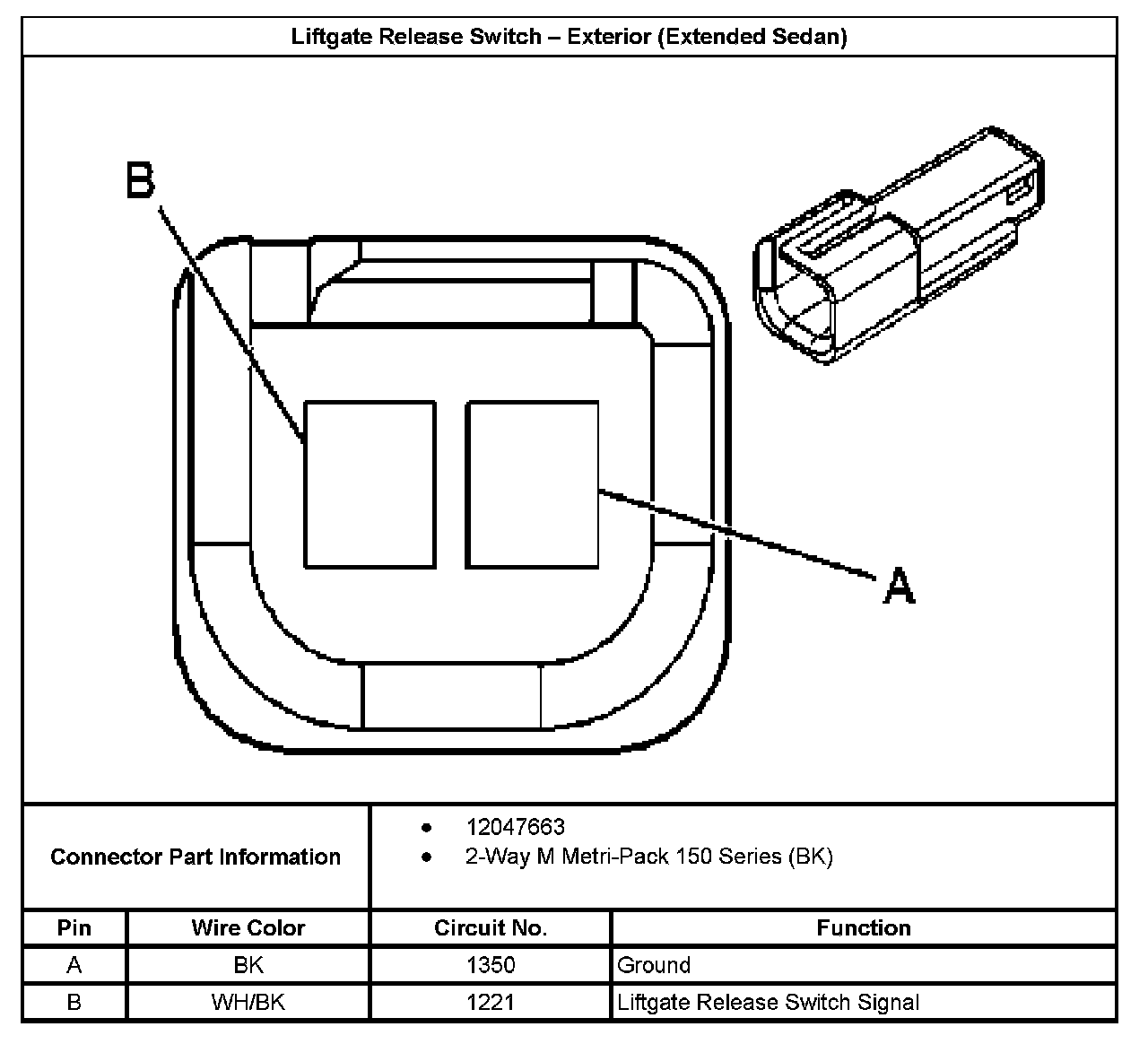

Liftgate Release Switch - Exterior (Extended Sedan):



Rear Compartment/Liftgate Release Switch - Interior:
