Chevrolet
>>
2005
>>
Malibu L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Passenger Compartment Views
>>

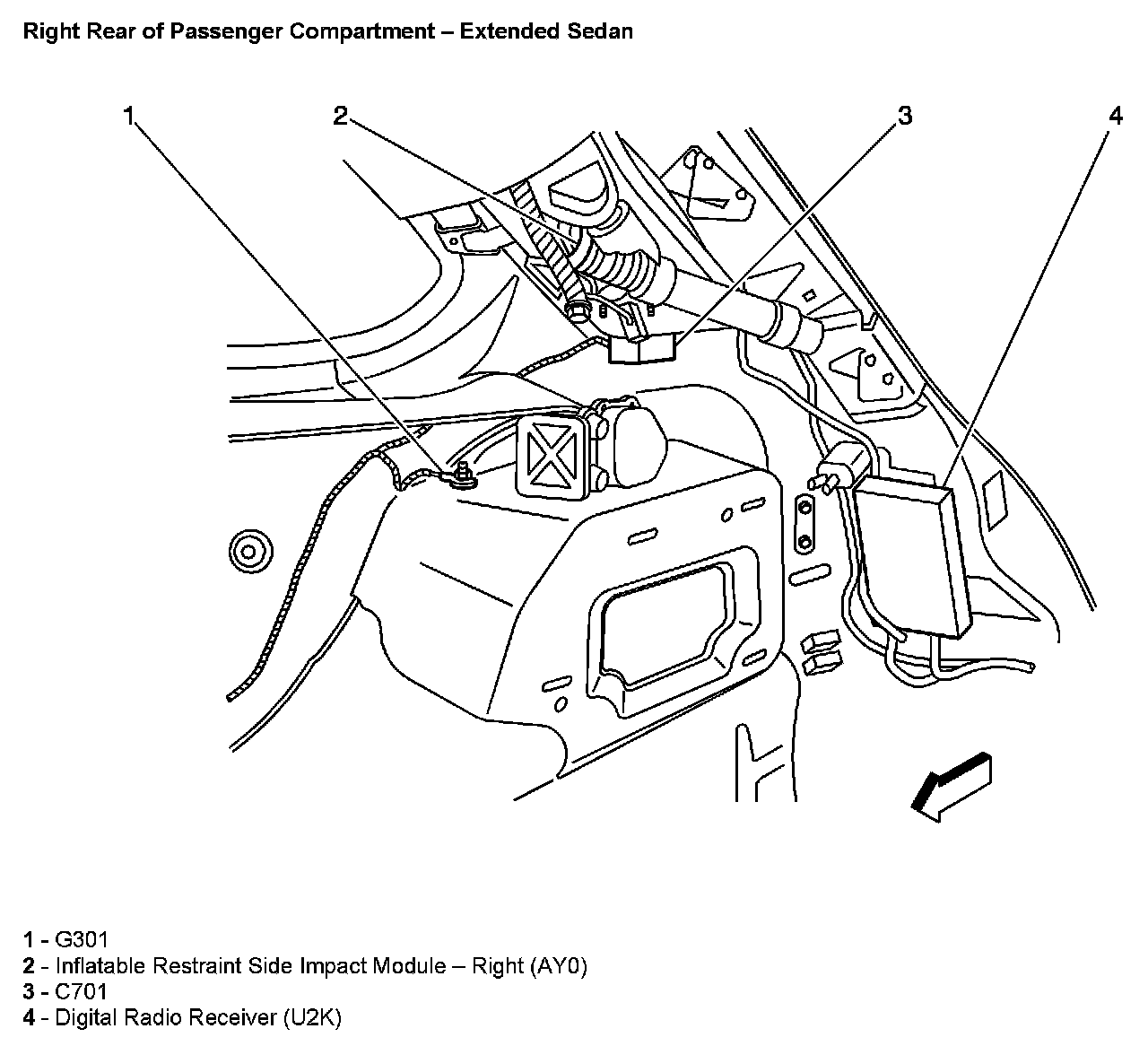

Right Rear of Passenger Compartment - Extended Sedan
Right Rear of Passenger Compartment - Extended Sedan
Right Rear of Passenger Compartment - Extended Sedan:
