Inside Left Rear Quarter Panel - Sedan

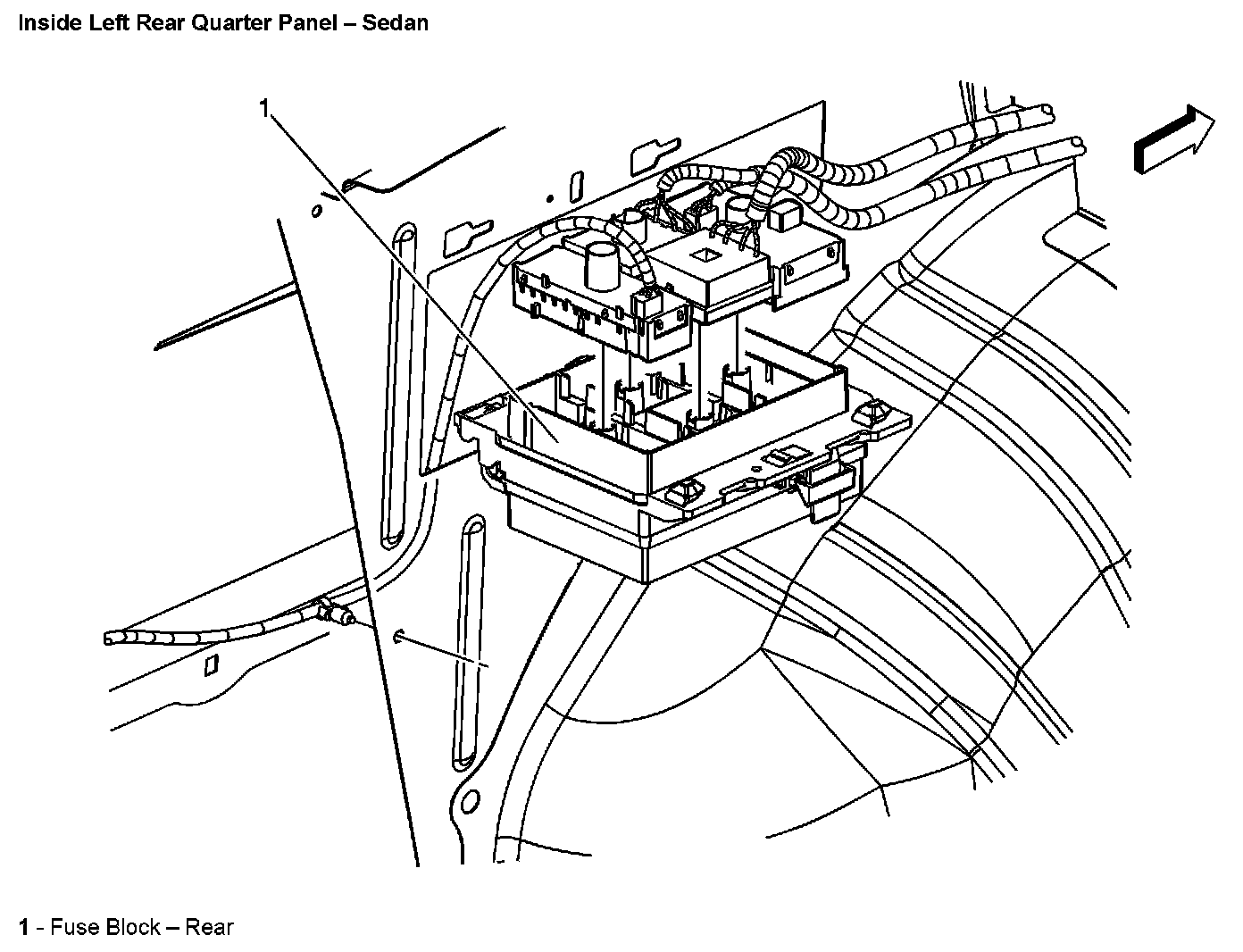

Inside Left Rear Quarter Panel - Sedan:

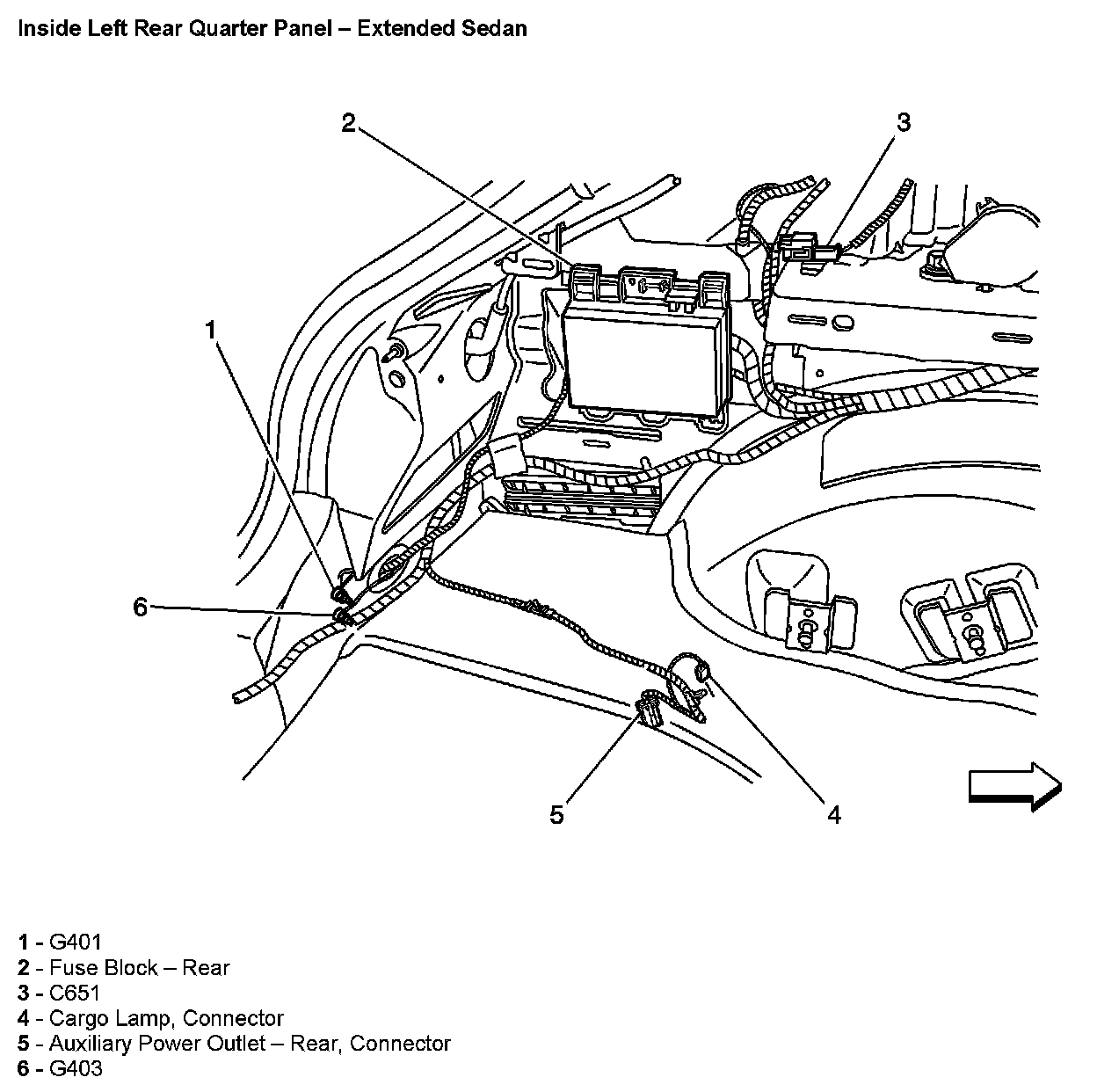

Inside Left Rear Quarter Panel - Extended Sedan:
