Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2005
>>
Malibu V6-3.5L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Fuse Block - Rear C4
Fuse Block - Rear C4

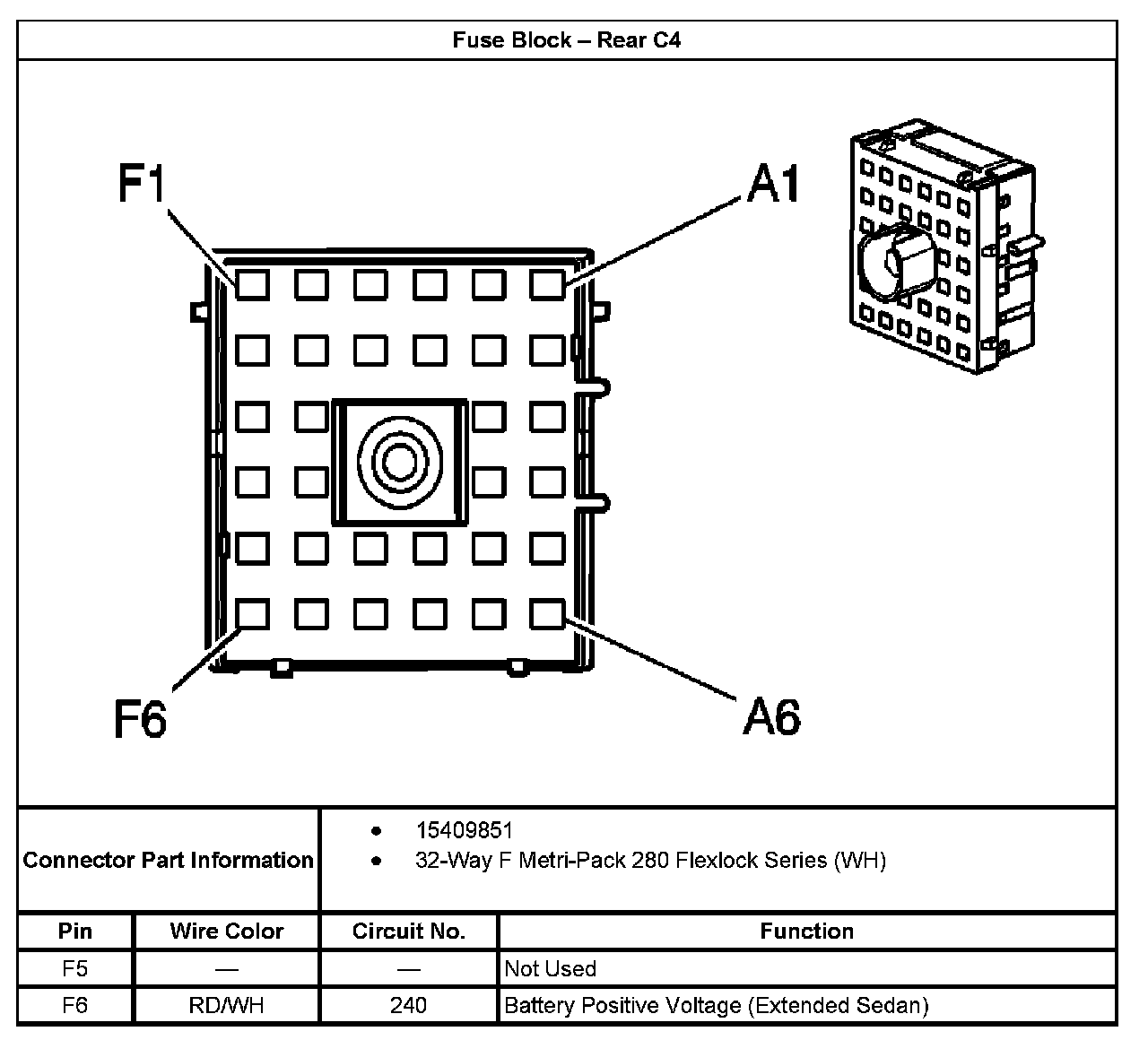

Fuse Block - Rear C4 Part 1:

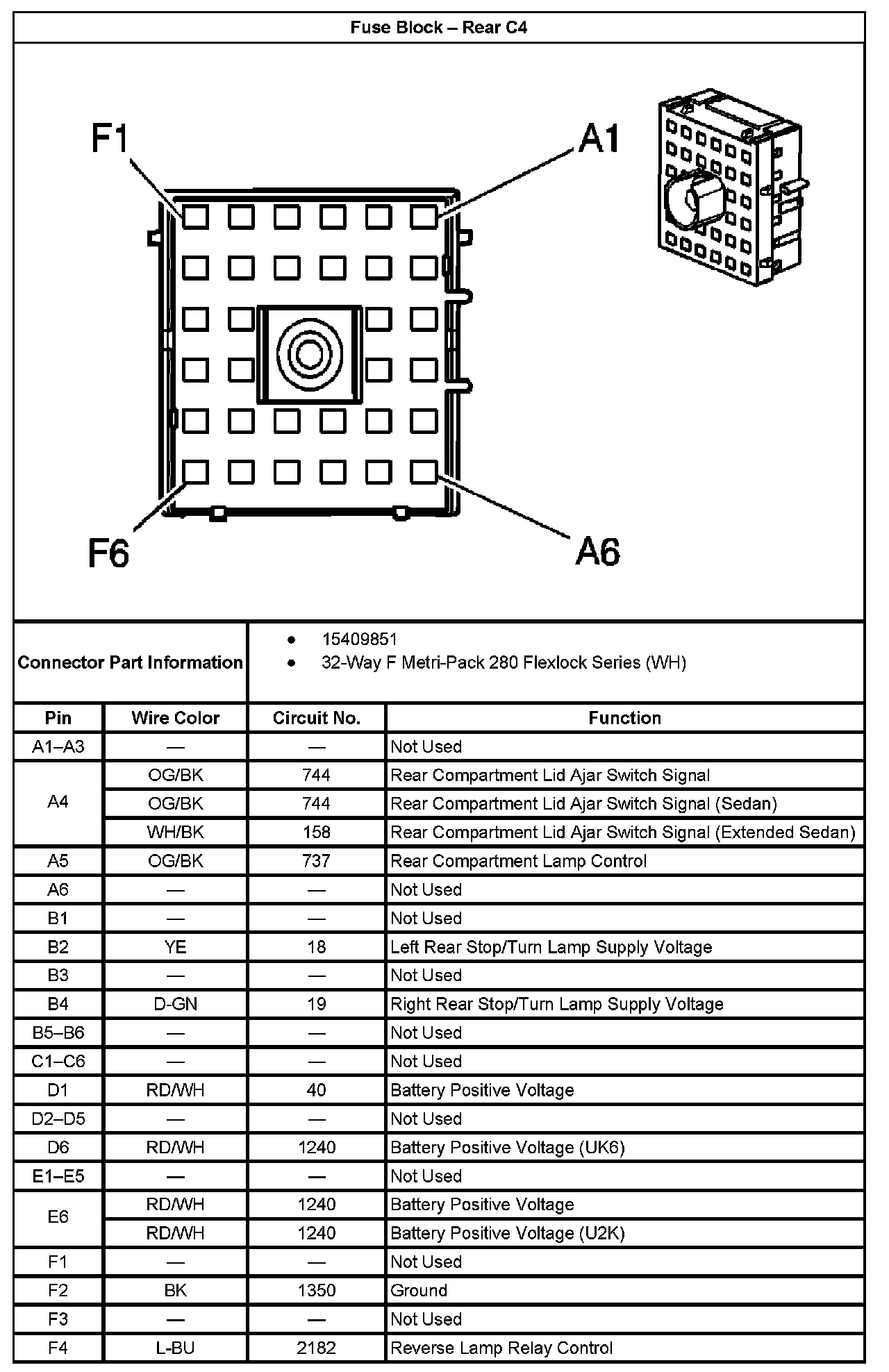

Fuse Block - Rear C4 Part 2:
