Power Seat Switch
Power Seat Switch

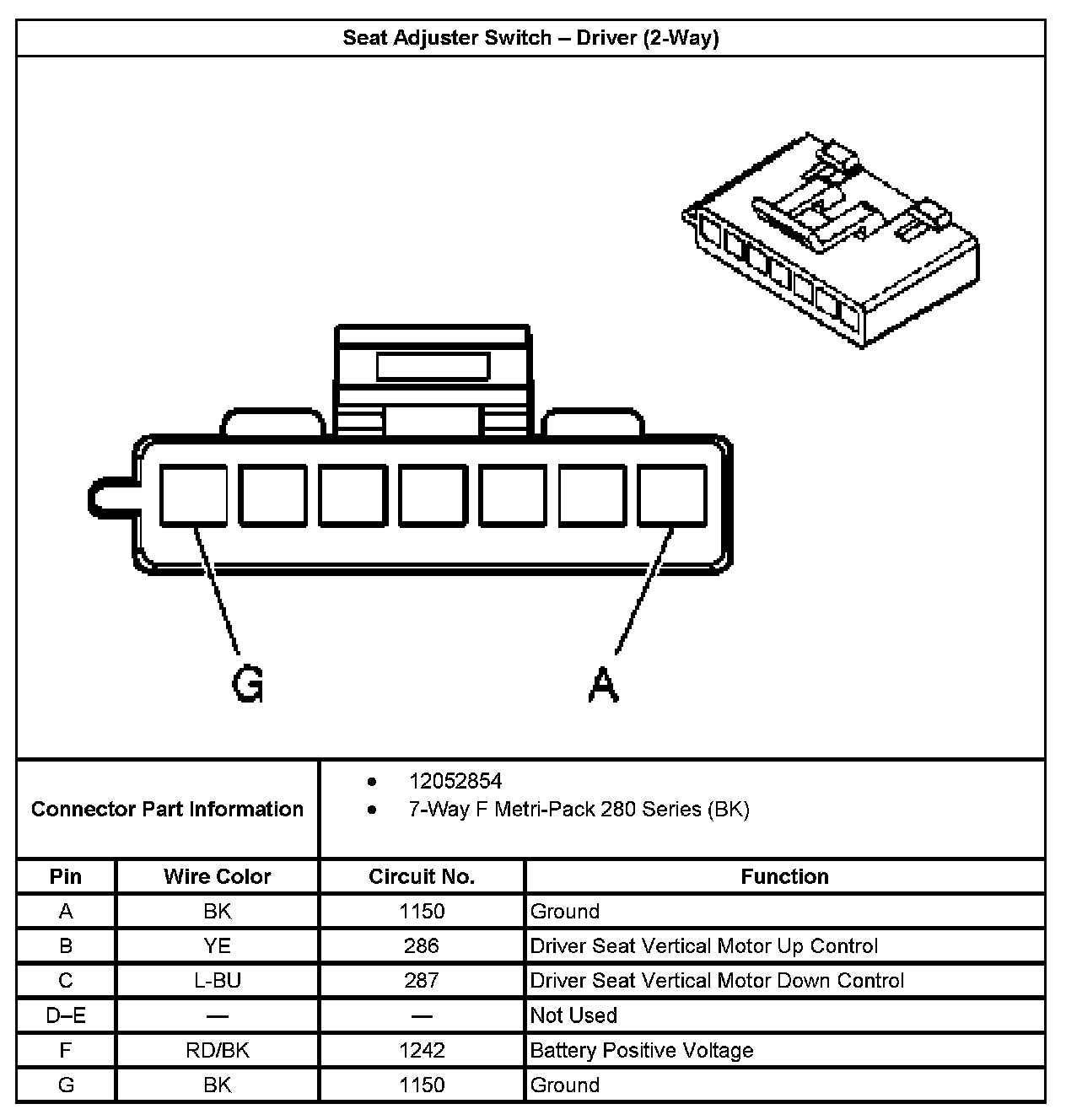

Seat Adjuster Switch - Driver (2-Way):
Seat Adjuster Switch - Driver (6-Way):
