Trunk / Liftgate Latch
Trunk / Liftgate Latch

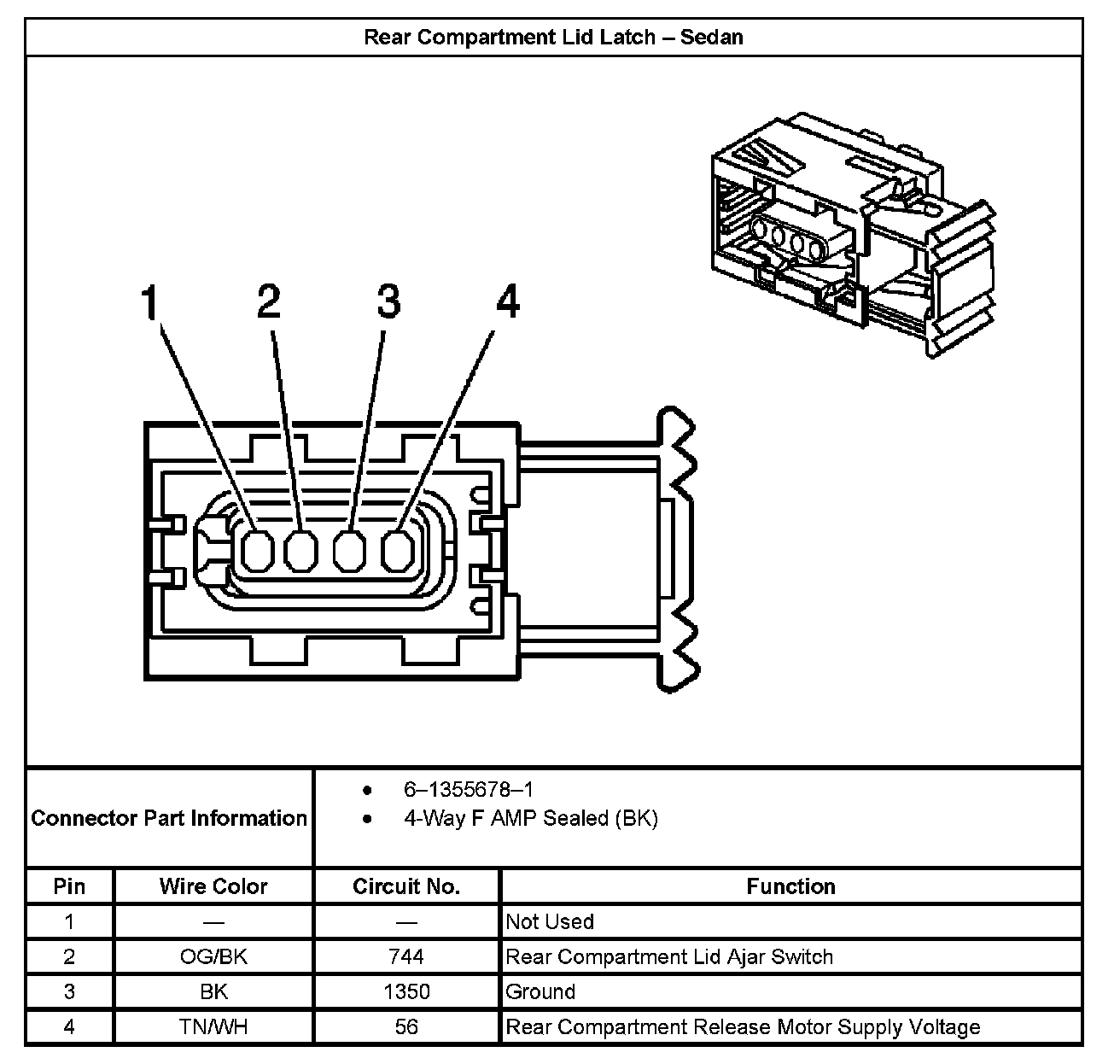

Rear Compartment Lid Latch - Sedan:

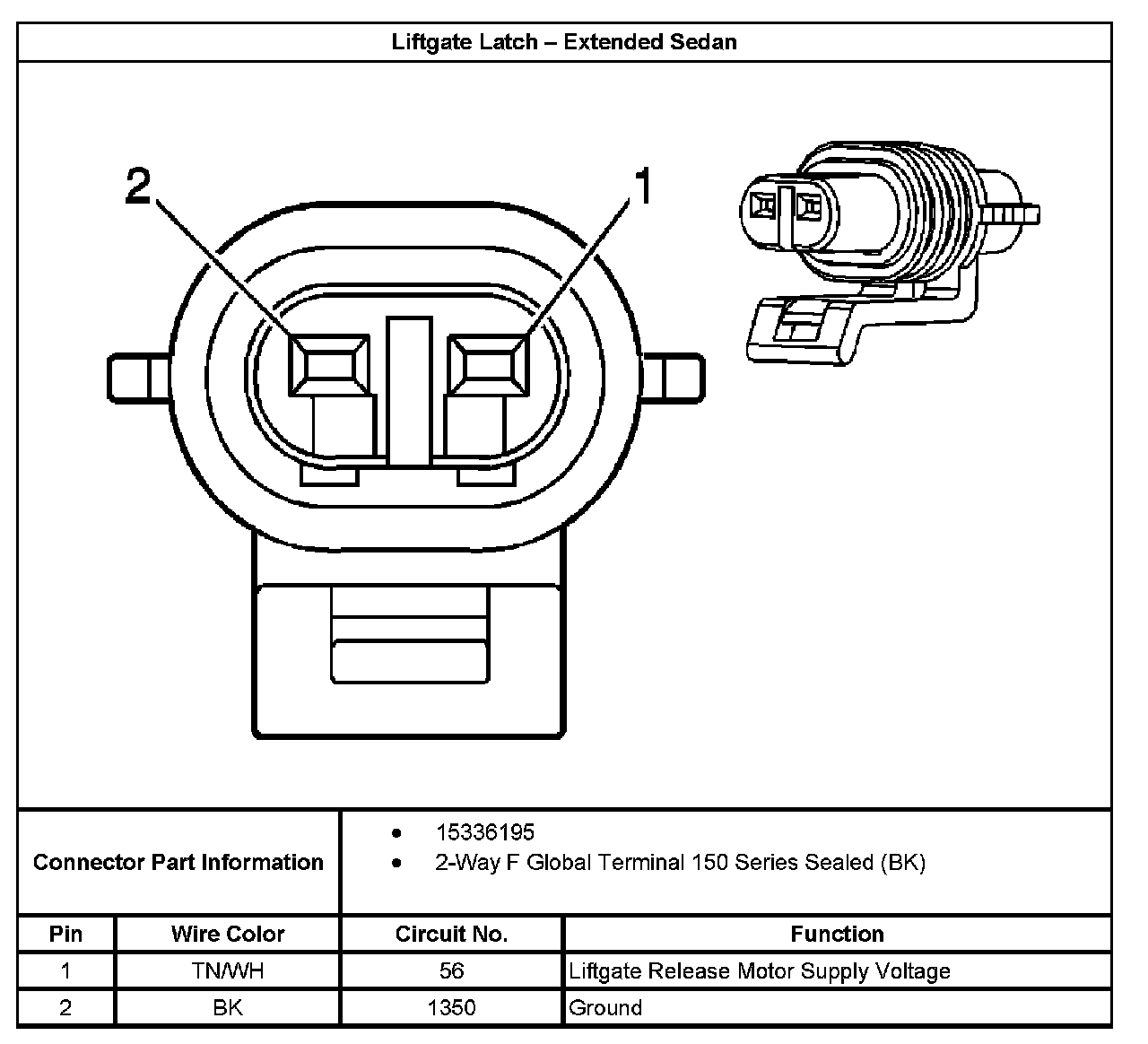

Liftgate Latch - Extended Sedan:
