Instrument Panel (IP) - Trim Panel Replacement - Center

Trim Panel Replacement - Instrument Panel (I/P) Center

Removal Procedure

1. Remove the instrument panel (I/P) left trim panels.
2. Remove the I/P right trim panels.
3. Remove the I/P compartment.
4. Remove the knee bolster.






Important: The I/P center trim bezel is painted and can be damaged. Pull on the bottom of the bezel to disengage the lower clips first or damage to the HVAC control module could occur.

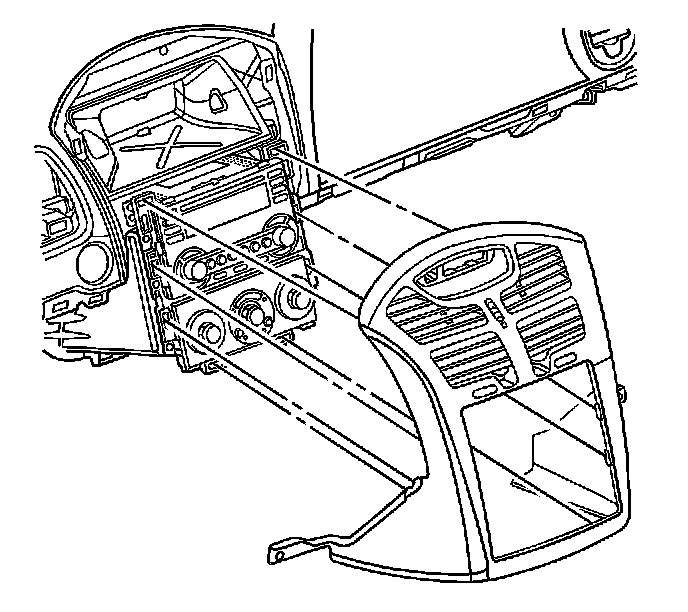

5. Remove the I/P center trim bezel.
6. Remove the hazard switch.

Installation Procedure

1. Install the hazard switch.




2. Install the I/P center trim bezel.
3. Install the knee bolster.
4. Install the I/P compartment.
5. Install the I/P right trim panels.
6. Install the I/P left trim panels.
