Windshield Washer Switch: Diagrams

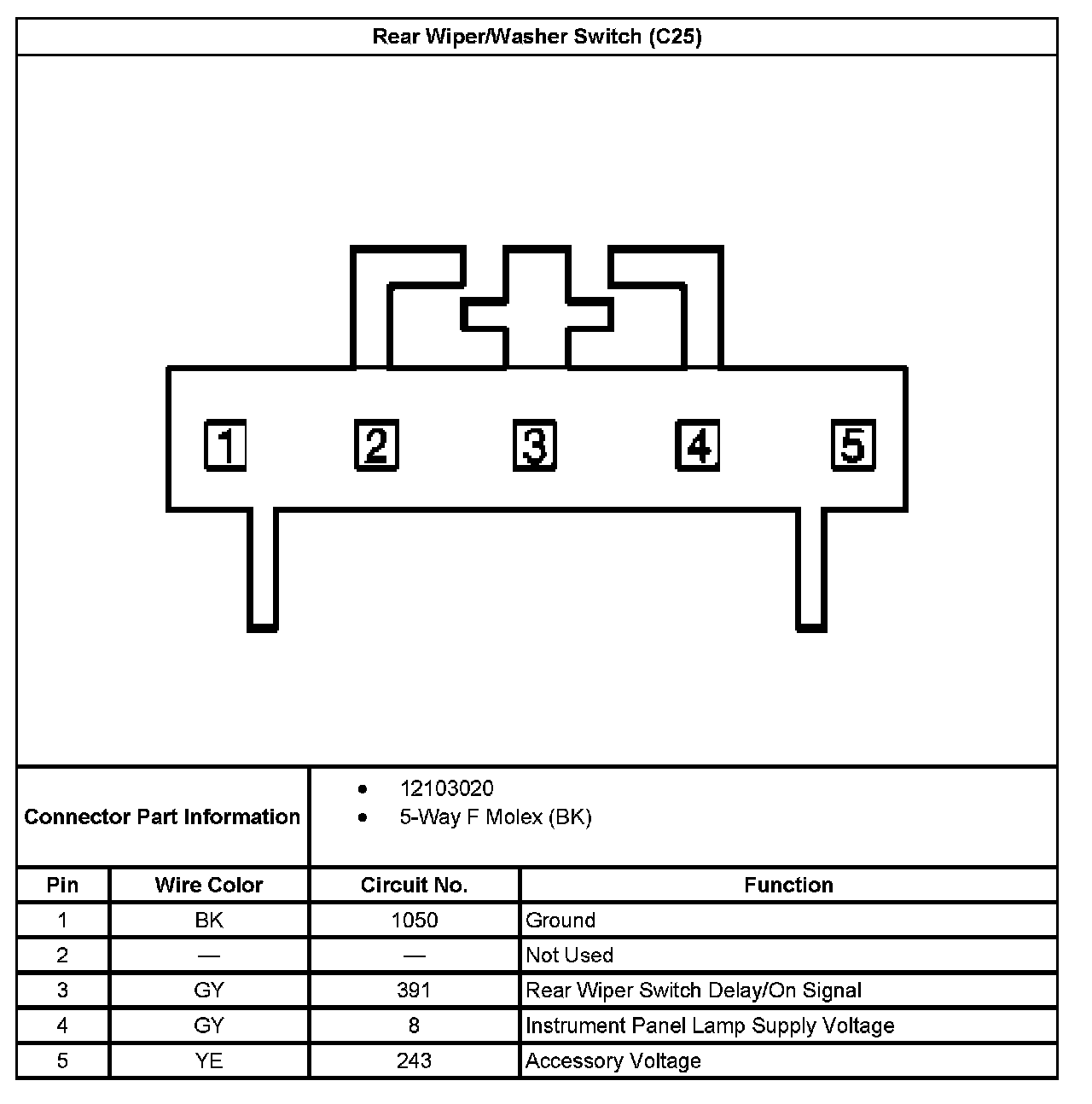

Rear Wiper/Washer Switch (With RPO Code C25):



Windshield Wiper/Washer Switch:
