Home >> Chevrolet >> 2005 >> Malibu V6-3.5L VIN 8 >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Control Module >> Diagrams

Wiper Control Module: Diagrams

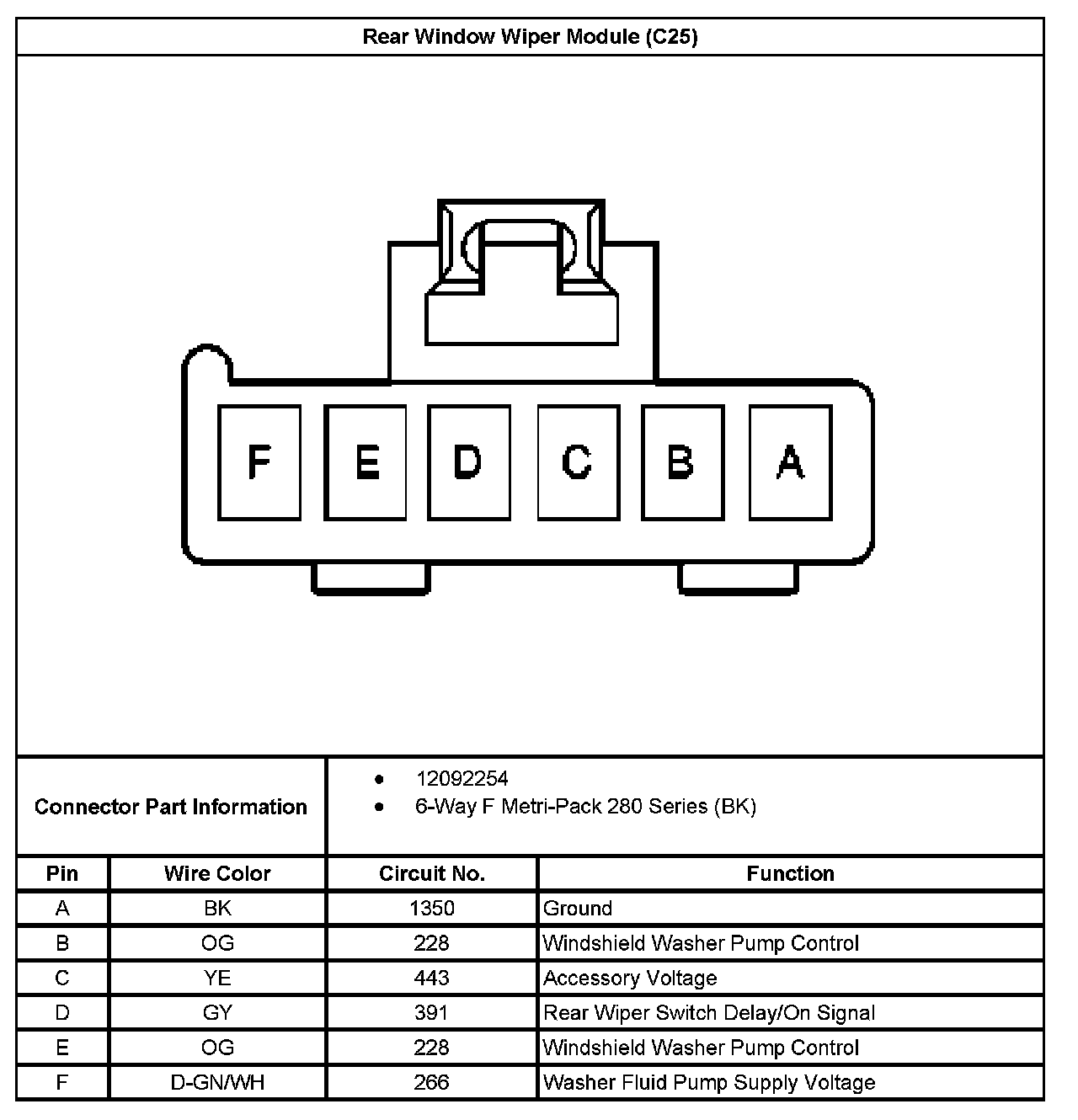

Rear Window Wiper Module (With RPO Code C25):
