P0140
DTC P0140
CIRCUIT DESCRIPTION
Heated oxygen sensors (HO2S) are used for fuel control and post catalyst monitoring. Each HO2S compares the oxygen content of the surrounding air with the oxygen content of the exhaust stream. When the vehicle is first started the powertrain control module (PCM) operates in an Open Loop mode, ignoring the HO2S signal voltage when calculating the air-to-fuel ratio. The PCM supplies the HO2S with a reference, or bias, voltage of about 450 mV. The HO2S generates a voltage within a range of 0-1,000 mV that fluctuates above and below bias voltage once the sensor has reached operating temperature. High HO2S voltage output indicates a rich fuel mixture; low HO2S voltage output indicates a lean mixture. Heating elements inside the HO2S minimize the time required for the sensors to reach operating temperature, and provide an accurate voltage signal. The HO2S 2 is used for post catalyst monitoring. If the PCM detects that the HO2S 2 voltage remains within the bias voltage range, DTC P0140 will set.
Each HO2S 2 has the following circuits:
- An HO2S 2 high signal circuit
- An HO2S 2 low signal circuit
- An HO2S 2 heater ignition voltage circuit
- An HO2S 2 heater low control circuit
DTC DESCRIPTOR
This diagnostic procedure support the following DTC:
DTC P0140 HO2S Circuit Insufficient Activity Bank 1 Sensor 2
CONDITIONS FOR RUNNING THE DTC
The following conditions must be met:
- DTCs P0036, P0101, P0102, P0103, P0107, P0108, P0112, P0113, P0116, P0117, P0118, P0121, P0122, P0123, P0125, P0128, P0141, P0201, P0202, P0203, P0204, P0205, P0206, P0442, P0443, P0446, P0449, P0452, P0453, P0455, P0496 are not set.
- DTCs P2A01, P0401 (where applicable), and P0420 are not commanding fuel.
- The system voltage is between 9-18 volts.
- The scan tool special functions are not active.
This vehicle has two methods to enable and run this diagnostic, called regular test and fast pass test.
Fast Pass Test
The Engine Run Time parameter is less than 1 minute and 30 seconds.
Or
A cold start condition has been detected, identified by the following conditions:
- The Start Up ECT parameter is less than 35°C (95°F).
- The Start Up IAT parameter is less than 35°C (95°F).
- The difference between the Start Up ECT parameter and the Start Up IAT parameter is less than 6°C (10.8°F).
Regular Test
If the fast pass test does not report a pass, then the regular test is initiated.
- The Engine Run Time parameter is more than 2 minutes.
- The TP Sensor parameter has changed more than 8 percent at least 2 times.
- The Loop Status parameter is closed.
- The predicted HO2S temperature is more than 0°C (32°F).
CONDITIONS FOR SETTING THE DTC
Fast Pass Test
During the fast pass the HO2S 2 voltage is between 381-525 mV within the first one minute and 30 seconds of engine run time. If the fast pass test does not report a pass then the regular test is initiated.
Regular Test
- During the regular test the HO2S 2 voltage is between 390-520 mV for at least 2 minutes.
- This diagnostic runs once per trip.
ACTION TAKEN WHEN THE DTC SETS
- The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
- The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.
CONDITIONS FOR CLEARING THE MIL/DTC
- The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
- A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
- A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
- Clear the MIL and the DTC with a scan tool.

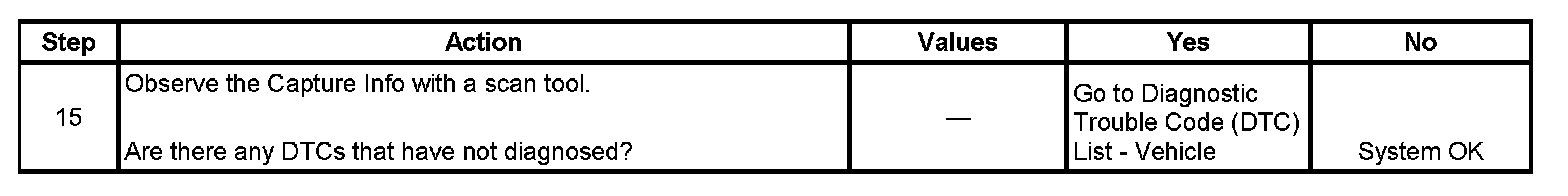

TEST
