Home >> Chevrolet >> 2005 >> Monte Carlo V6-3.4L VIN E >> Repair and Diagnosis >> Lighting and Horns >> Dome Lamp >> Diagrams

Dome Lamp: Diagrams

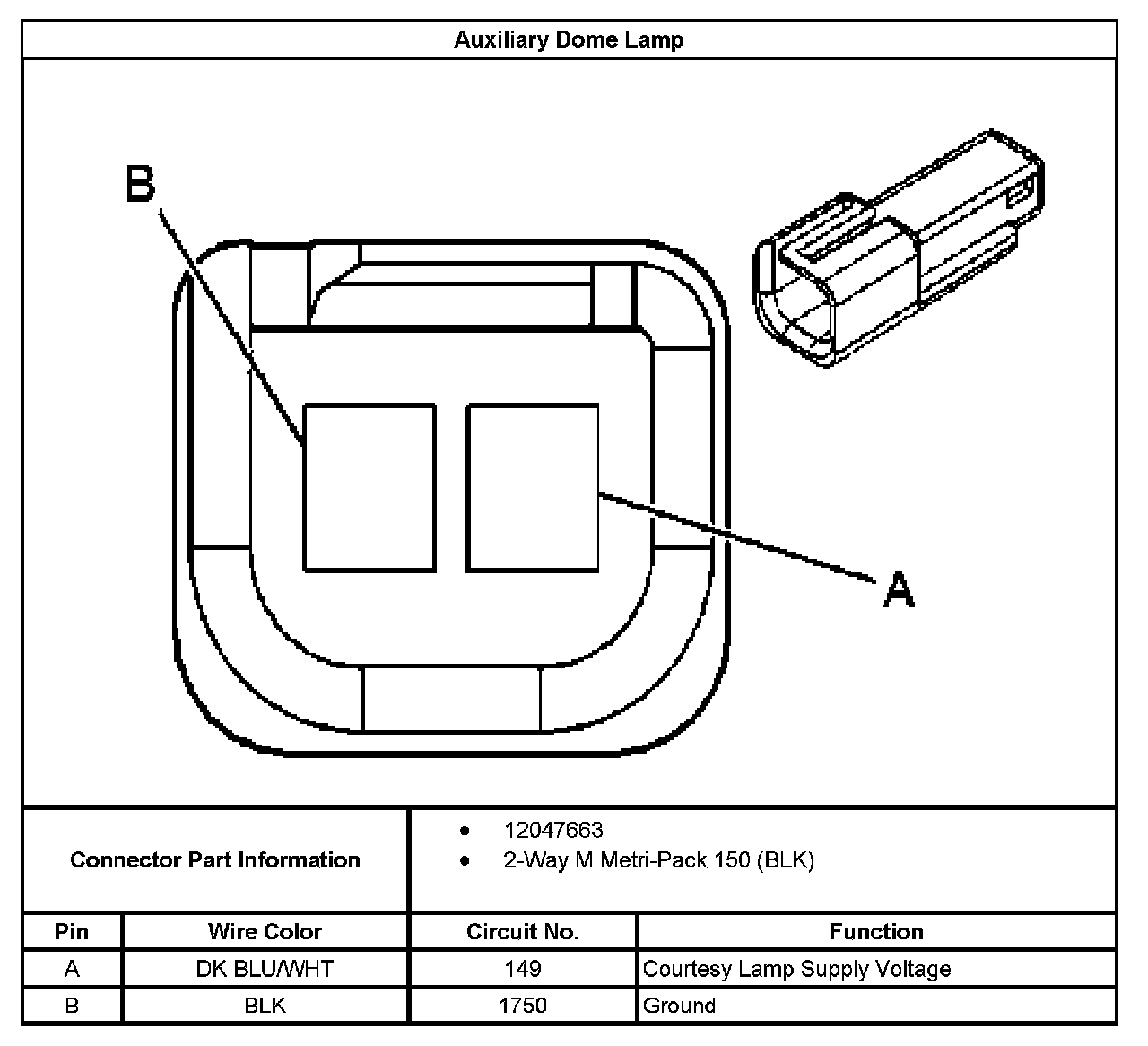

Auxiliary Dome Lamp:
