Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2005
>>
Monte Carlo V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C900 - C999
C900 - C999

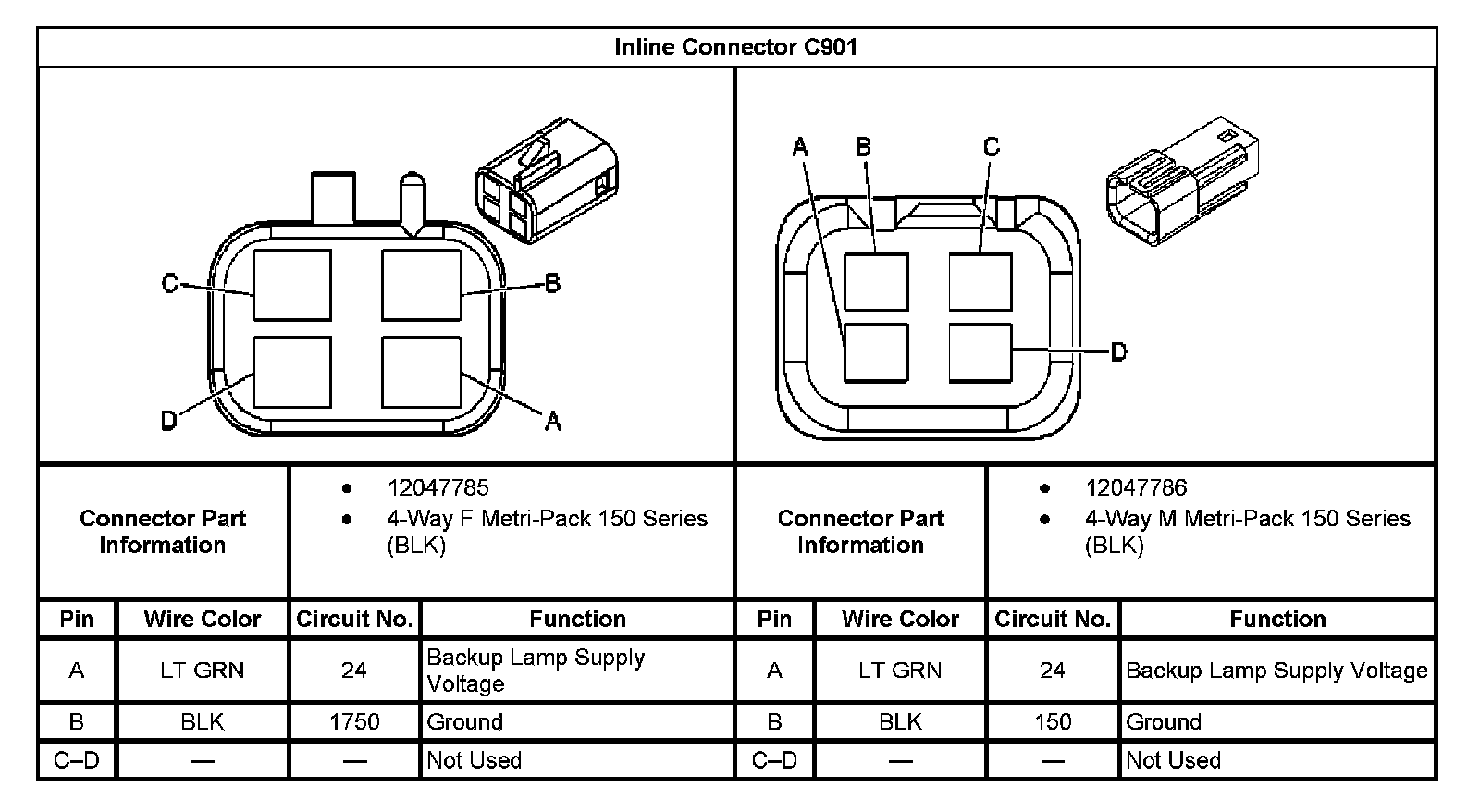

Inline Connector C901:
