Seat Temperature Relay
Seat Temperature Relay

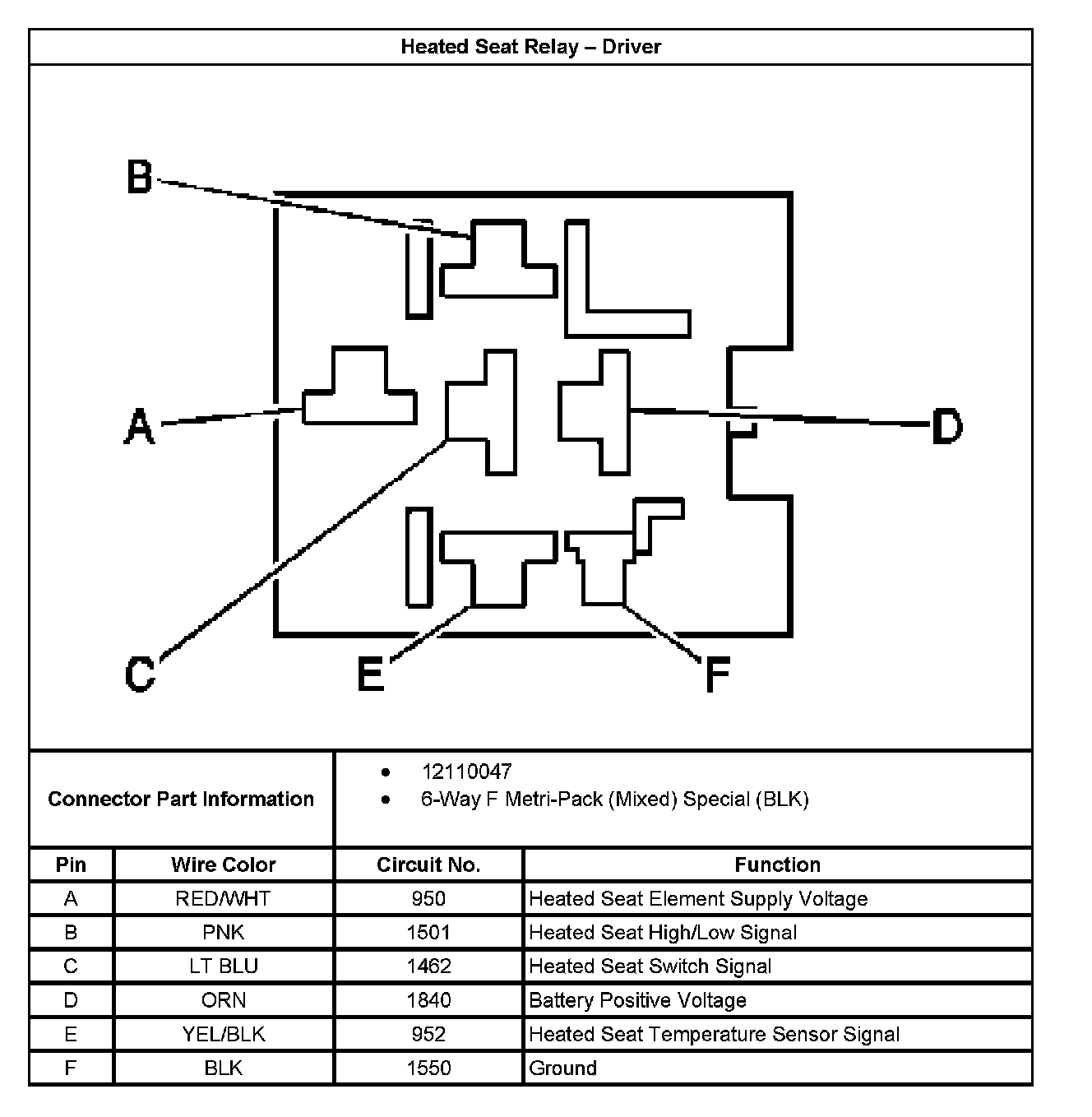

Heated Seat Relay - Driver:

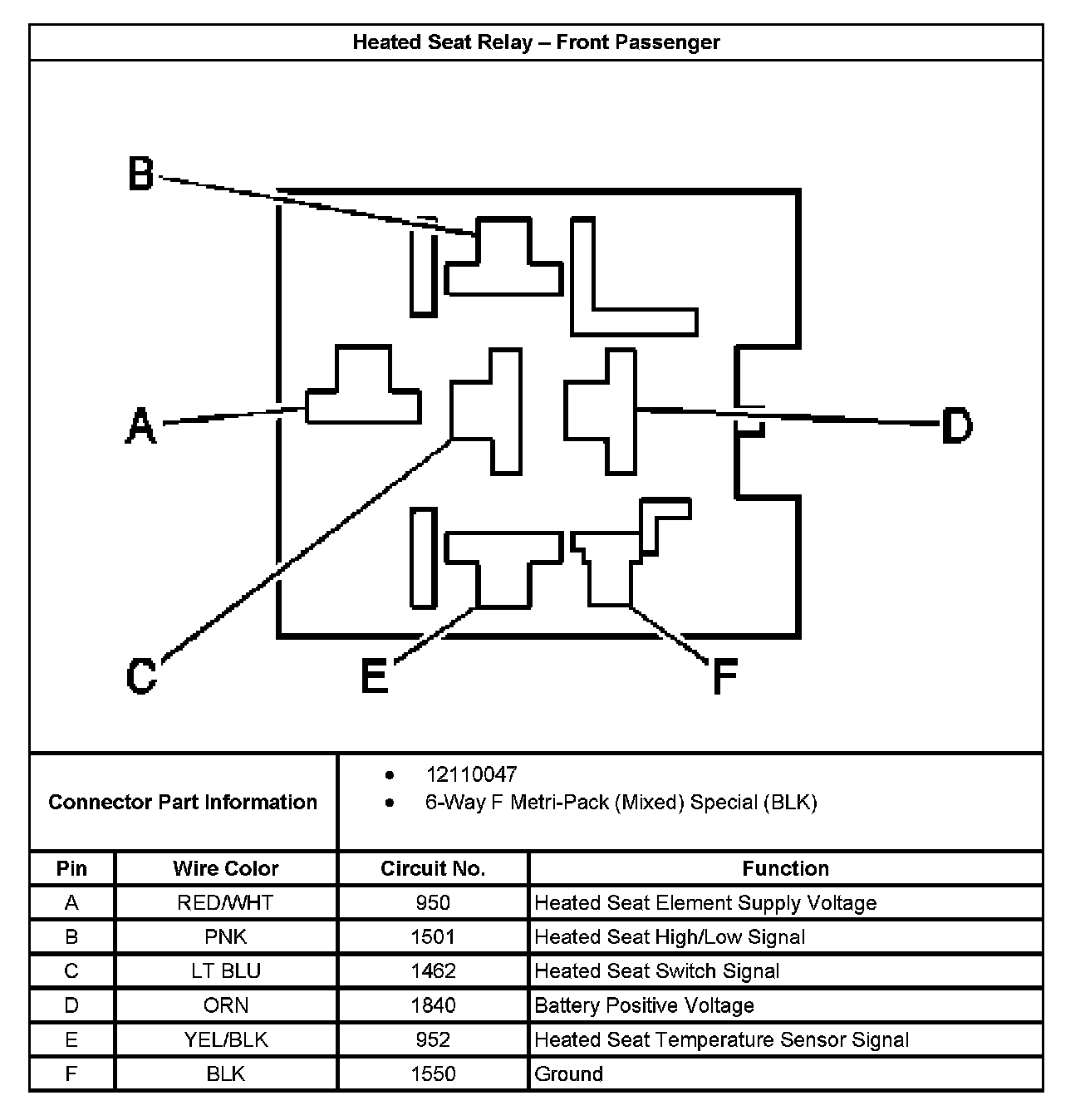

Heated Seat Relay - Front Passenger:
