Antilock Brakes / Traction Control Systems

ABS Schematics

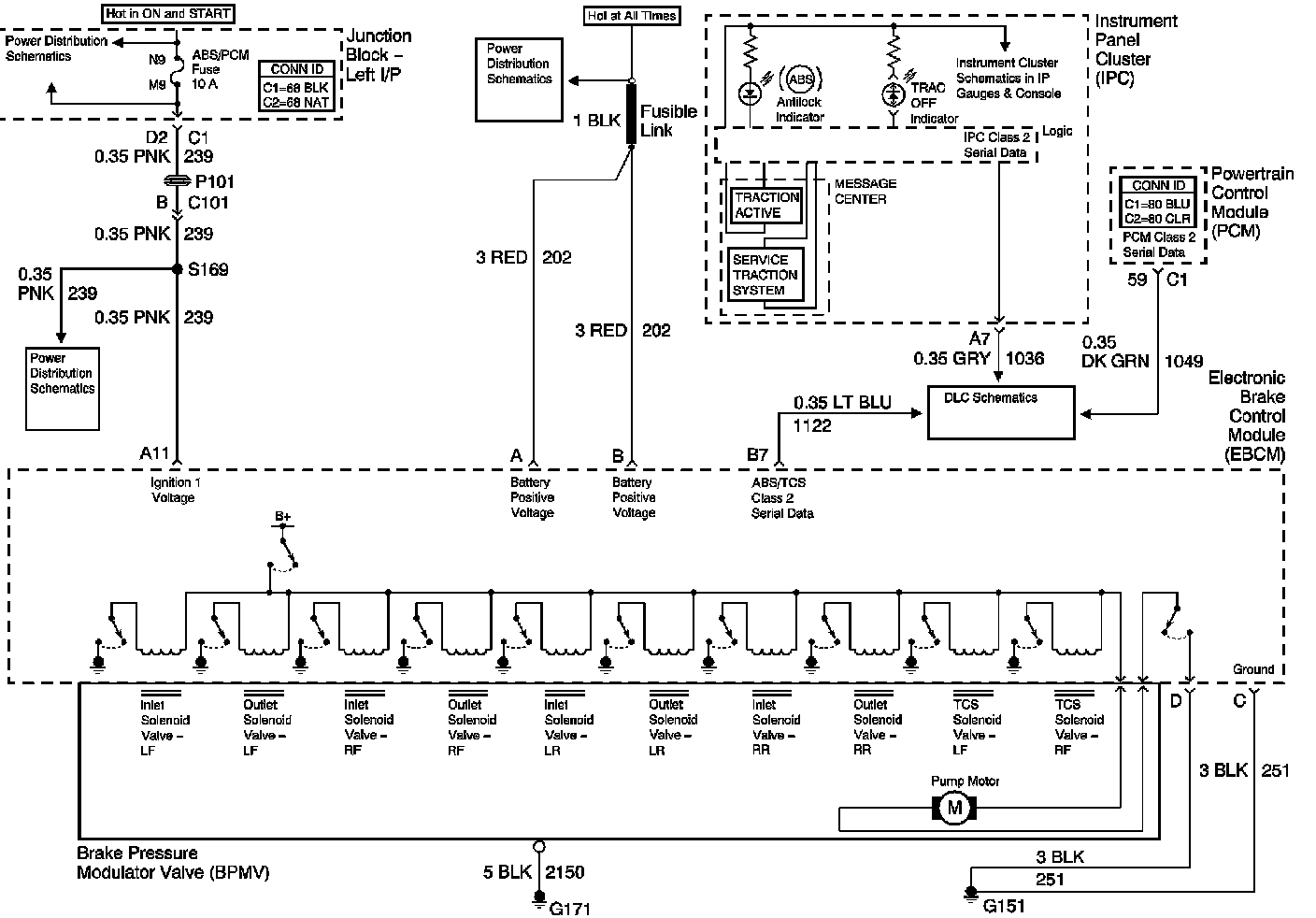

Data Link, Ground, MIL, and Power (JL9)

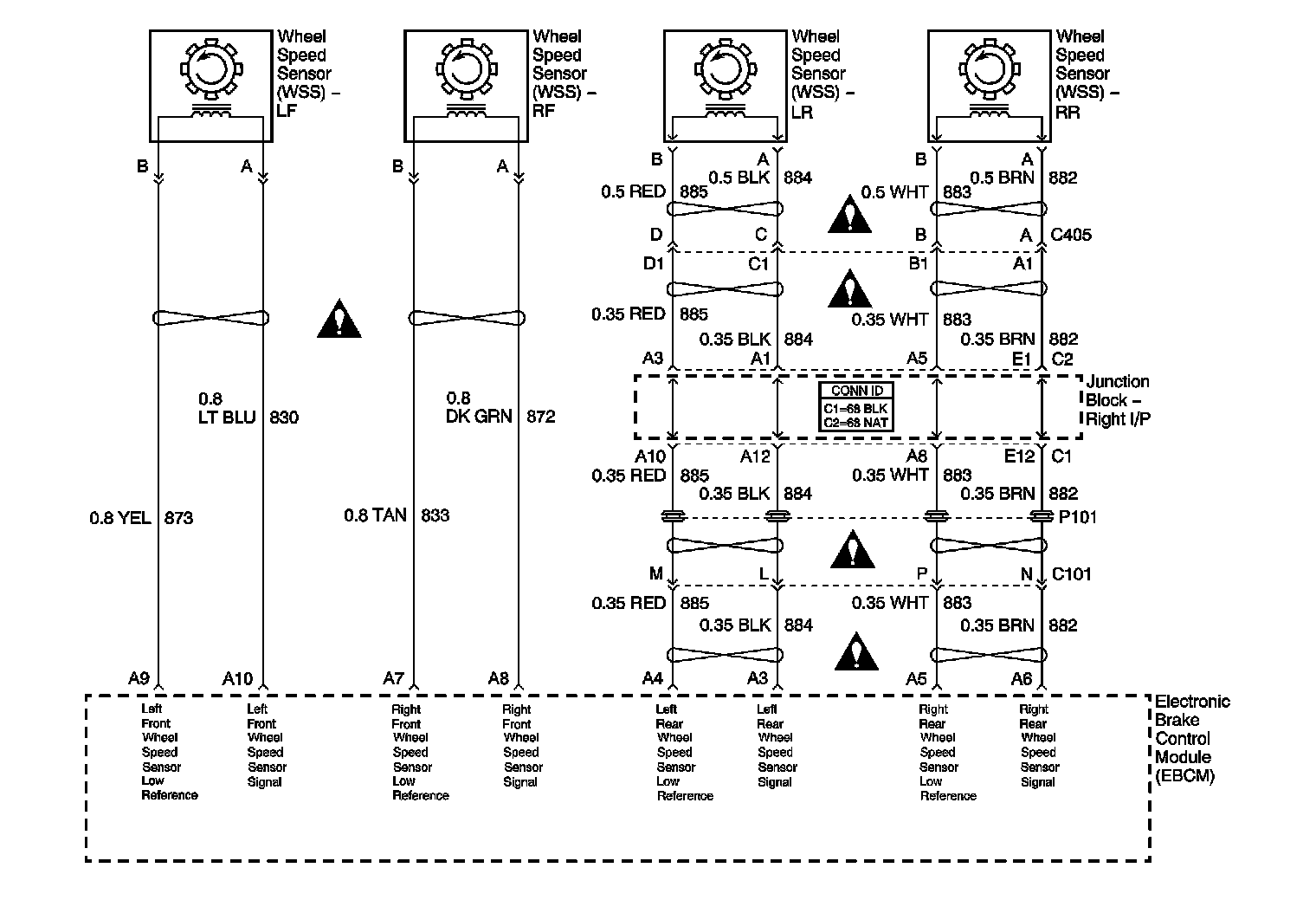

Wheel Speed Sensors

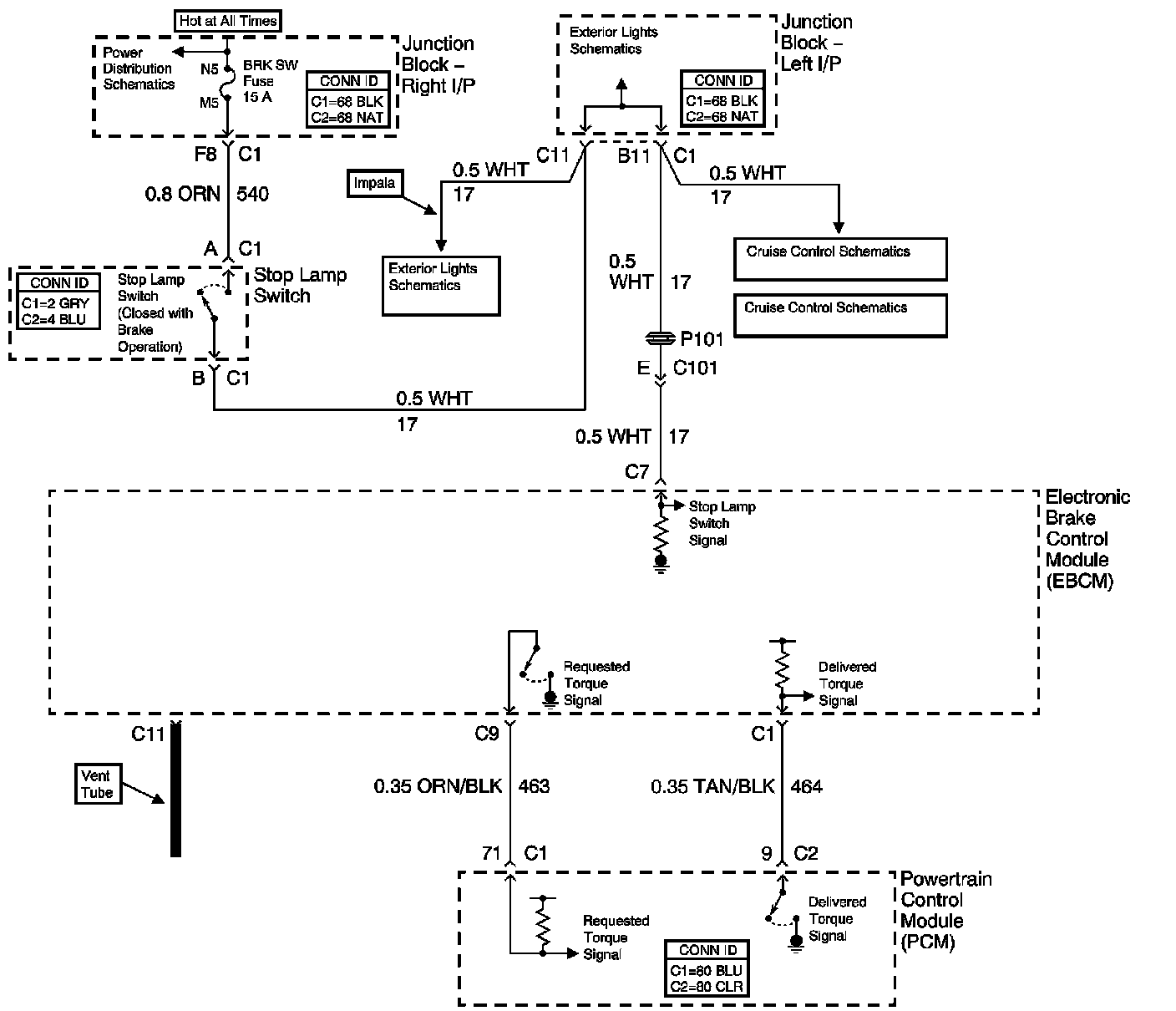

PCM and Stop Lamps Switch

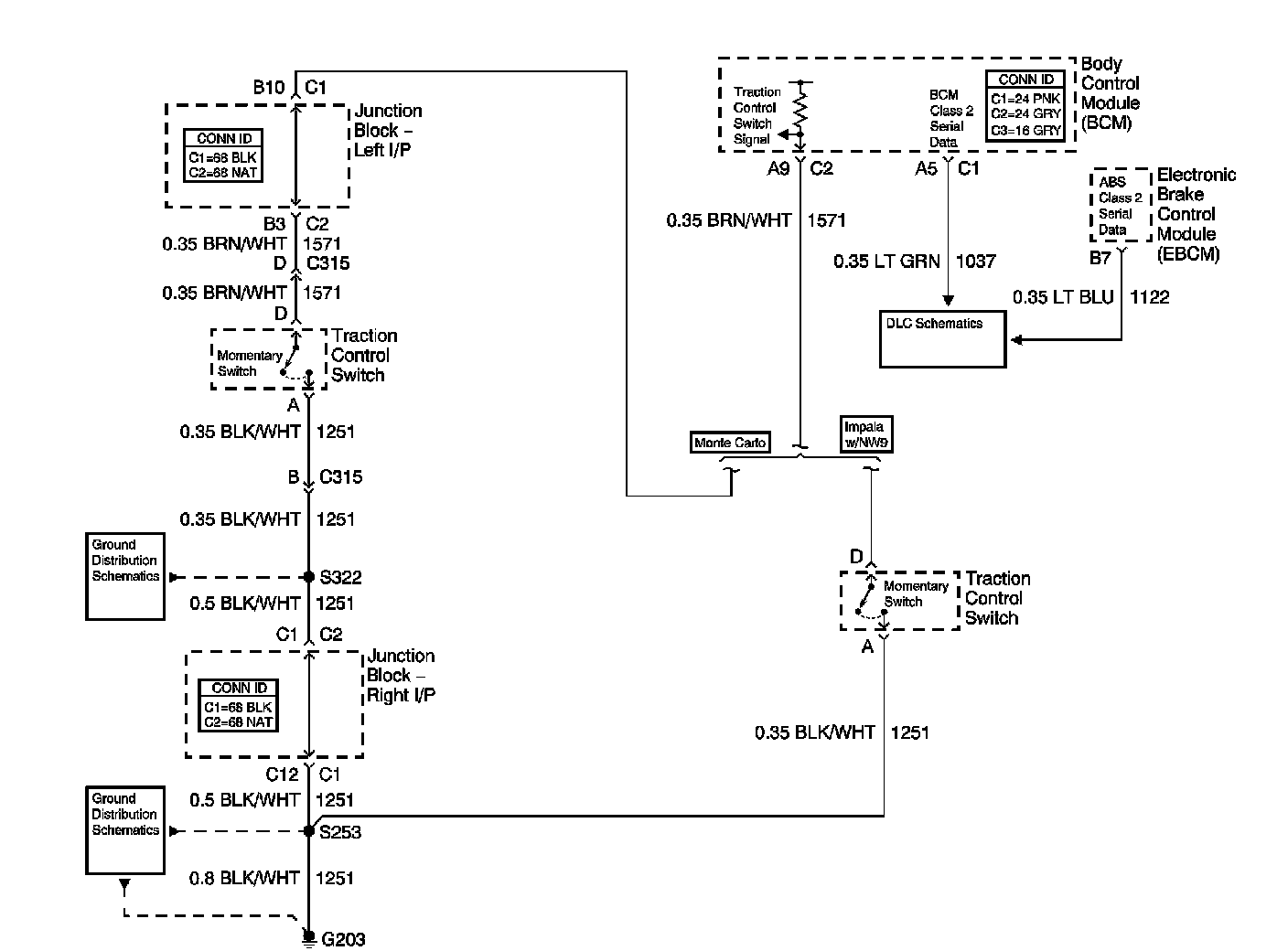

Traction Control Switch

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
