Instrument Panel, Gauges and Warning Indicators: Adjustments

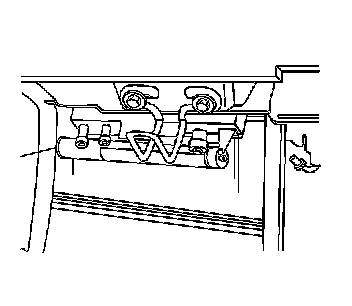

STRIKER ADJUSTMENT - INSTRUMENT PANEL (I/P) COMPARTMENT




1. Open the instrument panel (IP) compartment door.
2. Loosen the IP compartment striker screws.
3. Adjust the IP compartment striker, as required.
4. Tighten the IP compartment striker screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the striker screws to 2 N.m (18 lb in).

5. Close the IP compartment.
6. Inspect the IP compartment for proper fit and operation. Repeat the procedure if required.
