Auxiliary Power Outlet

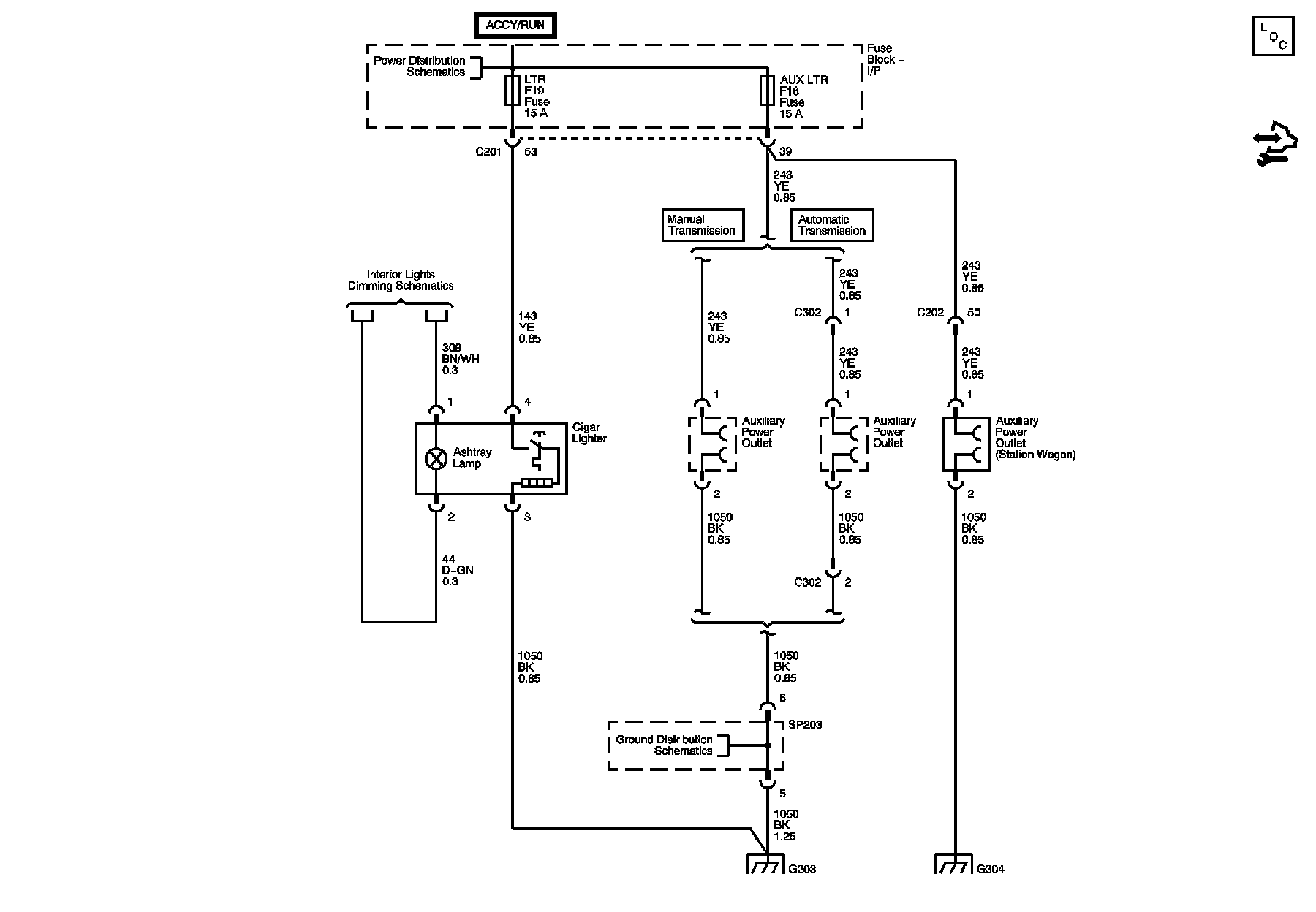

Cigar Lighter/Power Outlet Schematics





Master Electrical Component List
I/P Fuse Block RADIO/CLK, AUX LTR, and LTR Fuses
Interior Lights Schematics
G203
G203
