Lighting and Horns: Locations

Lighting Systems Component Views

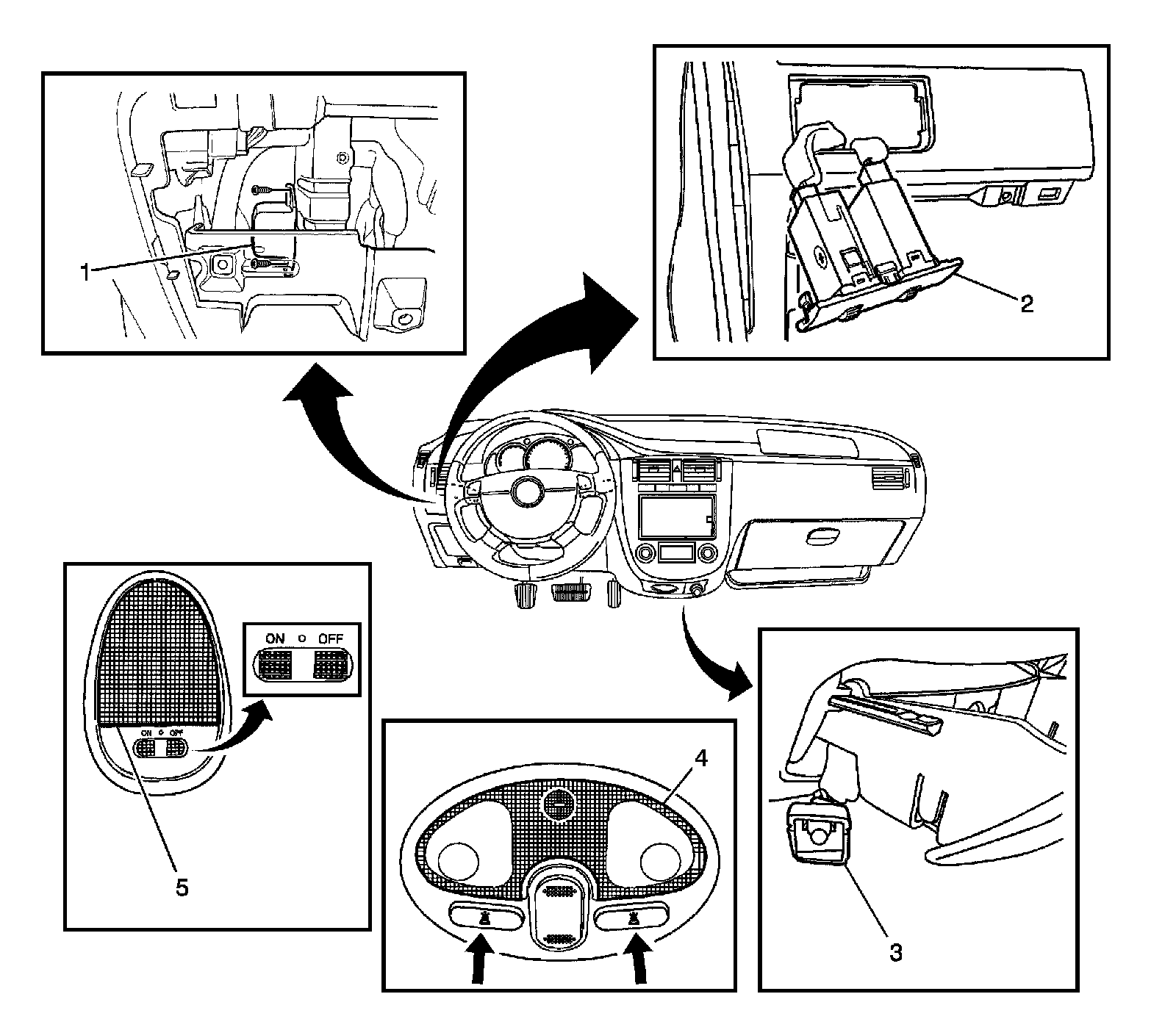

Daytime Relay Lamp (DRL), I/P Dimmer Switch, Ashtray Lamp, Reading Lamp, Dome Lamp





1 - Daytime Relay Lights (DRL) Module

2 - I/P Dimmer Switch

3 - Ashtray Lamp

4 - Reading Lamp

5 - Dome Lamp

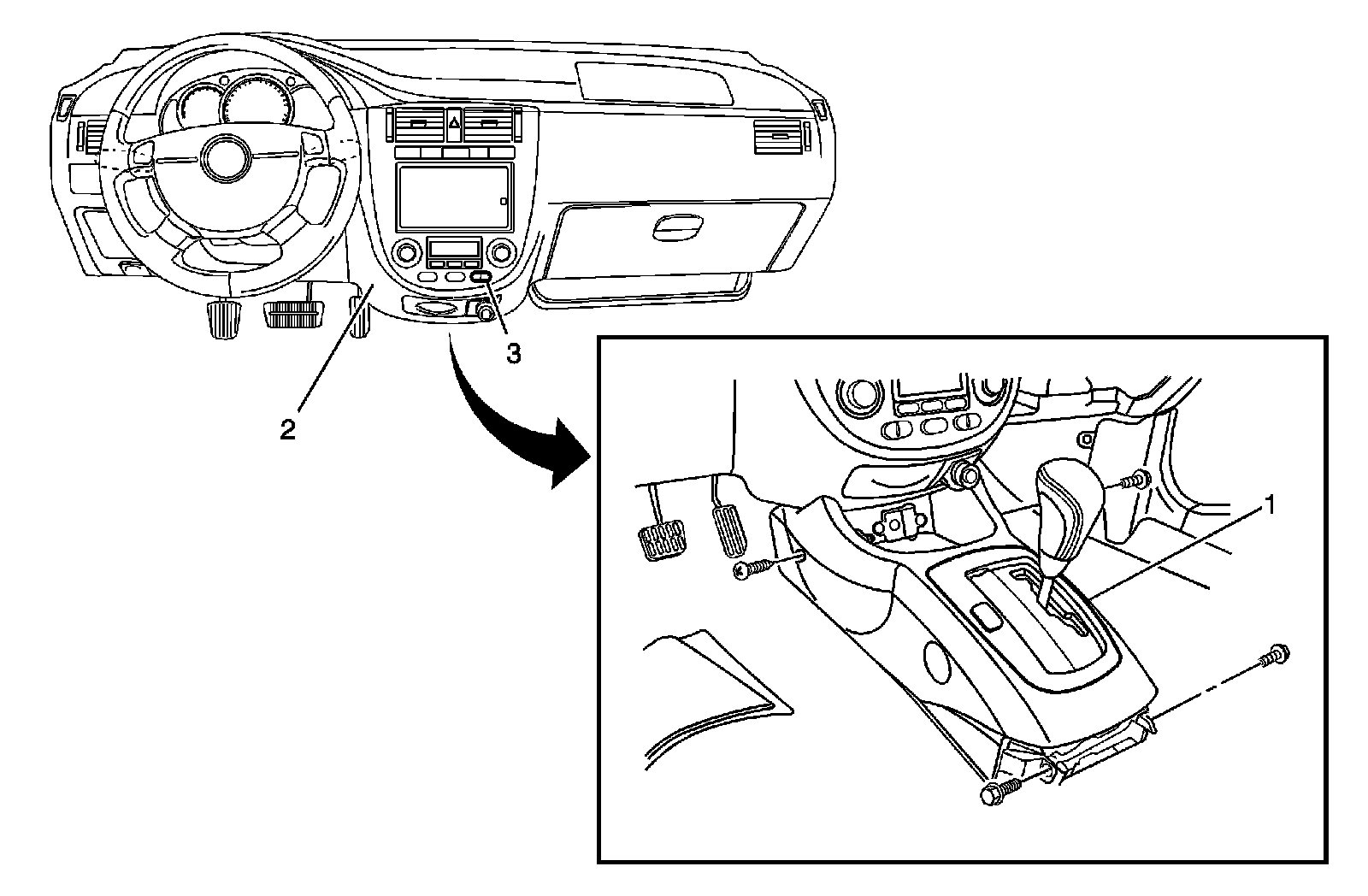

PRNDL Lamp, Multifunction Alarm Module, Defrost Switch





1 - PRNDL Lamp

2 - Multifunction Alarm Module

3 - Defrost Switch

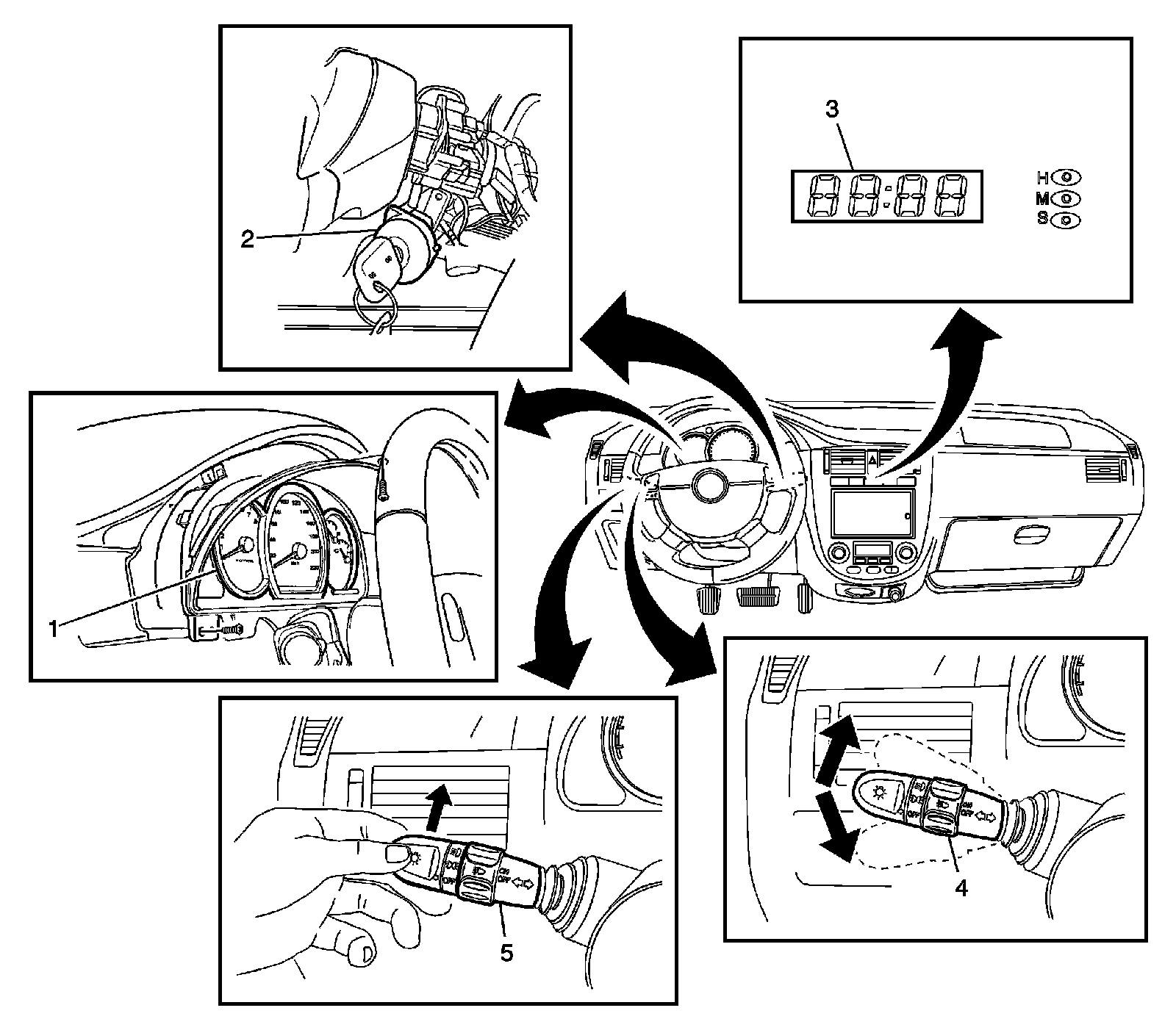

Instrument Cluster, Ignition Key Alarm Switch, Clock, Turn Signal Switch, Headlamp Switch





1 - Instrument Cluster

2 - Ignition Key Alarm Switch

3 - Clock

4 - Turn Signal Switch

5 - Headlamp Switch

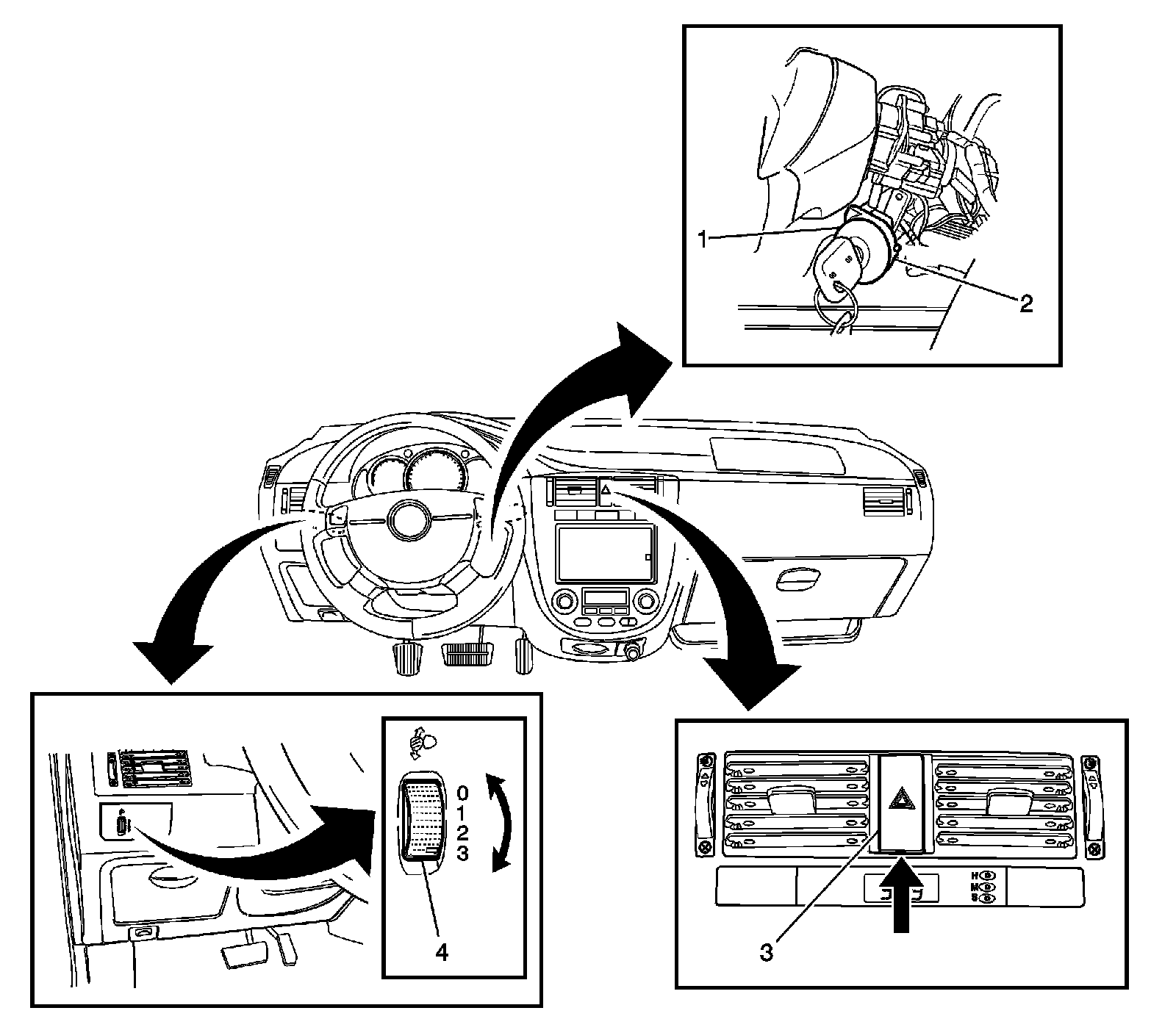

Light Ring, Ignition Switch, Hazard Switch, Headlamp Leveling Switch





1 - Ignition Key Cylinder Lamp (North America)

2 - Ignition Switch

3 - Hazard Warning Switch

4 - Headlamp Leveling Switch (Except North America)

Headlamp, CHMSL, and Sunroof Switch





1 - Sunroof Module

2 - Sunroof Switch/Readling Lamps

3 - License Lamp

4 - Center High Mounted Stop Lamp (CHMSL)

5 - Tail Lamp (Left and Right Similar)

6 - Sunroof Motor

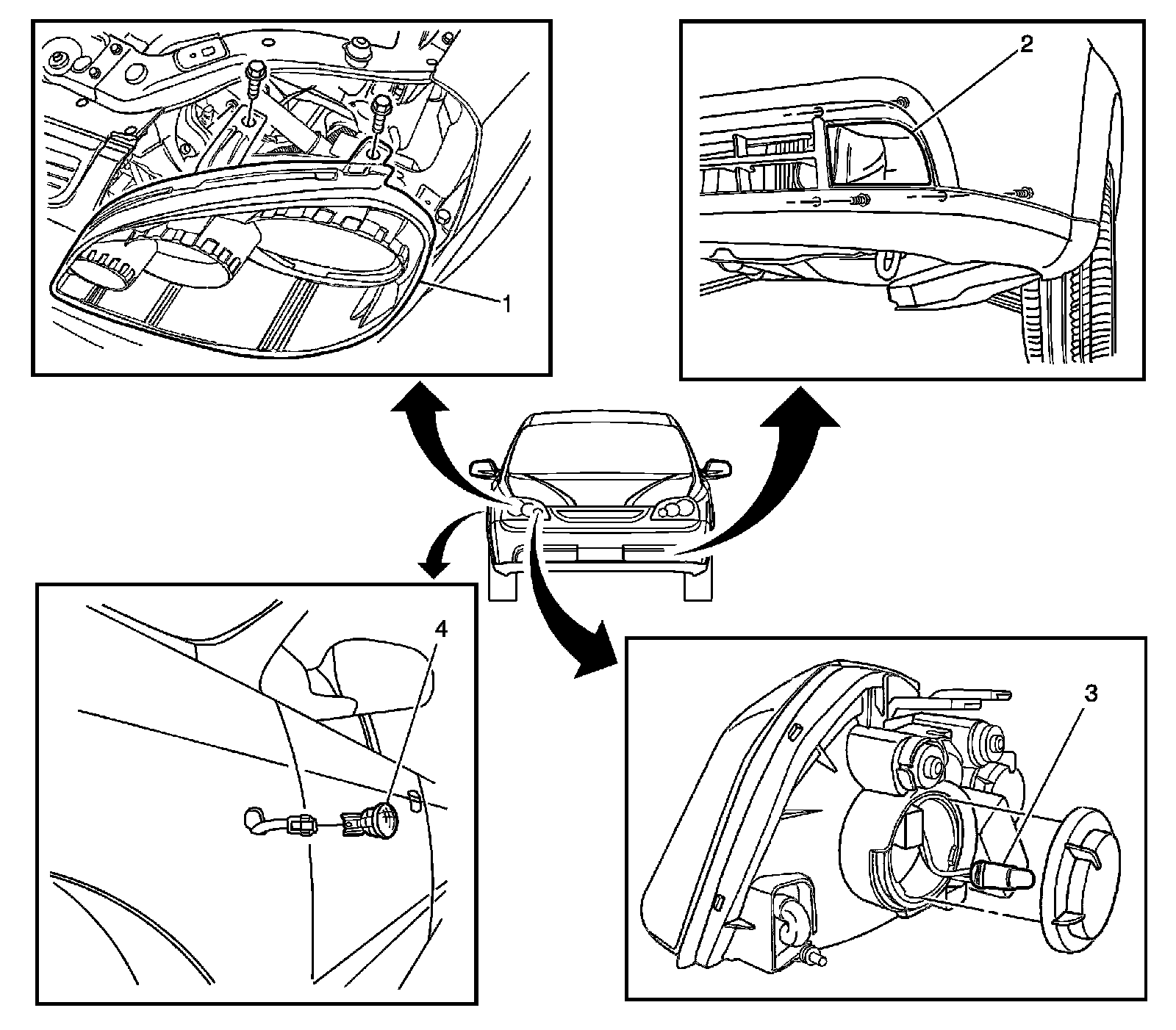

Exterior Lights, and Turn Signals





1 - Headlamp (Left Shown, Right Similar)

2 - Fog Lamp- Front (Left Shown, Right Similar)

3 - Park/Turn Signal Lamp (North America)/Turn Signal Lamp (Euro) (Left and Right Similar)

4 - Turn Signal Repeater Lamp (Left Shown, Right Similar)

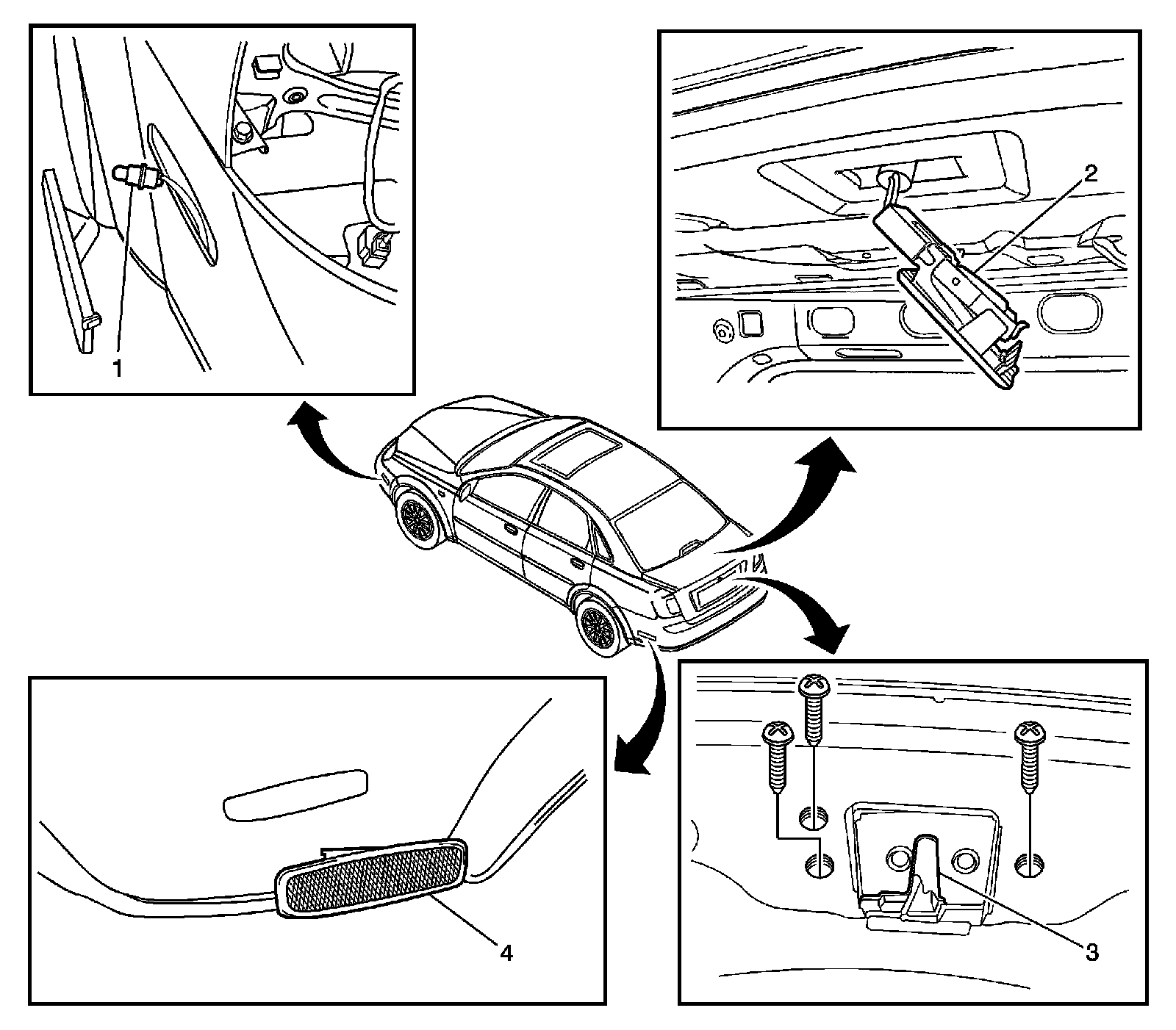

Side Markers and Rear Compartment Lid Latch





1 - Side Marker- Front (Left and Right Similar)

2 - Rear Compartment Lamp

3 - Rear Compartment Lid Latch

4 - Side Marker- Rear (Left and Right Similar)

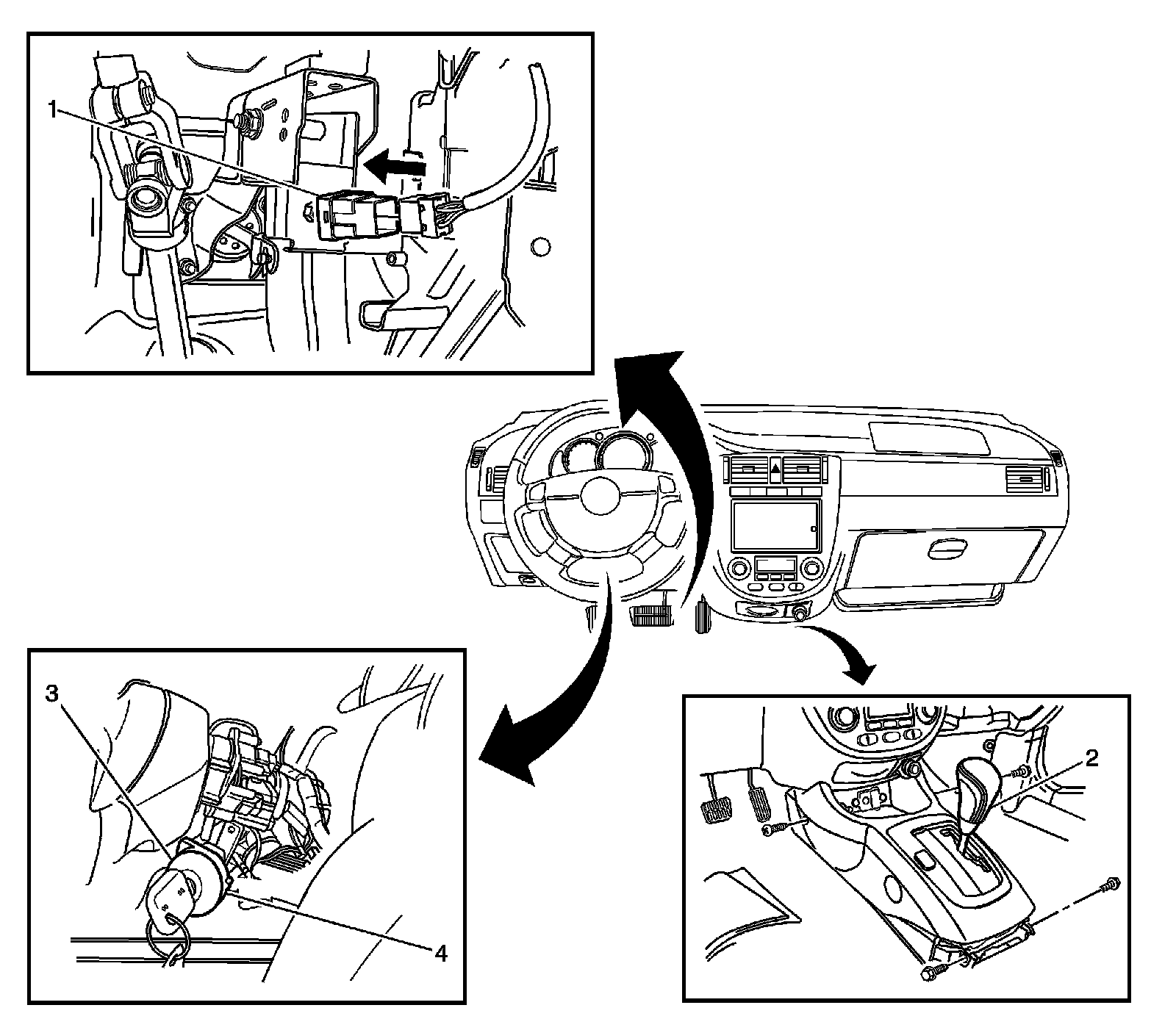

Stop Lamp Switch, A/T Select Lever, Ignition Lock Cylinder Control Actuator, Ignition Switch





1 - Stop Lamp Switch

2 - Automatic Transmission Shift Lever

3 - Ignition Lock Cylinder Control Actuator

4 - Ignition Switch

Wiper Switches





1 - Wiper Intermittent Switch (Optional)

2 - Wiper Intermittent Switch and Rear Fog Lamp Switch (w/Rear Fog Lamps)

3 - Wiper Switch
