Lighting and Horns: Service and Repair




Parking and Turn Signal Lamp Bulb Replacement

Removal Procedure





Notice:
Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

2. Remove the headlamp. Refer to Headlamp Replacement (Five Door) Headlamp Replacement (Five Door)Headlamp Replacement (Four Door/Wagon) Headlamp Replacement (Four Door/Wagon).

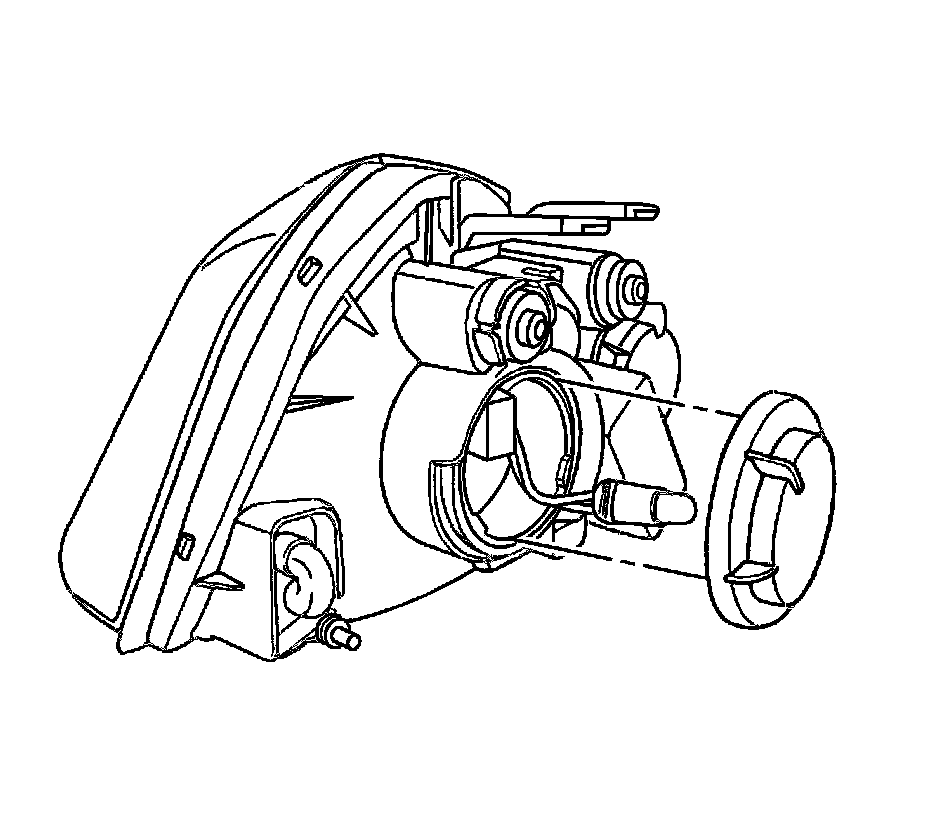

3. Remove the parking lamp bulb.

Installation Procedure





1. Install the parking lamp bulb.

2. Install the headlamp. Refer to Headlamp Replacement (Five Door) Headlamp Replacement (Five Door)Headlamp Replacement (Four Door/Wagon) Headlamp Replacement (Four Door/Wagon).

3. Connect the negative battery cable.
