B1480
DTC B1480
CIRCUIT DESCRIPTION
The body control module (BCM) supplies battery voltage to the courtesy lamps, underhood lamp, instrument panel (I/P) compartment lamp, and both visor vanity mirror lamps. In the event that any of these lamps were to remain illuminated for more than 20 minutes with the ignition switch in the OFF position, the BCM will deactivate the courtesy lamp supply voltage circuit to prevent a total battery discharge condition.
DTC DESCRIPTOR
This diagnostic procedure supports the following DTC:
DTC B1480 Battery Rundown Protection Circuit

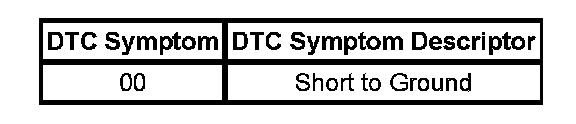

This vehicle has DTCs which include DTC Symptoms. For more information on DTC Symptoms, refer to DTC Symptom Description in Vehicle DTC Information. DTC Symptom Description
CONDITIONS FOR RUNNING THE DTC
Battery voltage must be between 9-16 volts.
CONDITIONS FOR SETTING THE DTC
DTC B1480 will set when the courtesy lamp supply voltage circuit that feeds the courtesy lamps, underhood lamp, IP compartment lamp, console lamp and both visor vanity mirror lamps is shorted to ground for longer than 1 second.
ACTION TAKEN WHEN THE DTC SETS
The courtesy lamps, underhood lamp, I/P compartment lamp, and both visor vanity mirror lamps will not operate.
CONDITIONS FOR CLEARING THE DTC
- The condition responsible for setting the DTC no longer exists.
- You issue a scan tool CLEAR DTCs command.
- A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.
DIAGNOSTIC AIDS
Thoroughly inspect the wiring and connectors. An incomplete inspection of the wiring and connectors may result in misdiagnosis causing part replacement with the reappearance of the malfunction. If an intermittent malfunction exists, refer to Testing for Intermittent Conditions and Poor Connections in Diagnostic Aids. Component Tests and General Diagnostics

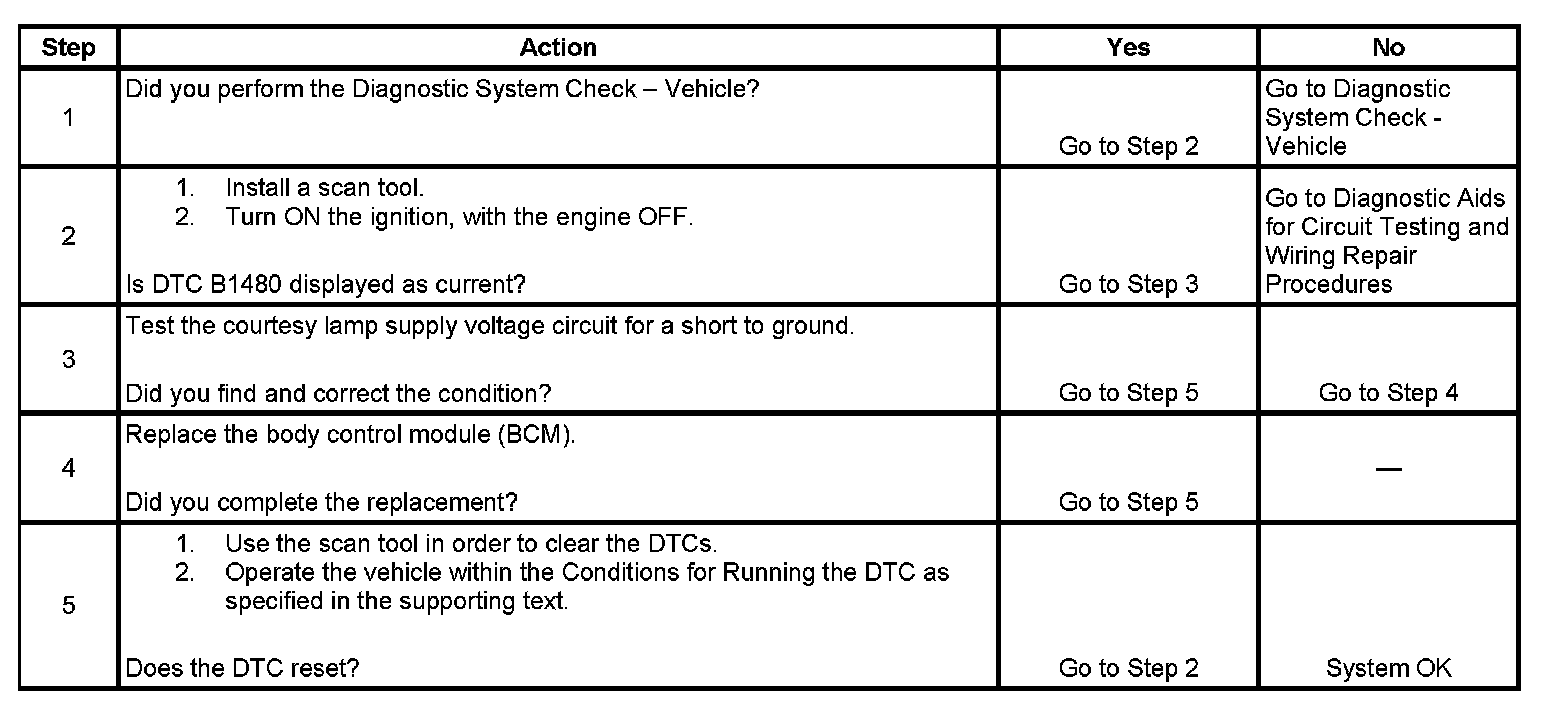

TEST
