B1605
DTC B1605
CIRCUIT DESCRIPTION
The driver door module (DDM) and passenger door module (PDM) each provide motor control output functions for their respective mirrors. These output controls allow each door module to command their respective power mirrors in horizontal and vertical positions. The driver door switch assembly (DDSA) sends a serial data message to the door modules when the mirror switch is activated to the up, down, left or right positions. When the door modules detect an active mirror command from the DDSA, they will command the respective mirror motor in the appropriate direction. Each door module commands their respective mirror motors by applying a ground or voltage to the control circuit, depending on the desired mirror position. For more detailed information concerning power mirror operation refer to Outside Mirror Description and Operation.
DTC DESCRIPTORs
This diagnostic procedure supports the following DTCs:
- DTC B1600 Mirror Motor 1 (vertical) Circuit
- DTC B1605 Mirror Motor 2 (horizontal) Circuit
CONDITIONS FOR RUNNING THE DTC
Battery voltage must be between 9-16 volts.
CONDITIONS FOR SETTING THE DTC
- The DDM or PDM detects a short to ground or voltage in the mirror motor control circuit.
- Condition must be present for 2 seconds.
ACTION TAKEN WHEN THE DTC SETS
- When DTC B1600 is present, the vertical mirror control will be disabled.
- When DTC B1605 is present, the horizontal mirror control will be disabled.
CONDITIONS FOR CLEARING THE DTC
- The condition responsible for setting the DTC no longer exists.
- You issue a scan tool CLEAR DTCs command.
DIAGNOSTIC AIDS
The following conditions may cause an intermittent malfunction:
- There is an intermittent short to ground or voltage in a mirror motor control circuit.
- A mirror motor is shorted internally.
- Thoroughly inspect the wiring and connectors. An incomplete inspection of the wiring and connectors may result in misdiagnosis causing part replacement with the reappearance of the malfunction. If an intermittent malfunction exists, refer to Diagnostic Aids for Circuit Testing and Wiring Repair Procedures. Component Tests and General Diagnostics

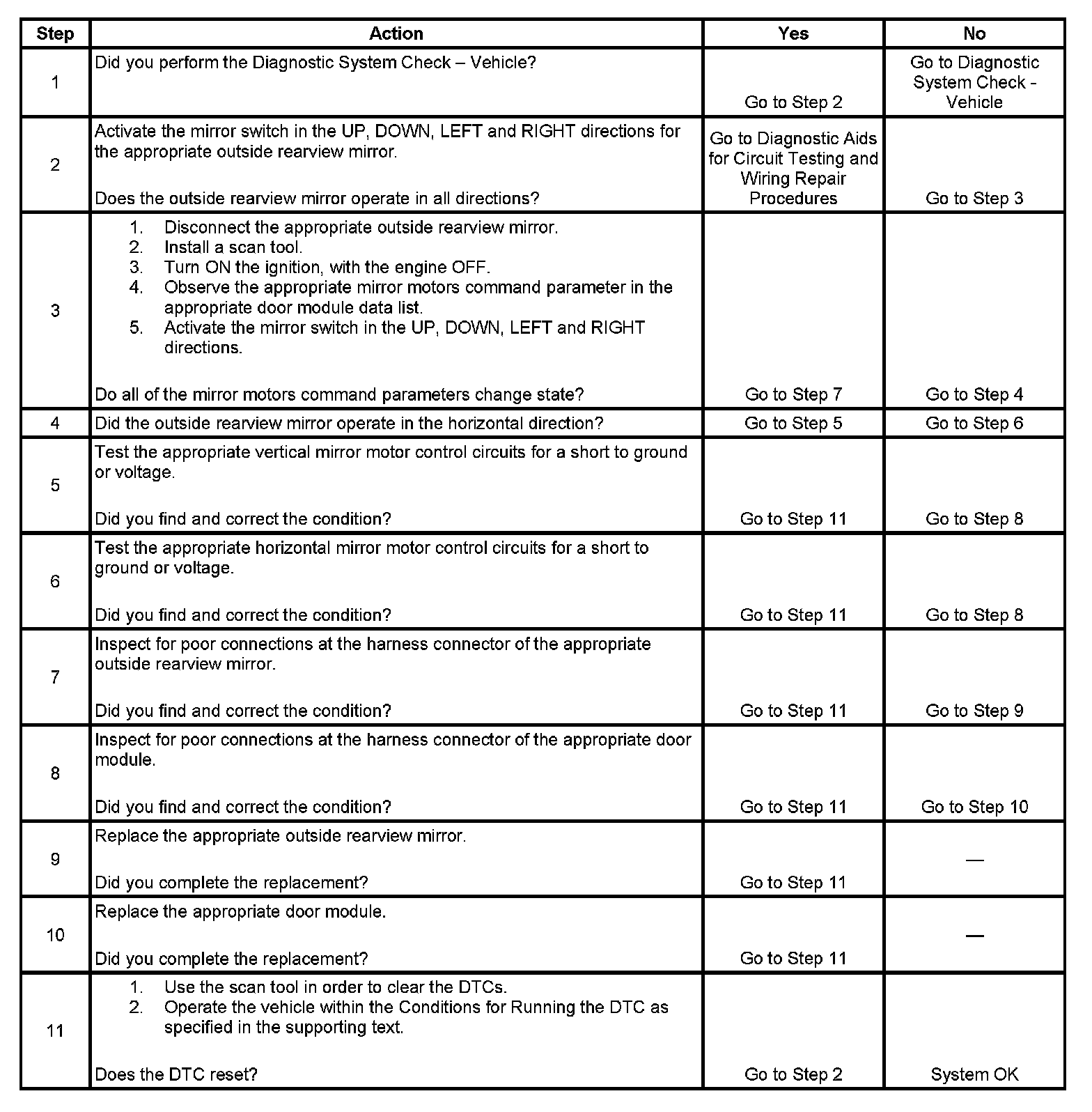

TEST
