B2517
DTC B2517
CIRCUIT DESCRIPTION
The remote control door lock receiver (RCDLR), driver door module (DDM), passenger door module (PDM) and body control module (BCM) control the output functions of the power door latches. These output functions allow the RCDLR and BCM to command the power door latch motors to Unlatch.
When the RCDLR receives an input from one of the door handle switches, it checks the Lock/Unlock status of the door. If the status of the door is Unlock, the RCDLR applies the ground for the appropriate power door latch.
At the same time that the RCDLR is receiving its input, the DDM or PDM is also receiving the same input. When the DDM or PDM receives its input from the door handle switch, it checks the window indexing status of the door. If the window is below the index point, it sends a serial data message to the BCM to apply voltage for the appropriate power door latch. If the window is above the index point, it will first index the window, then send a serial data message to the BCM to apply voltage for the power door latch. For more detailed information concerning power window operation, refer to Power Windows Description and Operation.
The RCDLR monitors the door latch enable control circuit voltage. If the voltage level is greater than 8 volts for longer than 2 minutes, a DTC is set.
DTC DESCRIPTORs
This diagnostic procedure supports the following DTCs:
- DTC B2517 Left Front/Driver Door Latch Circuit
- DTC B2518 Right Front/Passenger Door Latch Circuit
CONDITIONS FOR SETTING THE DTC
- The RCDLR detects voltage greater than 8 volts in the door latch enable control circuit.
- Condition must be present for longer than 2 minutes.
ACTION TAKEN WHEN THE DTC SETS
Stores DTC B2517 or B2518 in RCDLR memory.
CONDITIONS FOR CLEARING THE DTC
- The condition responsible for setting the DTC no longer exists.
- You issue a scan tool CLEAR DTCs command.
DIAGNOSTIC AIDS
- If the DTC does not reset after the code is cleared, it may be that the door latch enable control circuit is short to voltage. If the voltage circuit that the door lock enable control circuit is shorted to is fused, then the fuse for the voltage circuit would open when a door handle switch is activated and the RCDLR pulls the door lock enable control circuit low. Check related systems for an open fuse.
- An intermittent short to voltage in a door latch control, or a door latch enable control circuit may cause an intermittent malfunction.
- If the DTC does not reset after the code is cleared, then the problem may be intermittent.

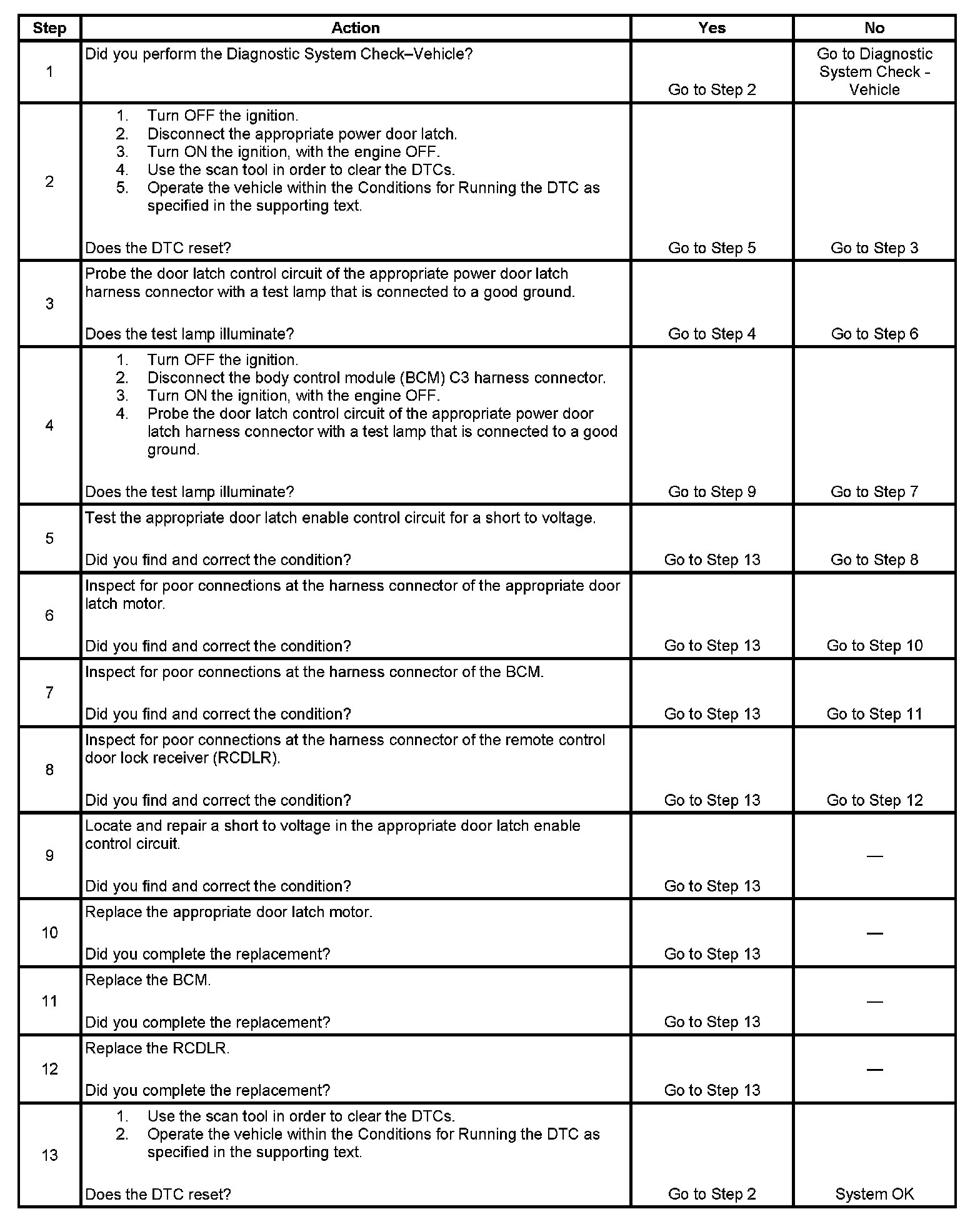

TEST
