B2530

DTC B2530

CIRCUIT DESCRIPTION
The front fog lamp switch signal circuit is grounded momentarily by pressing the front fog lamp switch. The body control module (BCM) energizes the front fog lamp relay by applying battery voltage to the front fog lamp relay control circuit. When the front fog lamp relay is energized, battery voltage is applied via the FOG LAMP fuse to the front fog lamp supply voltage circuit which illuminates the front fog lamps.

DTC DESCRIPTOR
This diagnostic procedure supports the following DTC:
DTC B2530 Front Fog Lamps Control Circuit

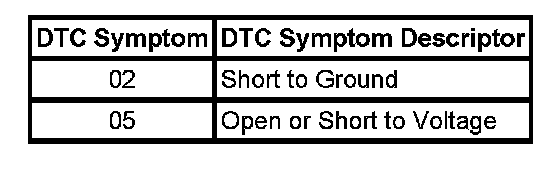

This vehicle has DTCs which include DTC Symptoms. For more information on DTC Symptoms, refer to DTC Symptom Description in Vehicle DTC Information. DTC Symptom Description

CONDITIONS FOR RUNNING THE DTC
Battery voltage must be between 9-16 volts.

CONDITIONS FOR SETTING THE DTC
- DTC B2530 02 will set when the BCM detects a short to ground in the front fog lamp relay control circuit.
- DTC B2530 05 will set when the BCM detects an open or short to voltage in the front fog lamp relay control circuit.

ACTION TAKEN WHEN THE DTC SETS
- When DTC B2530 02 is present, the front fog lamps will not operate when the park lamps are ON and the front fog lamp switch is active.
- When DTC B2530 05 is present, the front fog lamps and/or the front fog lamp indicator will be ON at all times or will not operate.

CONDITIONS FOR CLEARING THE DTC
- The condition responsible for setting the DTC no longer exists.
- You issue a scan tool CLEAR DTCs command.
- A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.

DIAGNOSTIC AIDS
Thoroughly inspect the wiring and connectors. An incomplete inspection of the wiring and connectors may result in misdiagnosis causing part replacement with the reappearance of the malfunction. If an intermittent malfunction exists, refer to Testing for Intermittent Conditions and Poor Connections in Diagnostic Aids. Component Tests and General Diagnostics

TEST

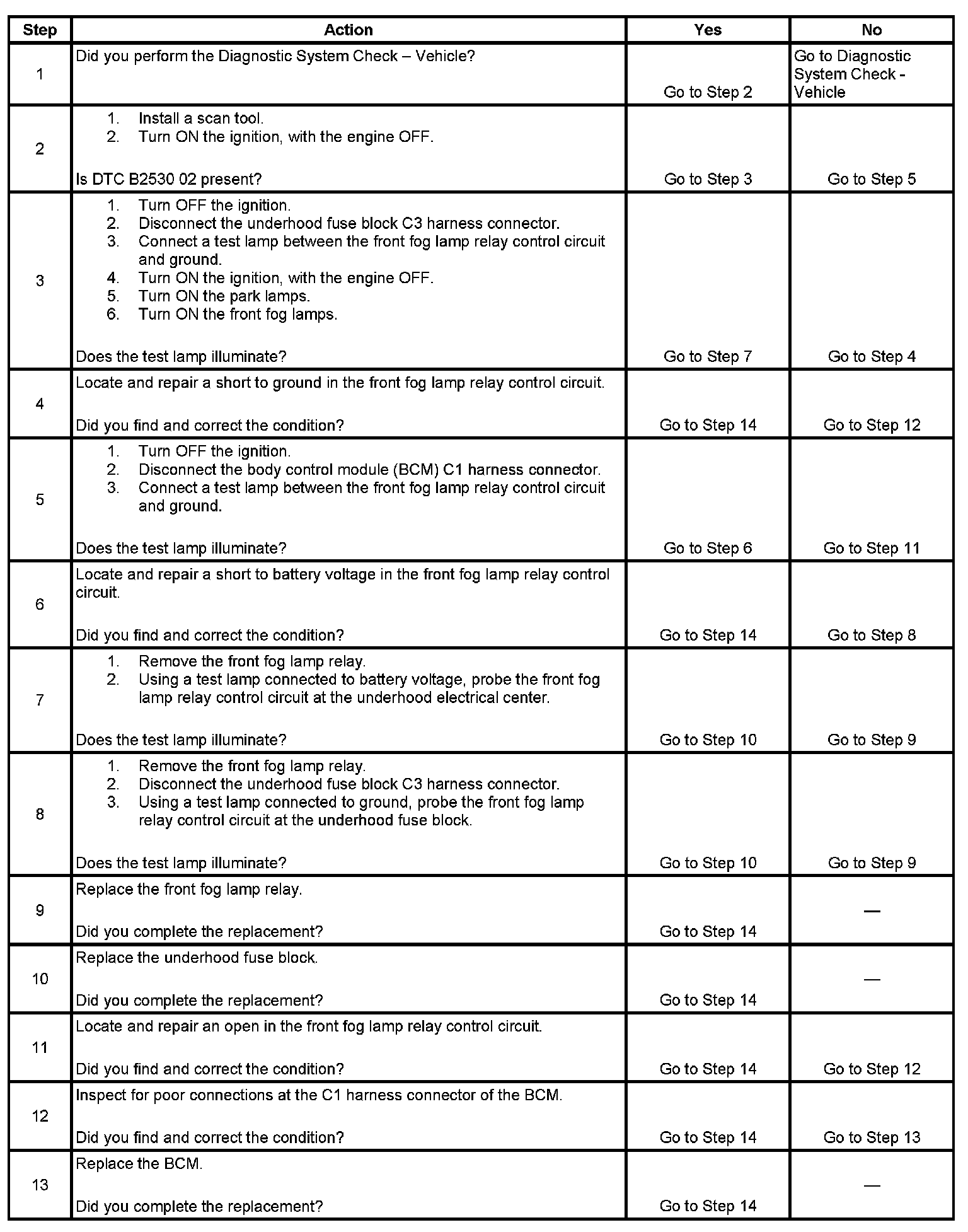

Step 1 - Step 13:

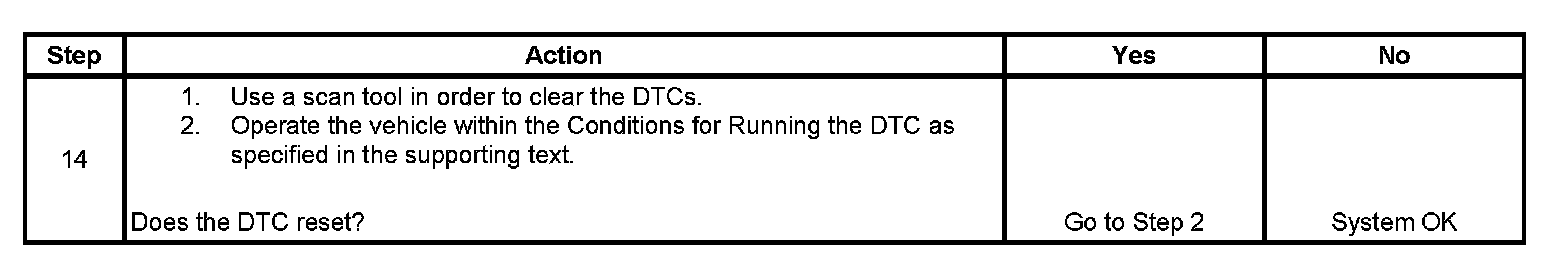

Step 14:
