Antilock Brakes / Traction Control Systems: Locations

ABS Component Views





I/P Console Components

1 - Head Up Display (HUD)
2 - Driver Information Center (DIC) Switch
3 - Sunload Sensor Assembly
4 - Hazard Switch
5 - Radio
6 - HVAC Control Module
7 - Inflatable Restraint I/P Module Disable Switch
8 - I/P Compartment Lamp
9 - Heated Seat Switch-Passenger
10 - Suspension Control Switch
11 - Inflatable Restraint Restraint I/P Module Disable Switch LED
12 - Auxiliary Power Outlet
13 - Traction Control Switch
14 - Cigar Lighter
15 - Heated Seat Switch-Driver
16 - Footwell Courtesy Lamp-Left
17 - Ignition Mode Switch
18 - Air Temperature Sensor-Inside
19 - Inflatable Restraint Steering Wheel Module
20 - Rear Compartment Lid Release Switch - Interior
21 - Fuel Door Release Switch
22 - I/P Dimmer Switch
23 - Folding Top Switch (CM7)
24 - Head Up Display (HUD) Switch
25 - Instrument Panel Cluster (IPC)

ABS Components:

ABS Components

1 - Brake Pressure Modulator Valve (BPMV)
2 - Brake Fluid Pressure Sensor
3 - Brake Fluid Level Switch
4 - Electronic Brake Control Module (EBCM)
5 - Steering Angle Sensor
6 - Brake Pedal Position Sensor
7 - Yaw and Lateral Accelerometer Sensor
8 - Park Brake Switch

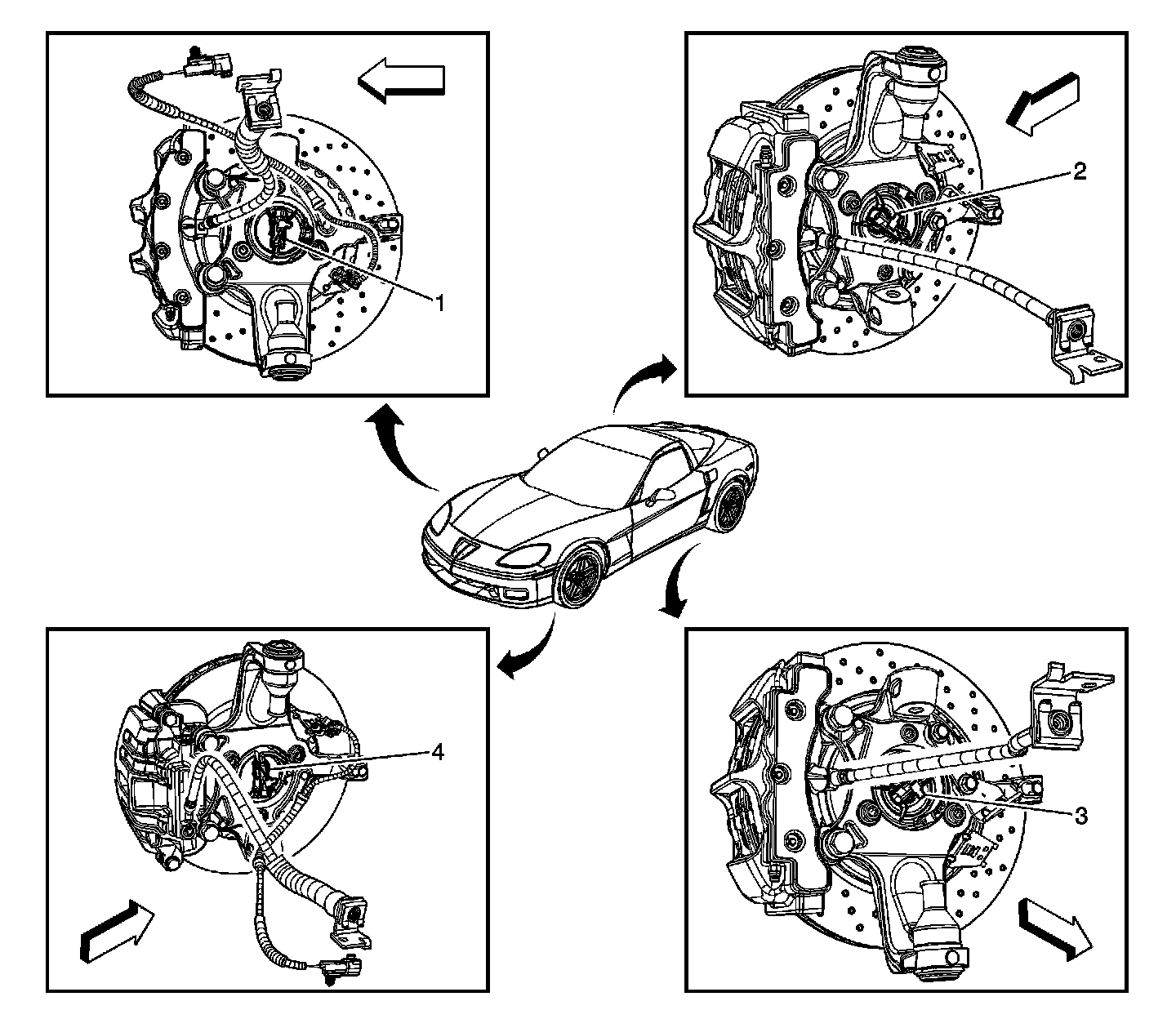

Wheel Speed Sensors:

Wheel Speed Sensors

1 - Wheel Speed Sensor (WSS)-LF
2 - Wheel Speed Sensor (WSS)-LR
3 - Wheel Speed Sensor (WSS)-RR
4 - Wheel Speed Sensor (WSS)-RF
