Air Door Actuator / Motor, HVAC

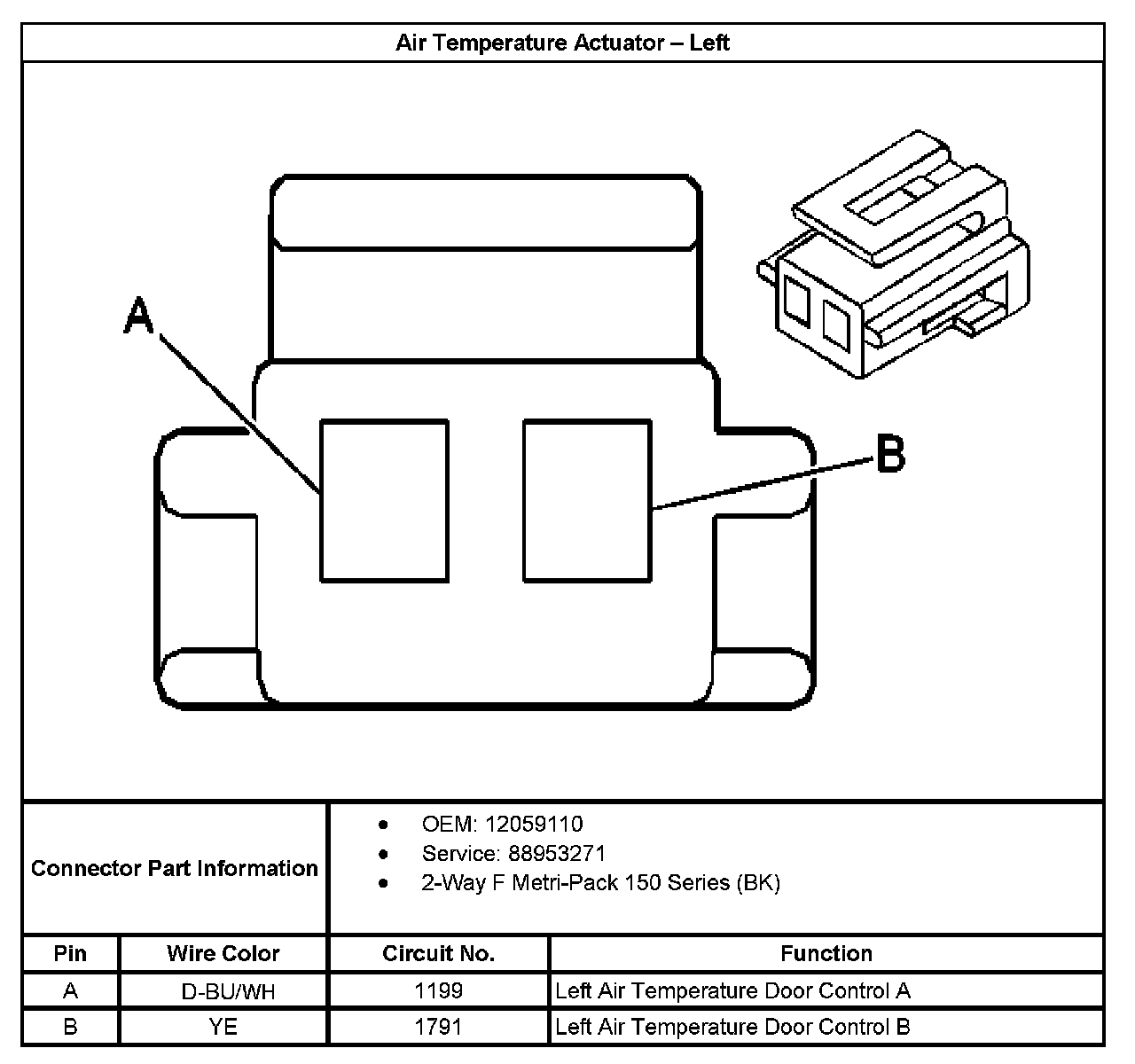

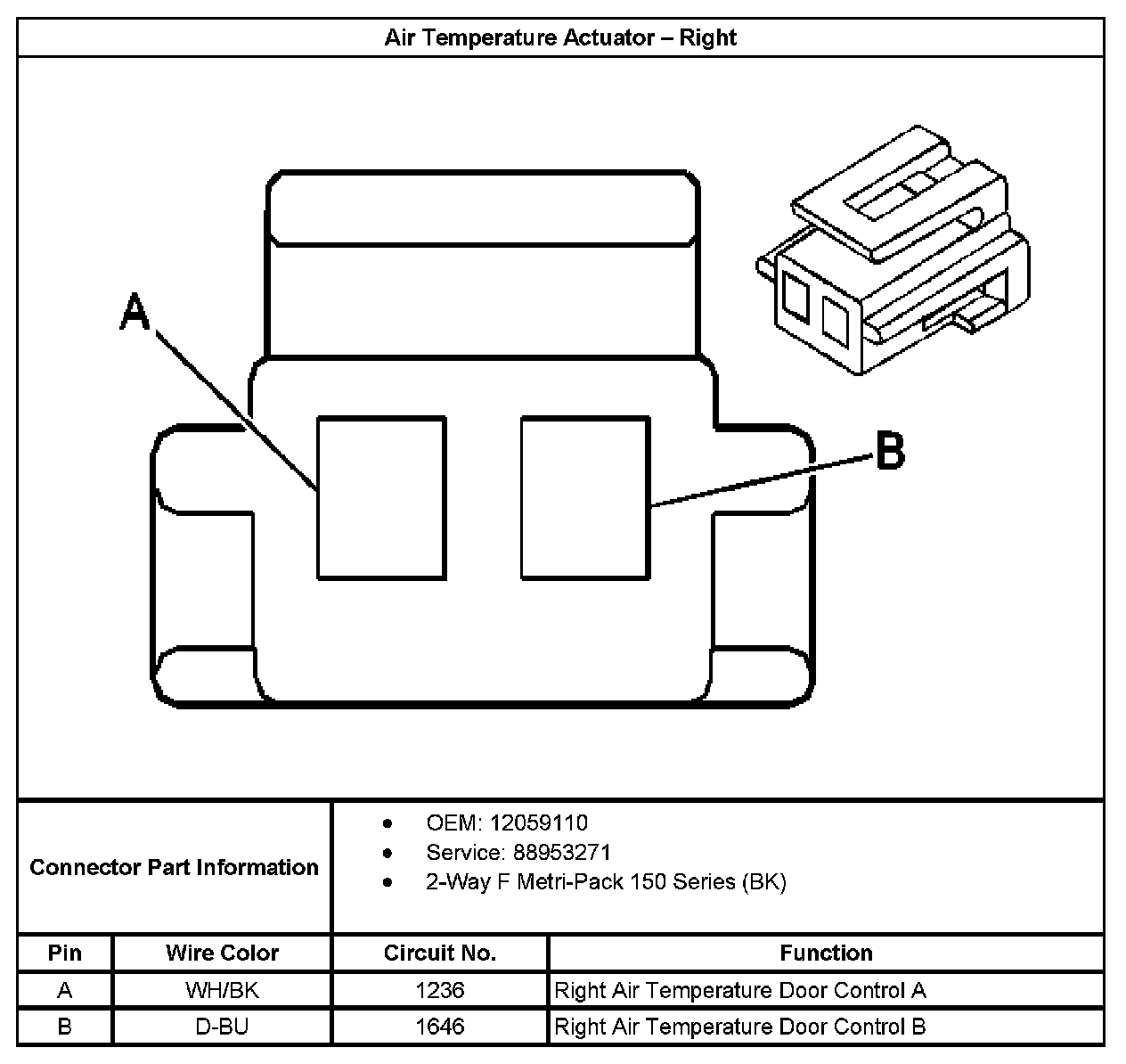

Air Temperature Actuator-Right:

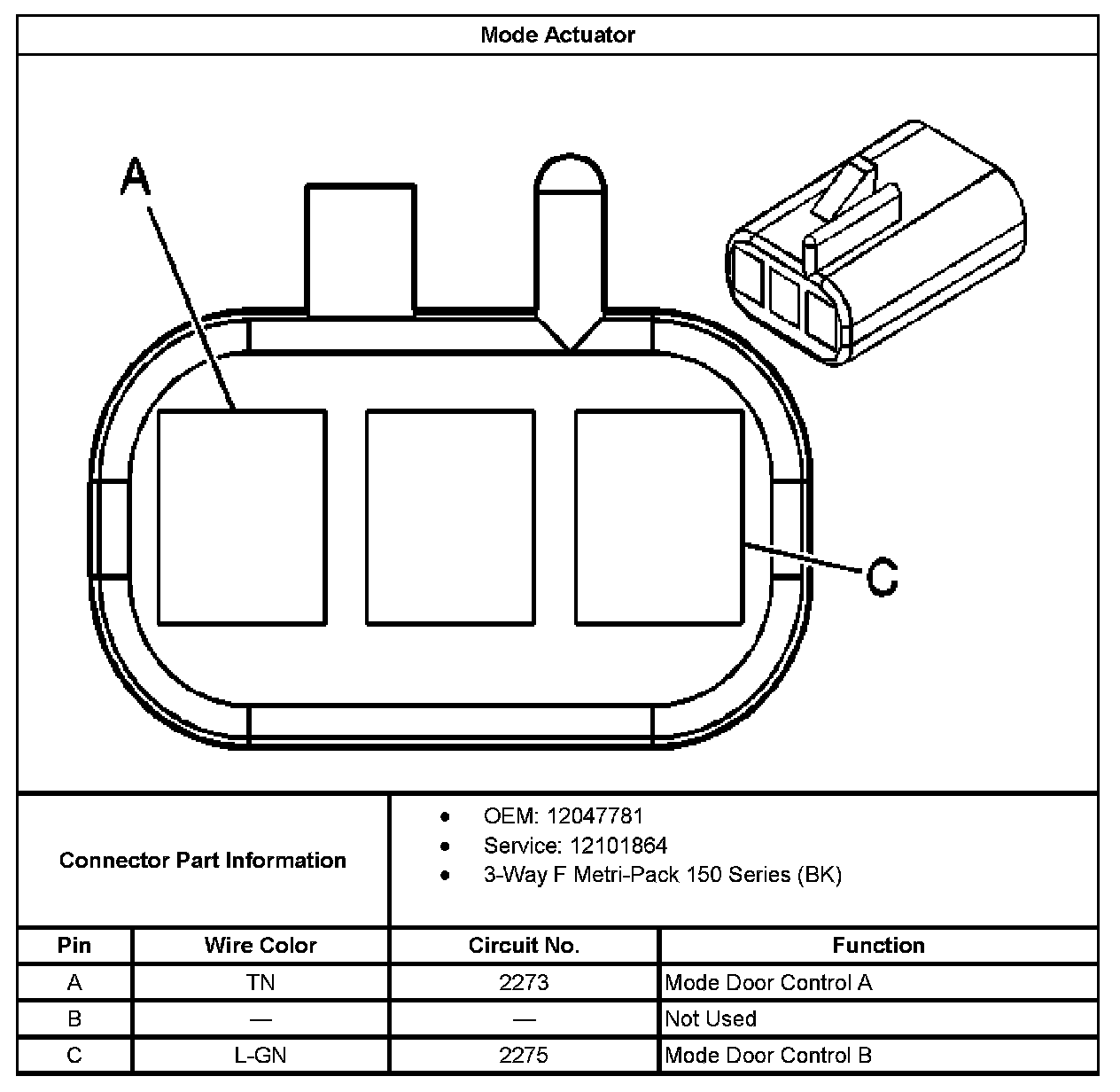

Mode Actuator:

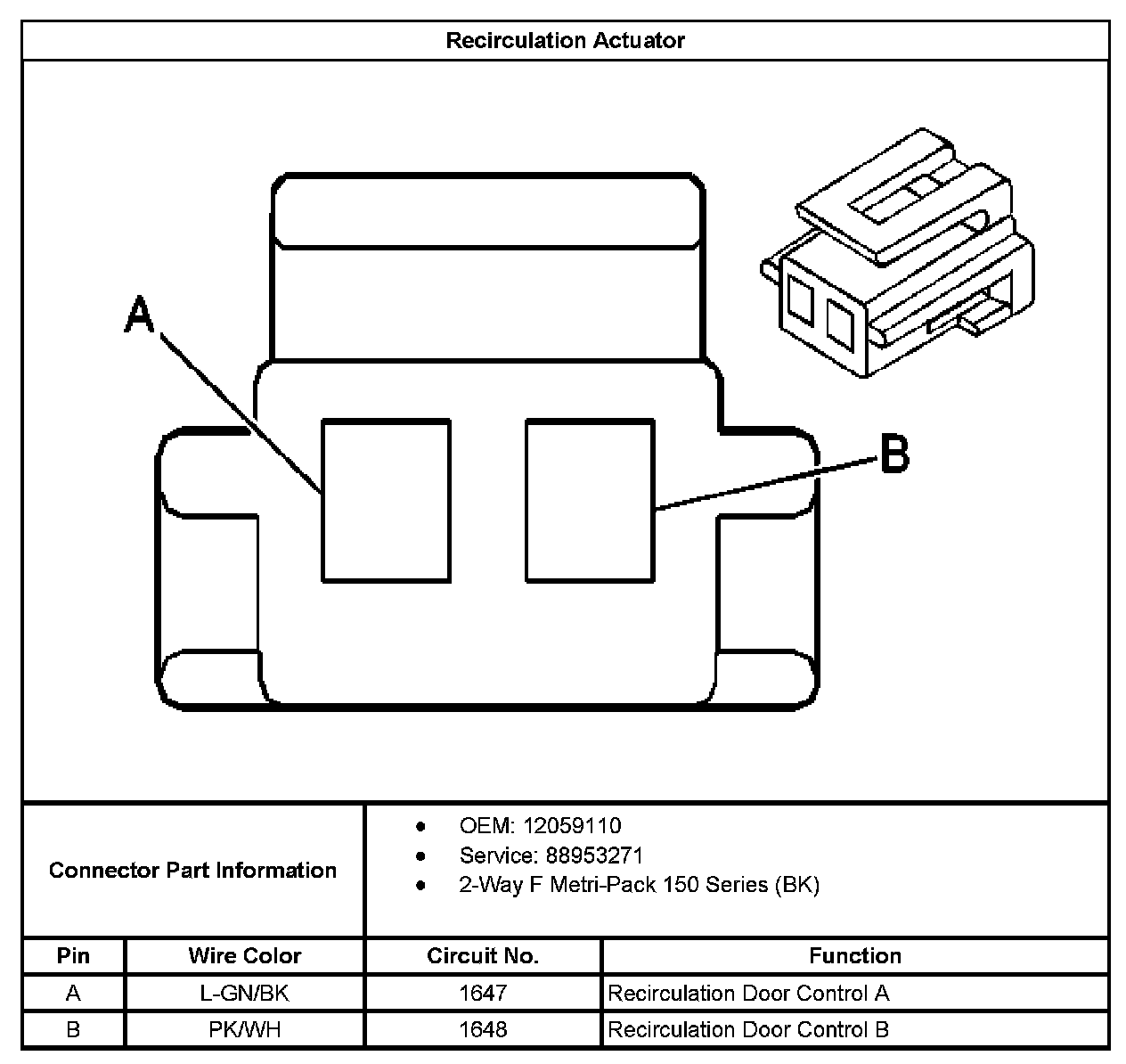

Recirculation Actuator:
