Antenna - Keyless Entry
Antenna - Keyless Entry

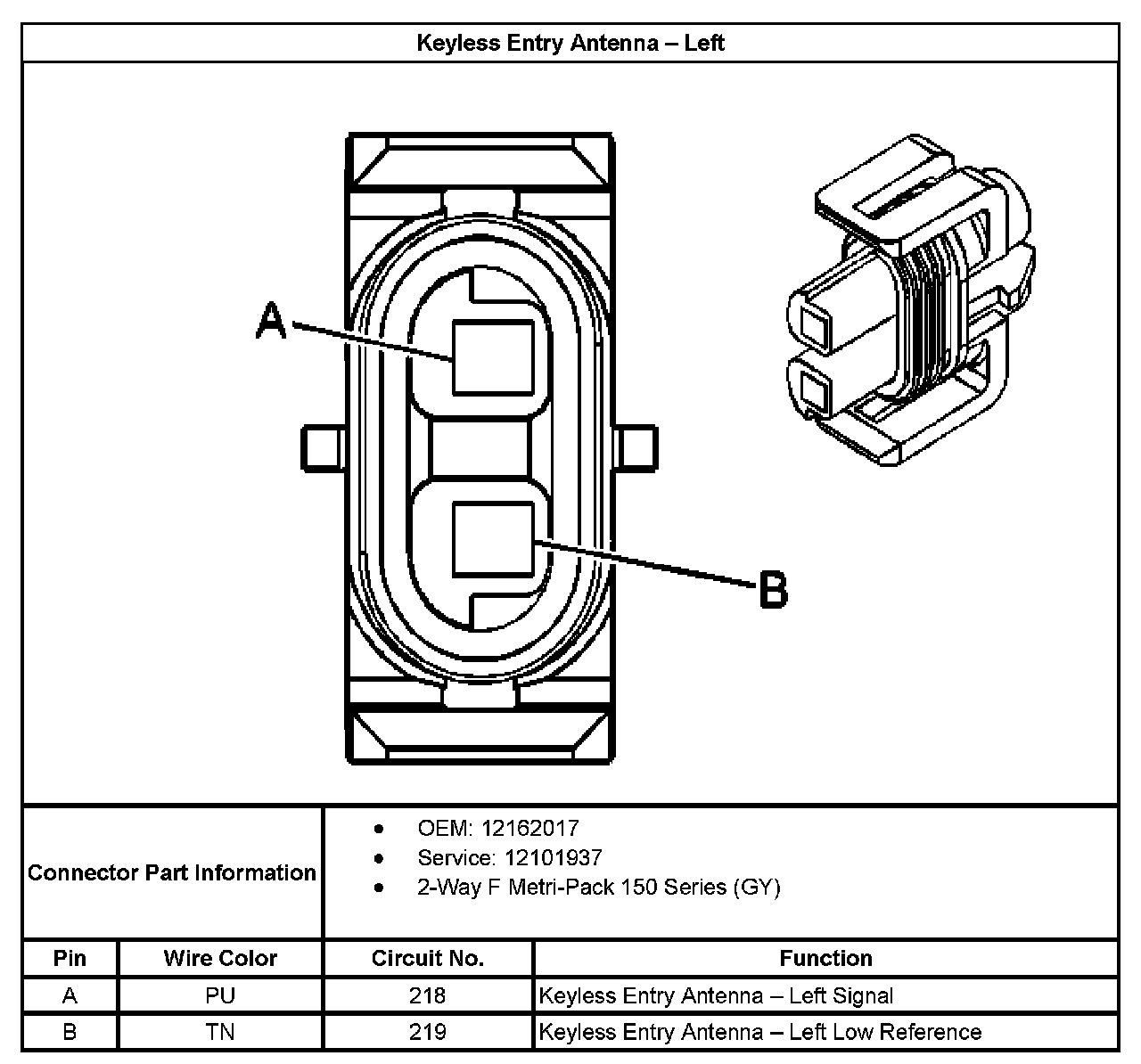

Keyless Entry Antenna-Left:
Keyless Entry Antenna-Right:

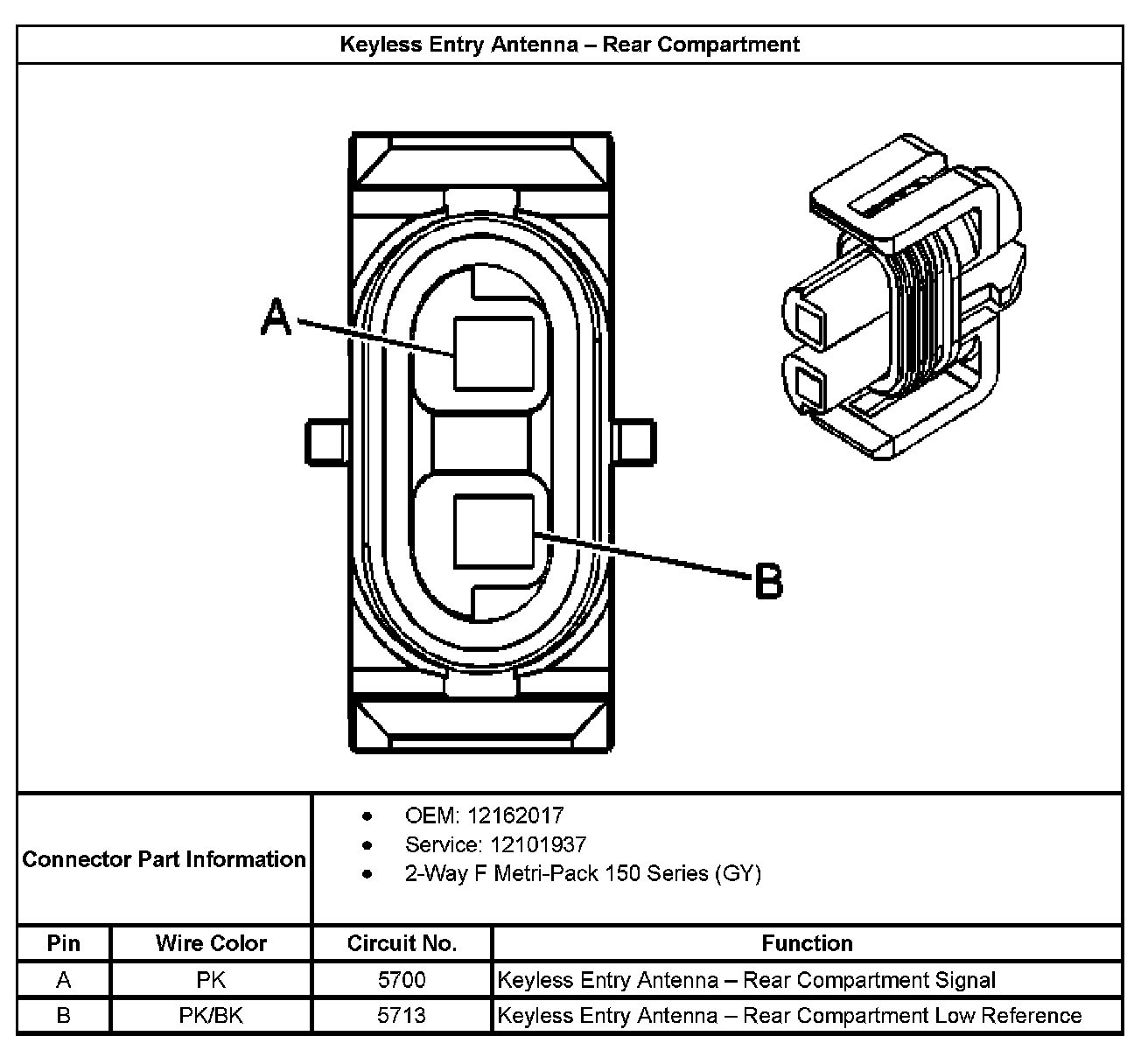

Keyless Entry Antenna-Rear Compartment:

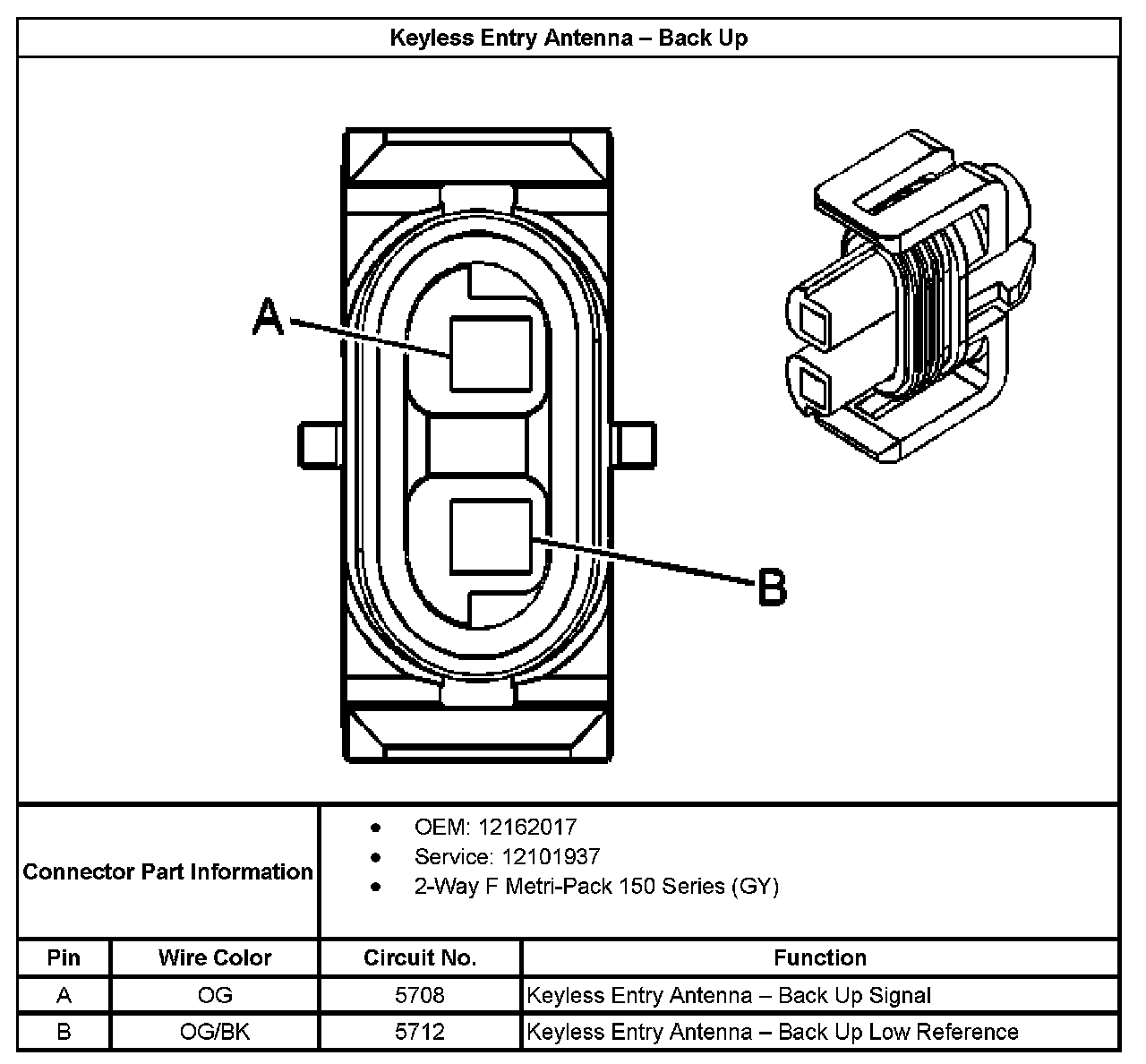

Keyless Entry Antenna-Back Up:
