Antenna Control Module

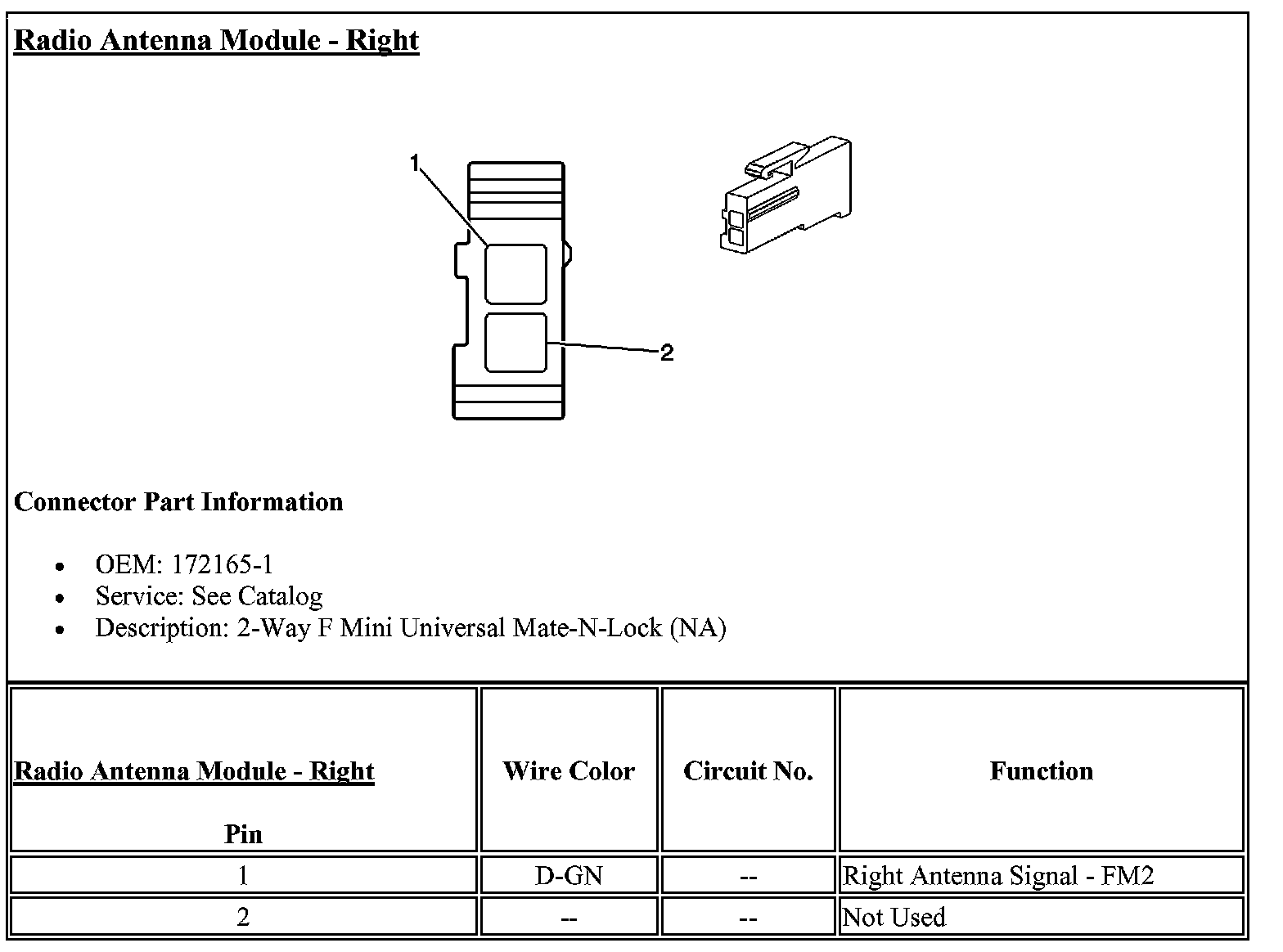

Radio Antenna Module (Part 1):

Radio Antenna Module (Part 2):

Radio Antenna Module (Part 3):
