Fog/Driving Lamp
Fog/Driving Lamp
Fog Lamp - LF:
Fog Lamp - LR (With RPO Code T79):

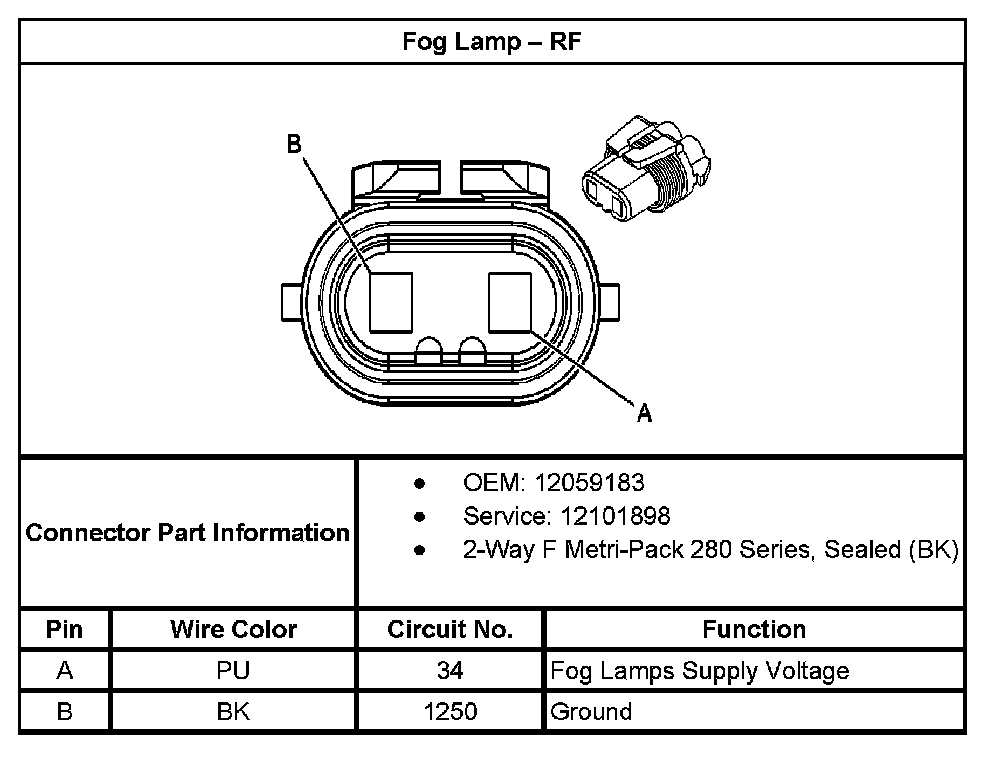

Fog Lamp - RF:
Fog Lamp - RR (With RPO Code T79):
