Heads Up Display Unit
Heads Up Display Unit

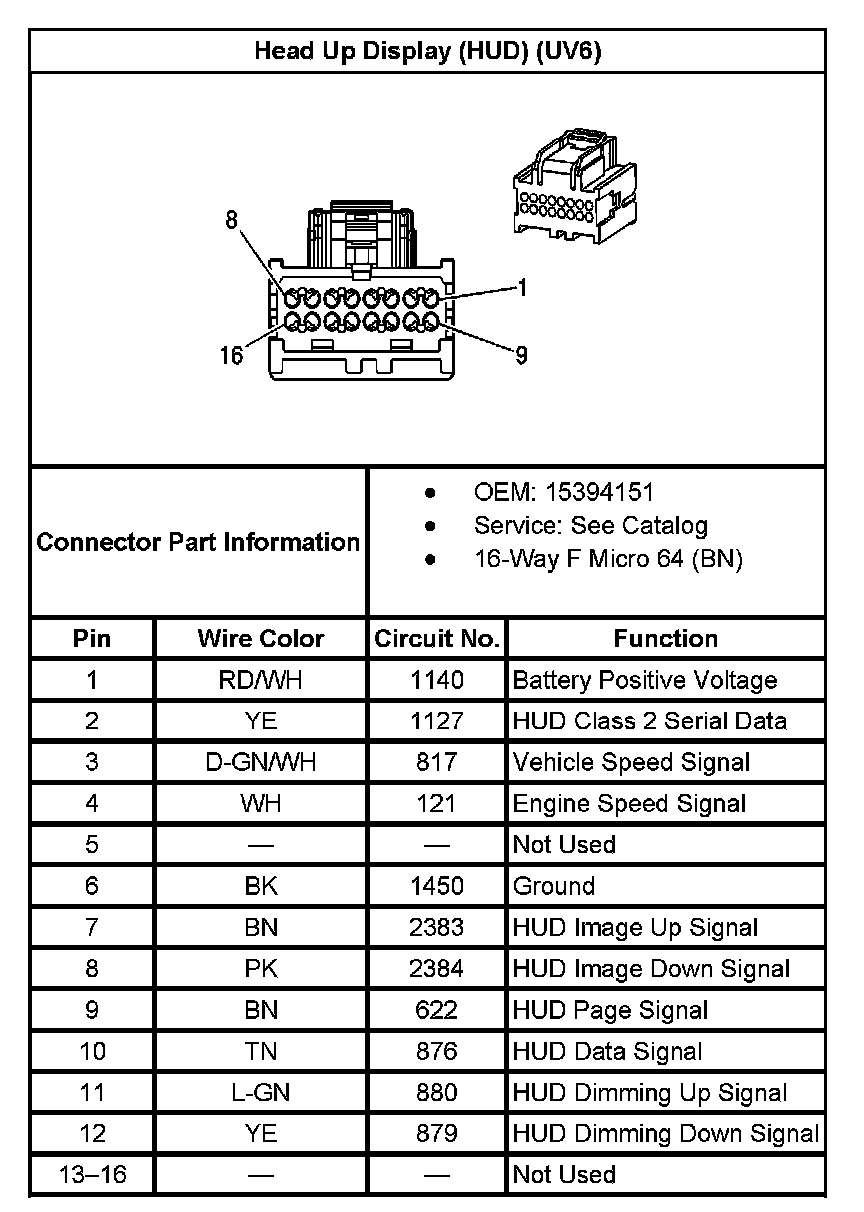

Head Up Display (HUD) (With RPO Code UV6):

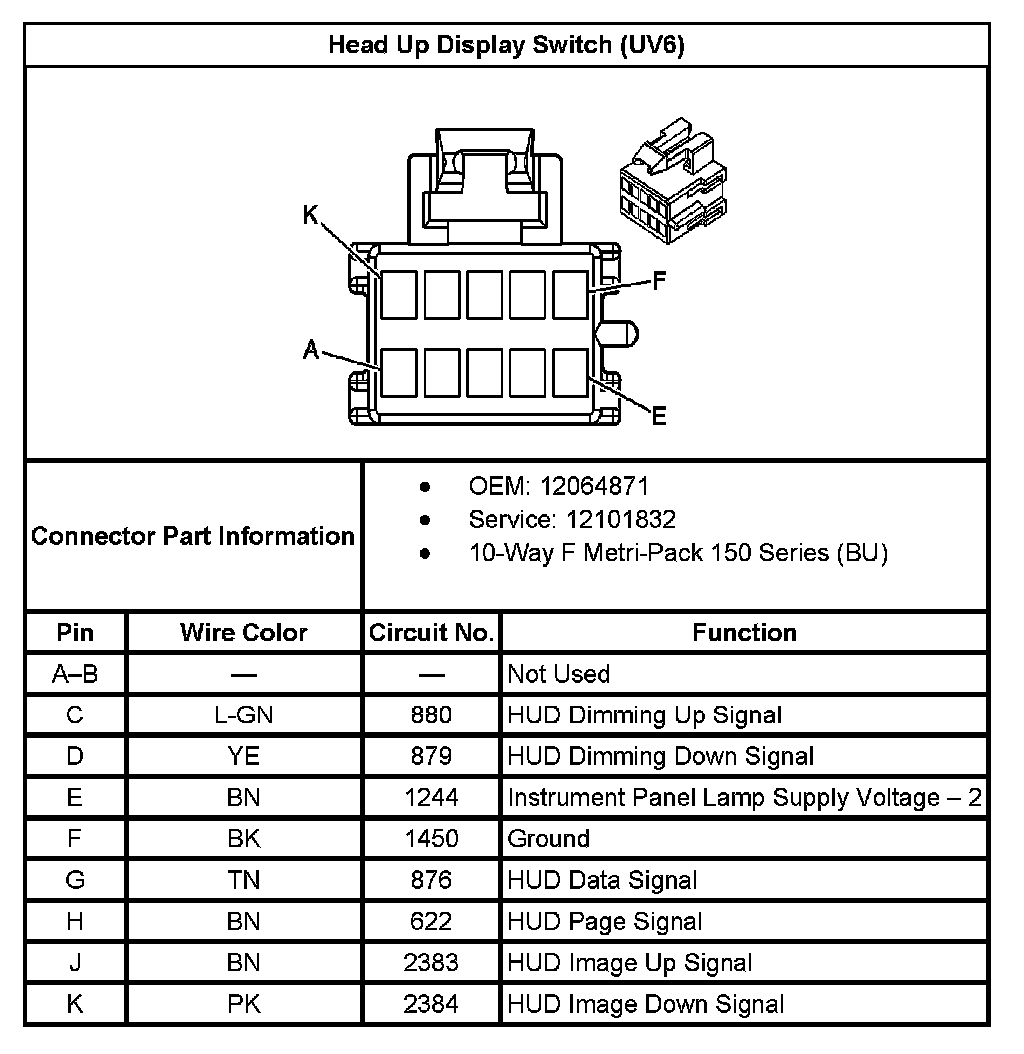

Head Up Display Switch (With RPO Code UV6):
