Parking Lamp

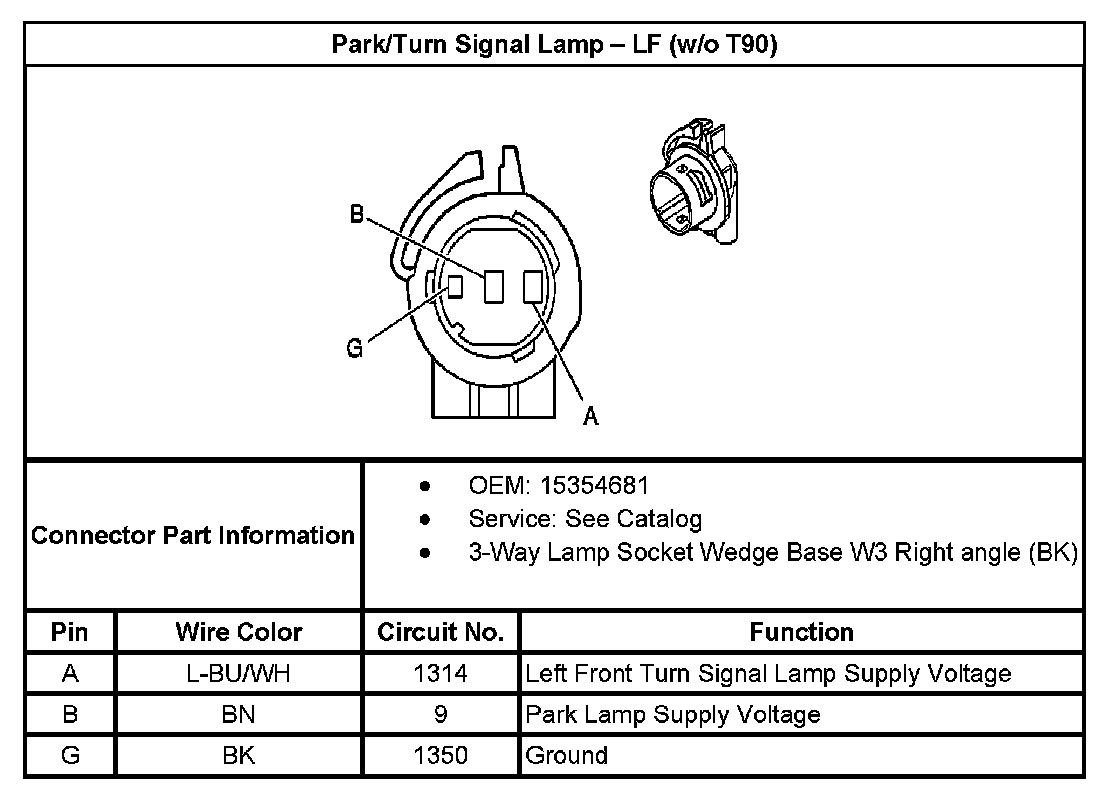

Park/Turn Signal Lamp - LF (Without RPO Code T90):

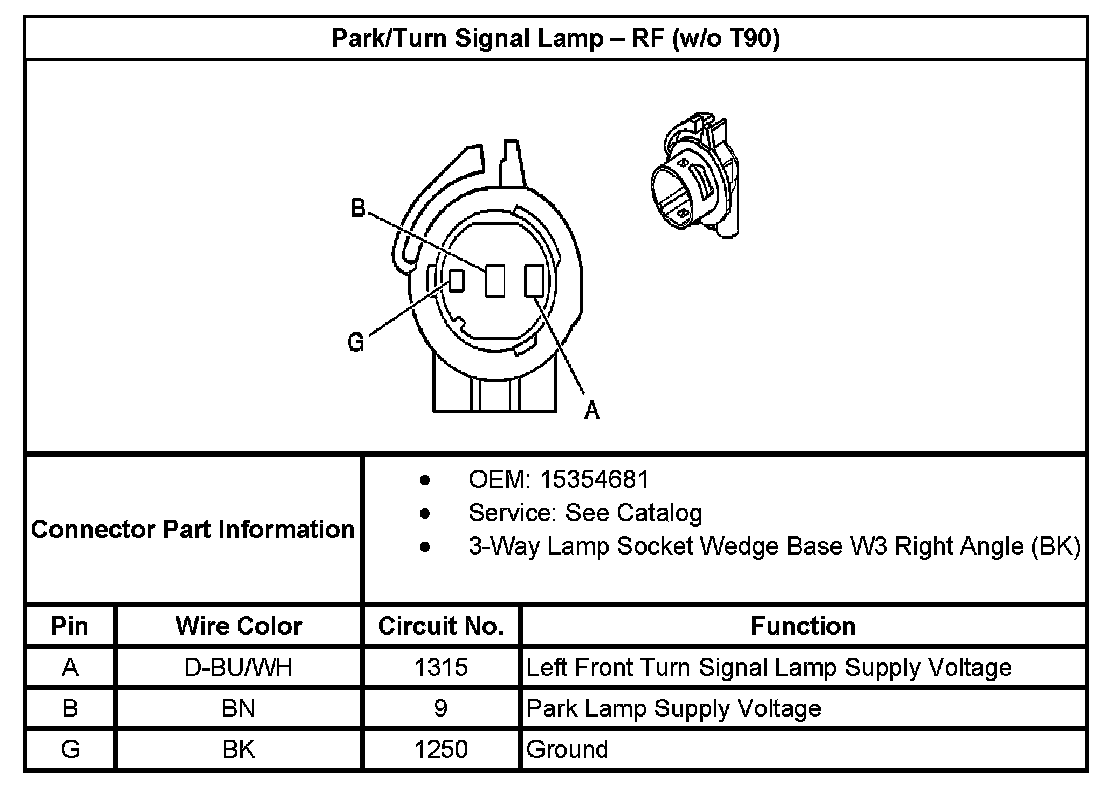

Park/Turn Signal Lamp - RF (Without RPO Code T90):
