Ride Height Sensor, Suspension Control

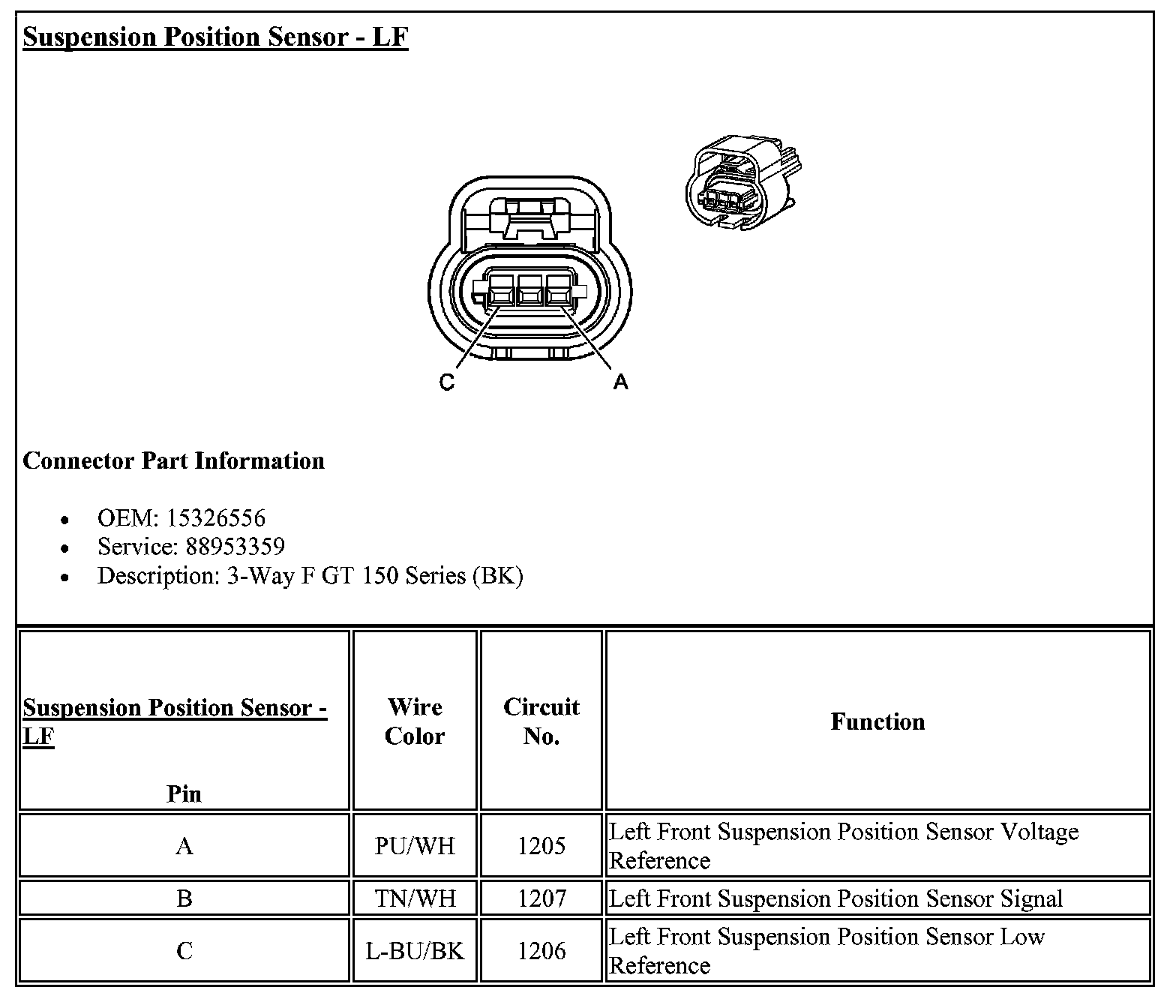

Suspension Position Sensor - LF:

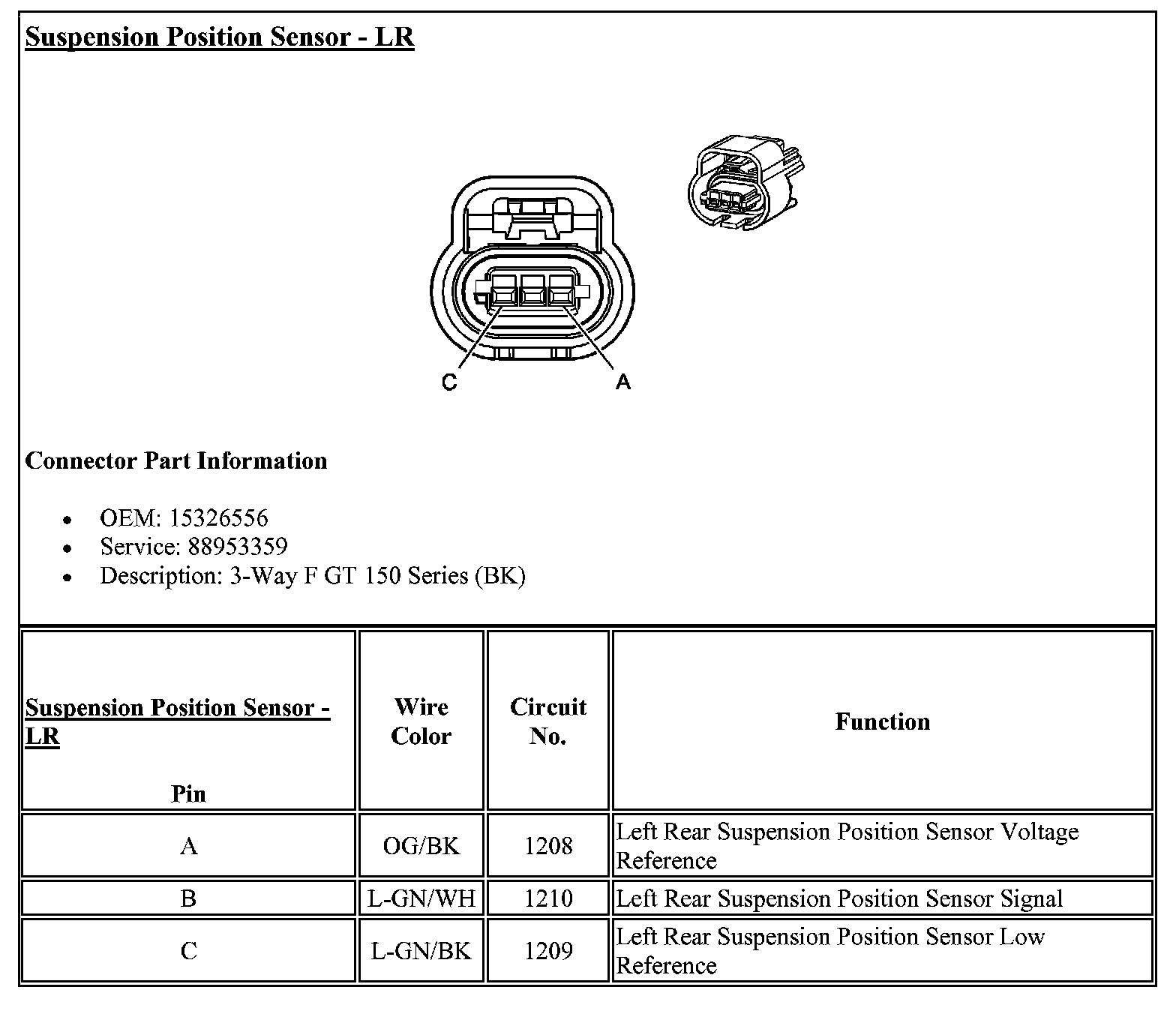

Suspension Position Sensor - LR:




Suspension Position Sensor - RF:

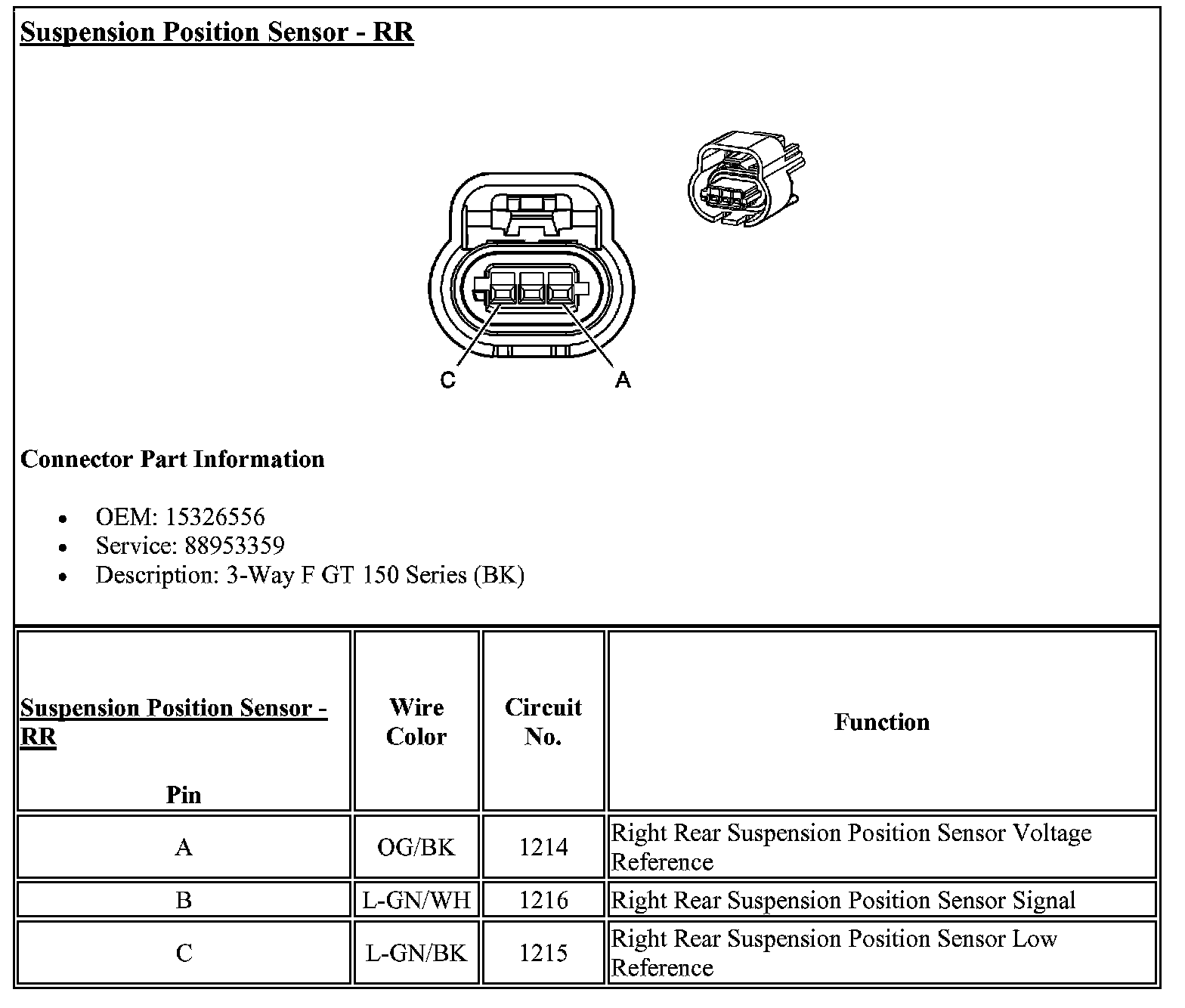

Suspension Position Sensor - RR:
