Diagrams
>>
Connector Views
>>
Suspension Strut / Shock Absorber
Suspension Strut / Shock Absorber

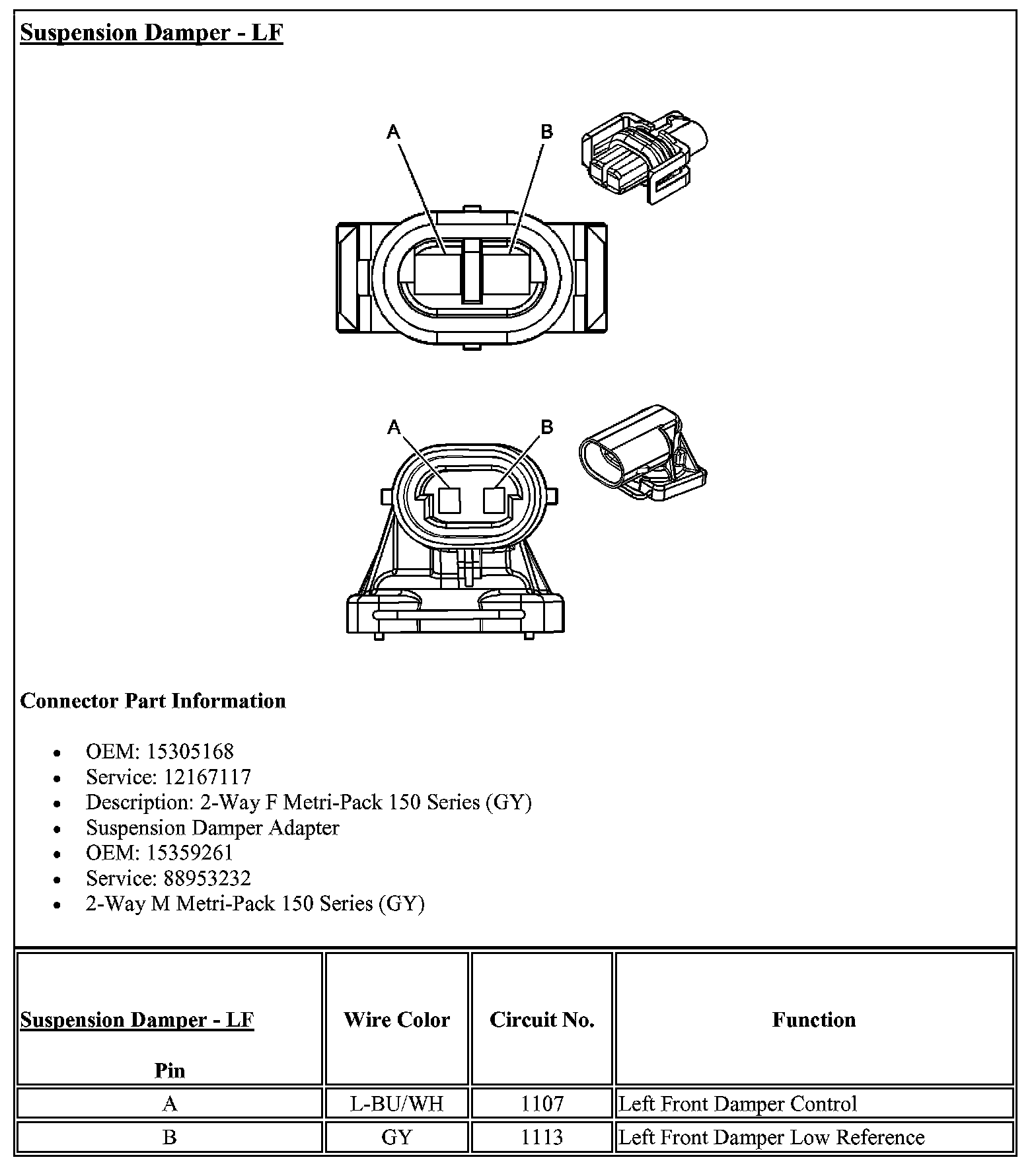

Suspension Damper - LF:

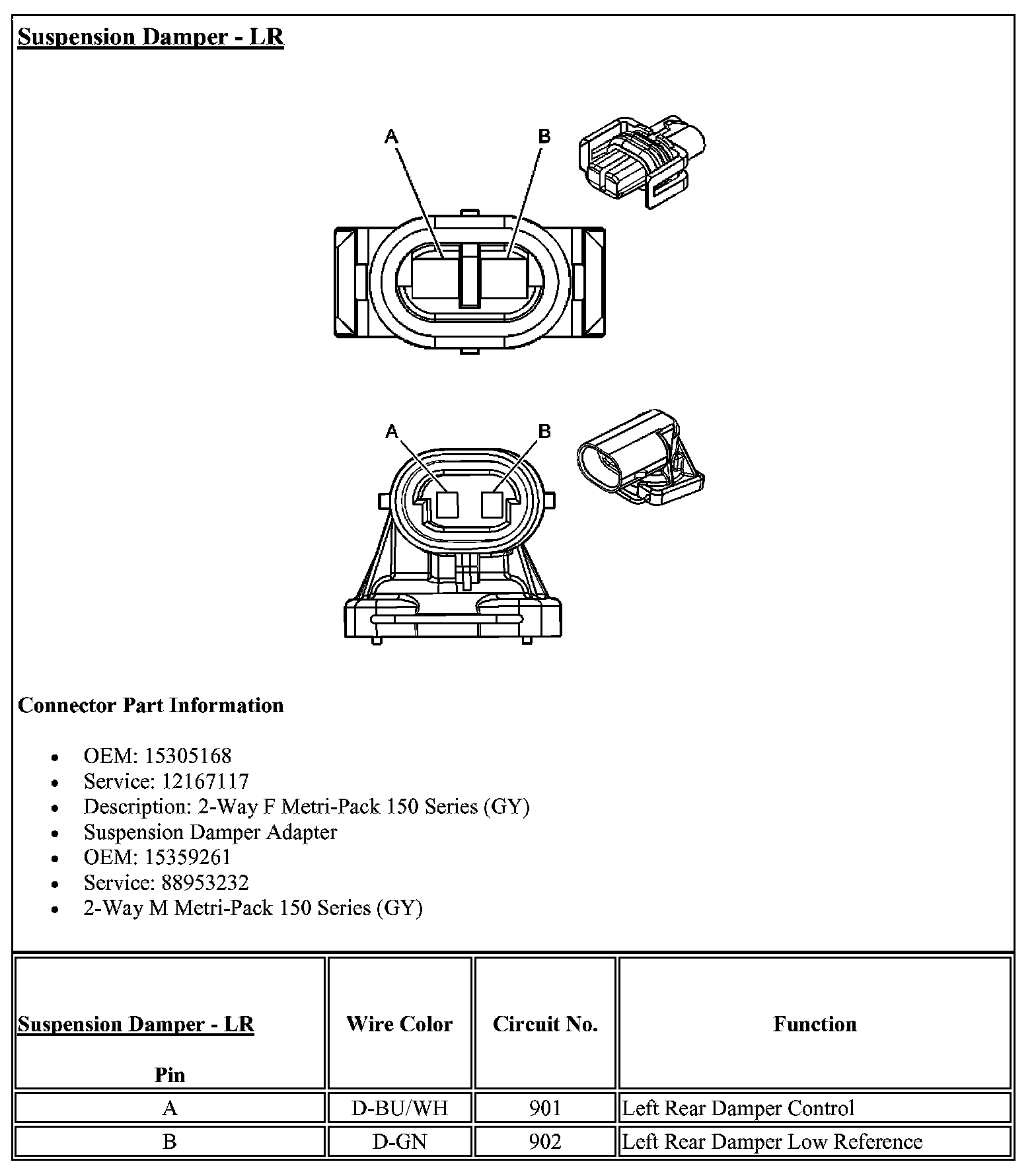

Suspension Damper - LR:
Suspension Damper - RF:
Suspension Damper - RR:
