Trunk Lamp
Trunk Lamp
Rear Compartment Courtesy Lamp - Left:

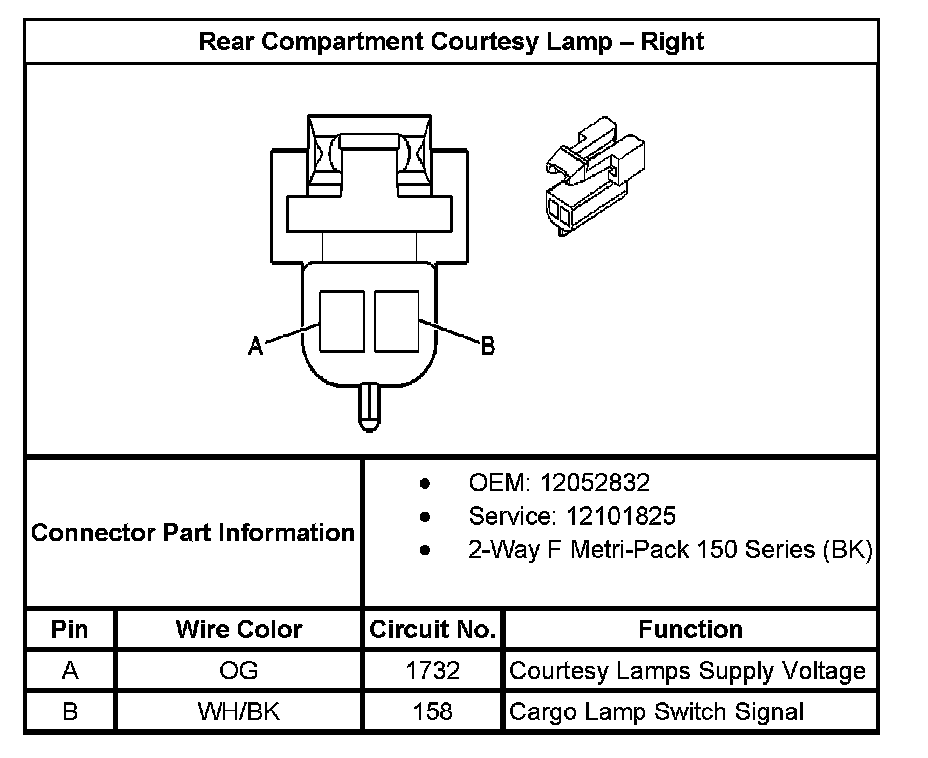

Rear Compartment Courtesy Lamp - Right:
