Exhaust System

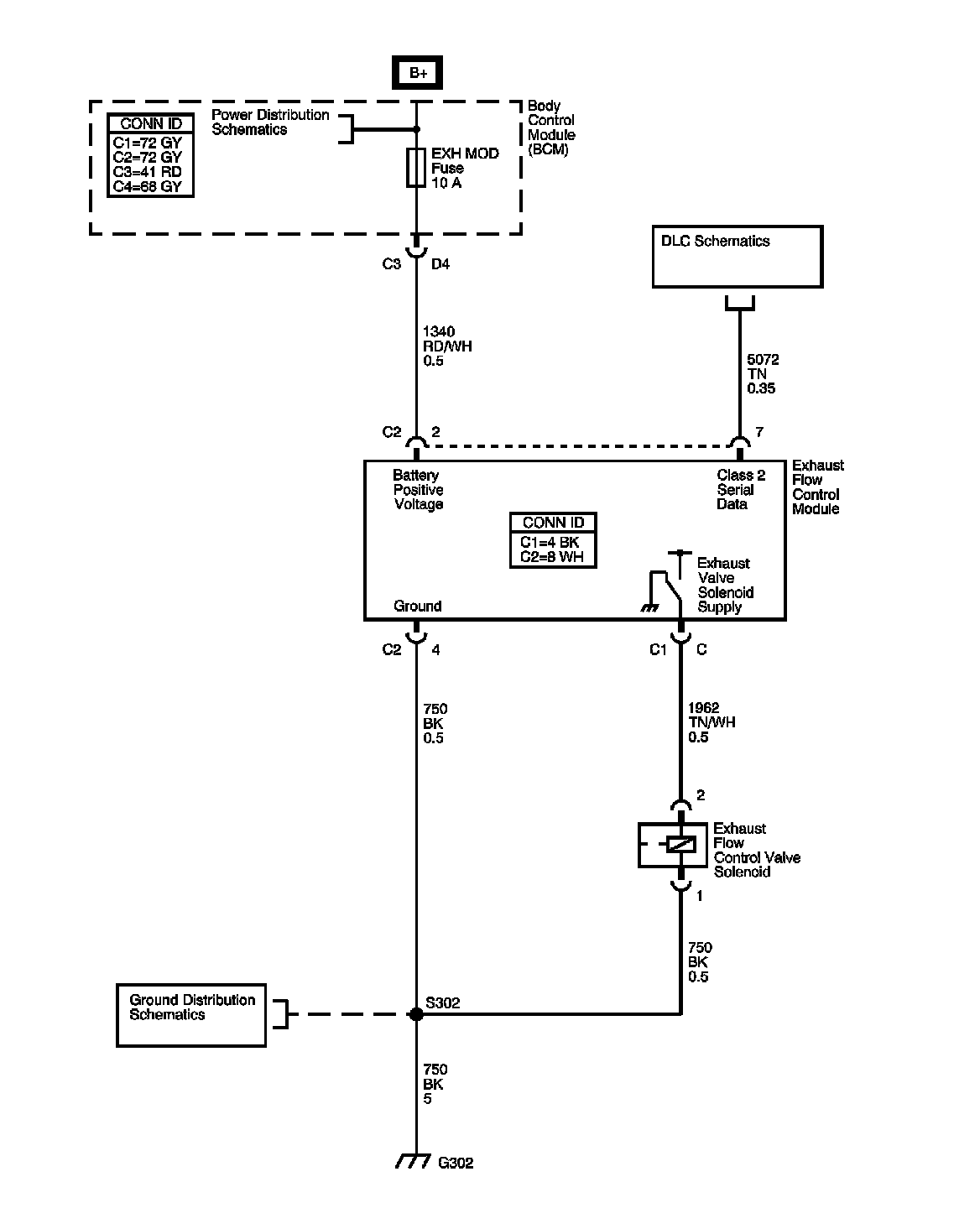

Exhaust System Diagrams 1:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Component Locations- Vehicle Locations
