Suspension Control ( Automatic - Electronic )

Suspension Controls Schematics

Suspension Controls Schematics (Part 1):

Control Switch, DLC, Ground, and Power

Suspension Controls Schematics (Part 2):

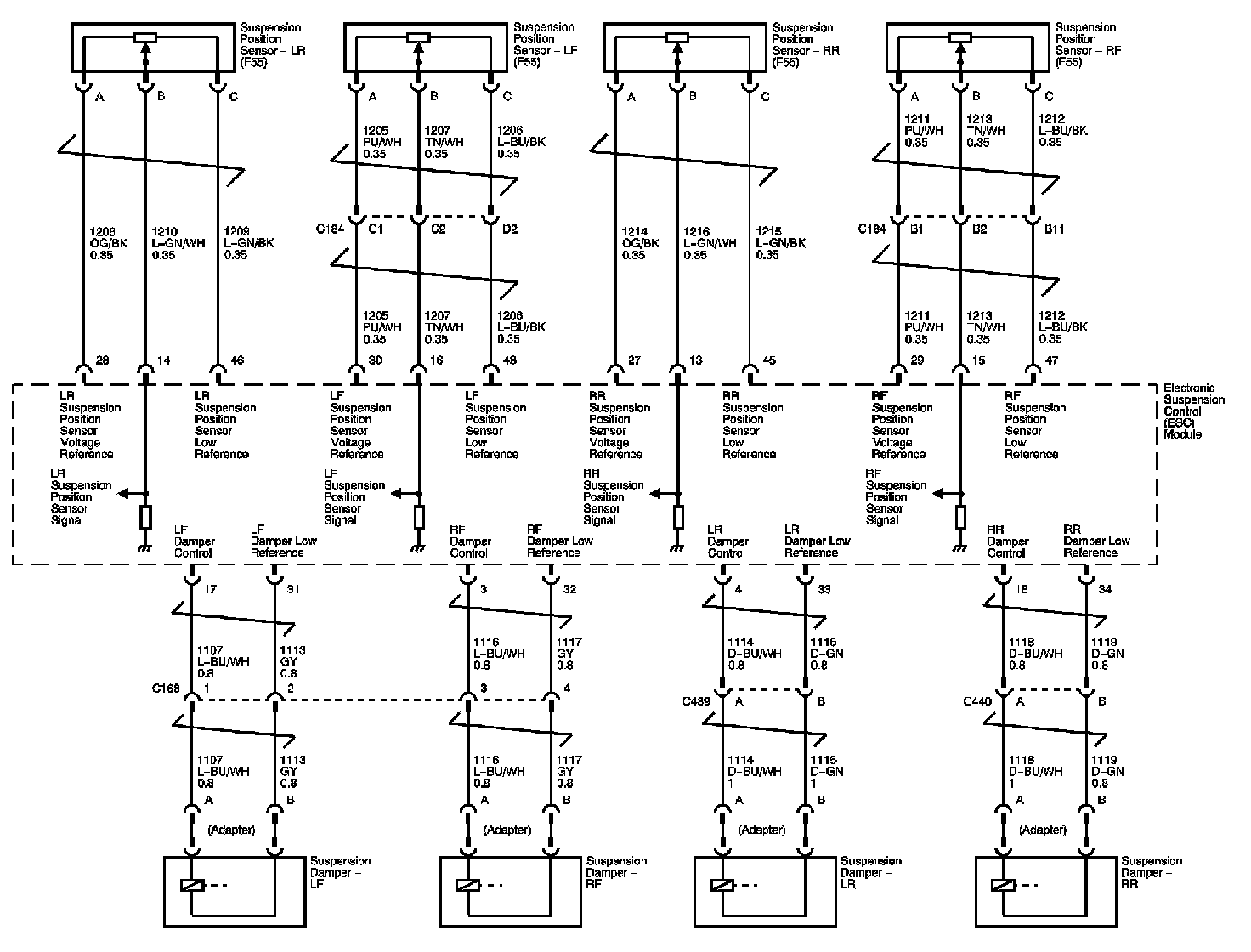

Sensors and Dampers

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
