Automatic Transmission Harness Views
Automatic Transmission Harness Views

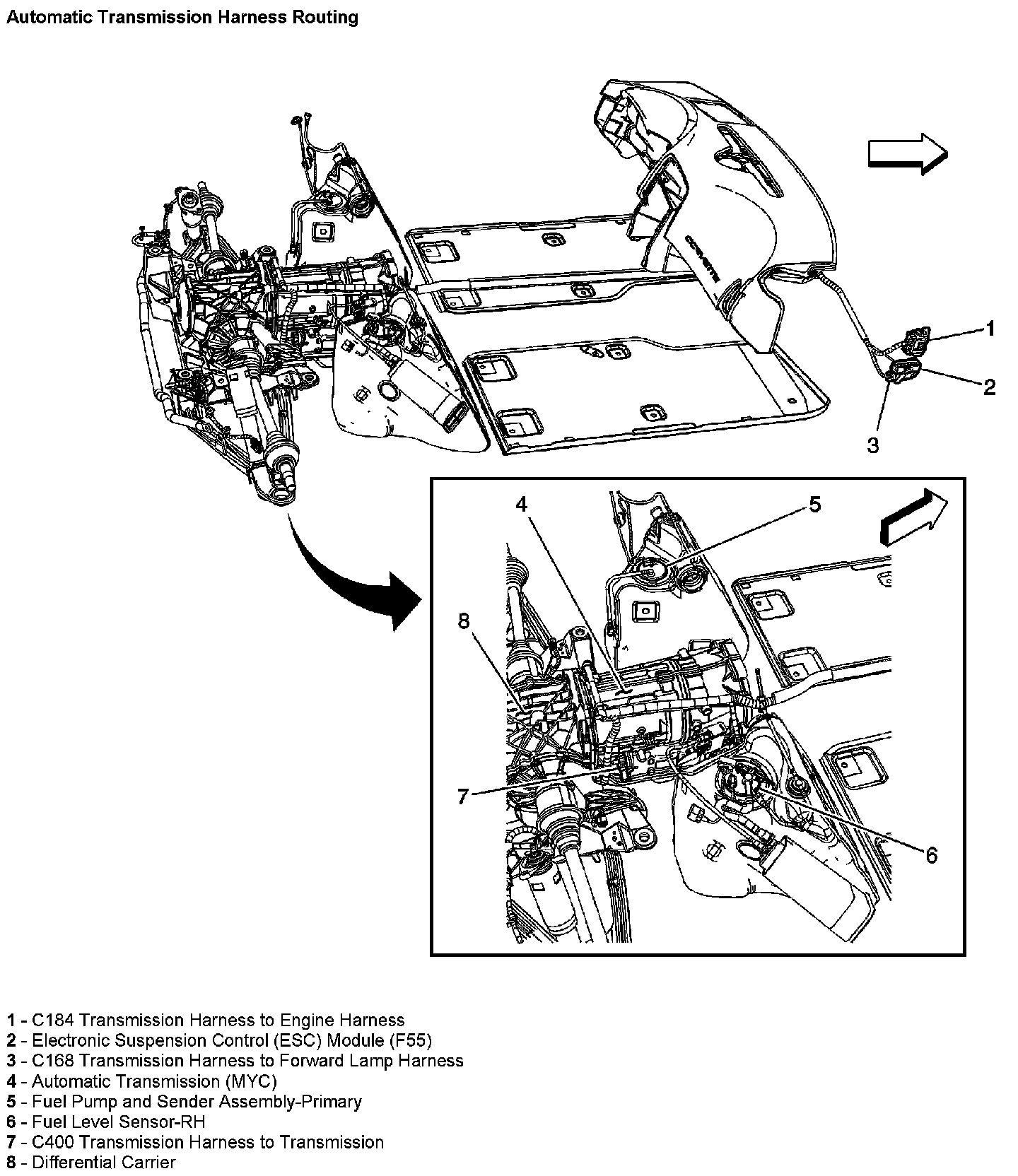

Automatic Transmission Harness Routing:
