Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2006
>>
Corvette V8-7.0L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>
Master Splice List
Master Splice List
S100 - S231:

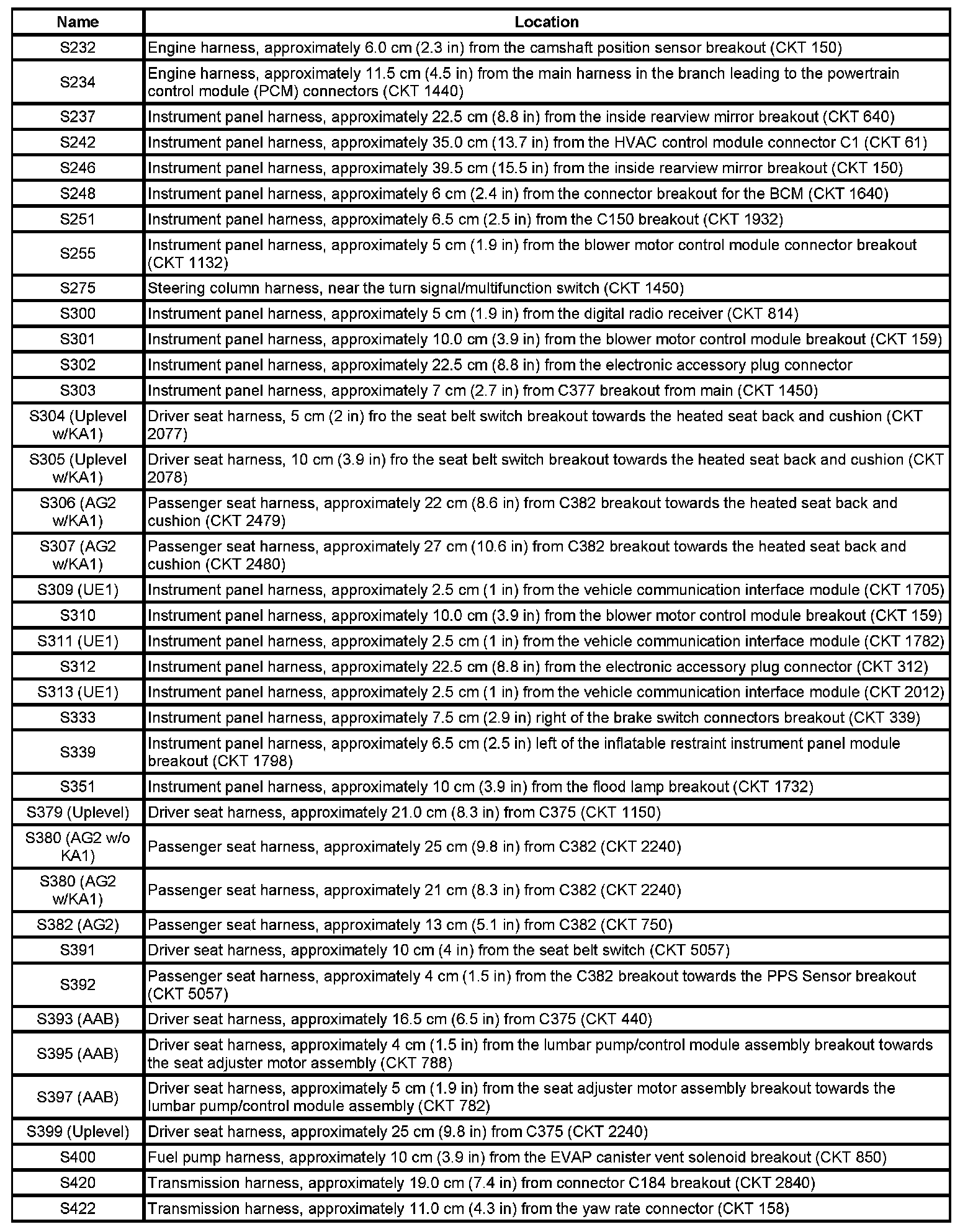

S232 - S422:

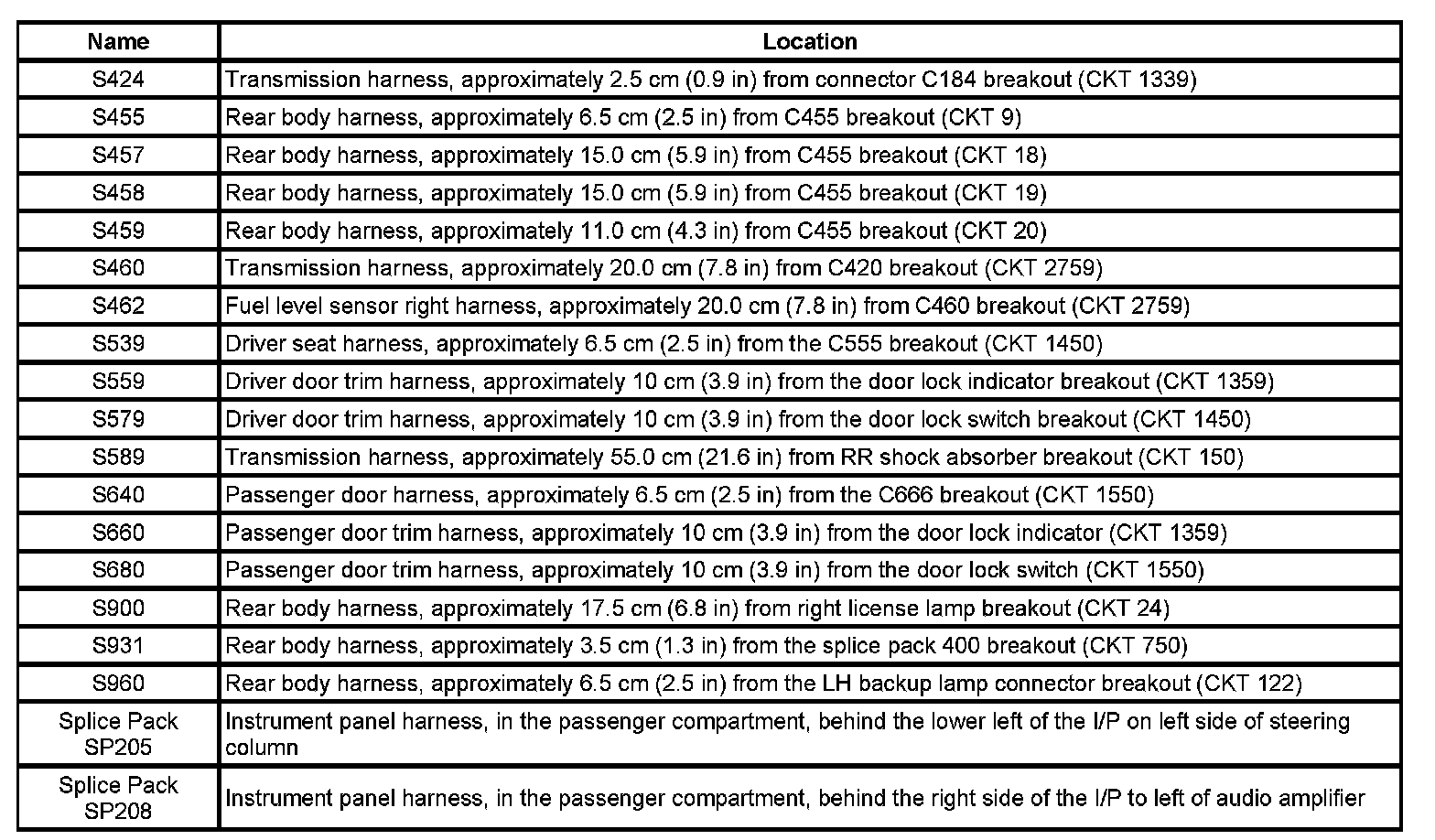

S424 - SP208:
