Electrical Diagrams

HVAC Schematics

HVAC Schematics (Part 1):

Blower Controls, DLC, Ground, MIL, Power, and Subsystem References

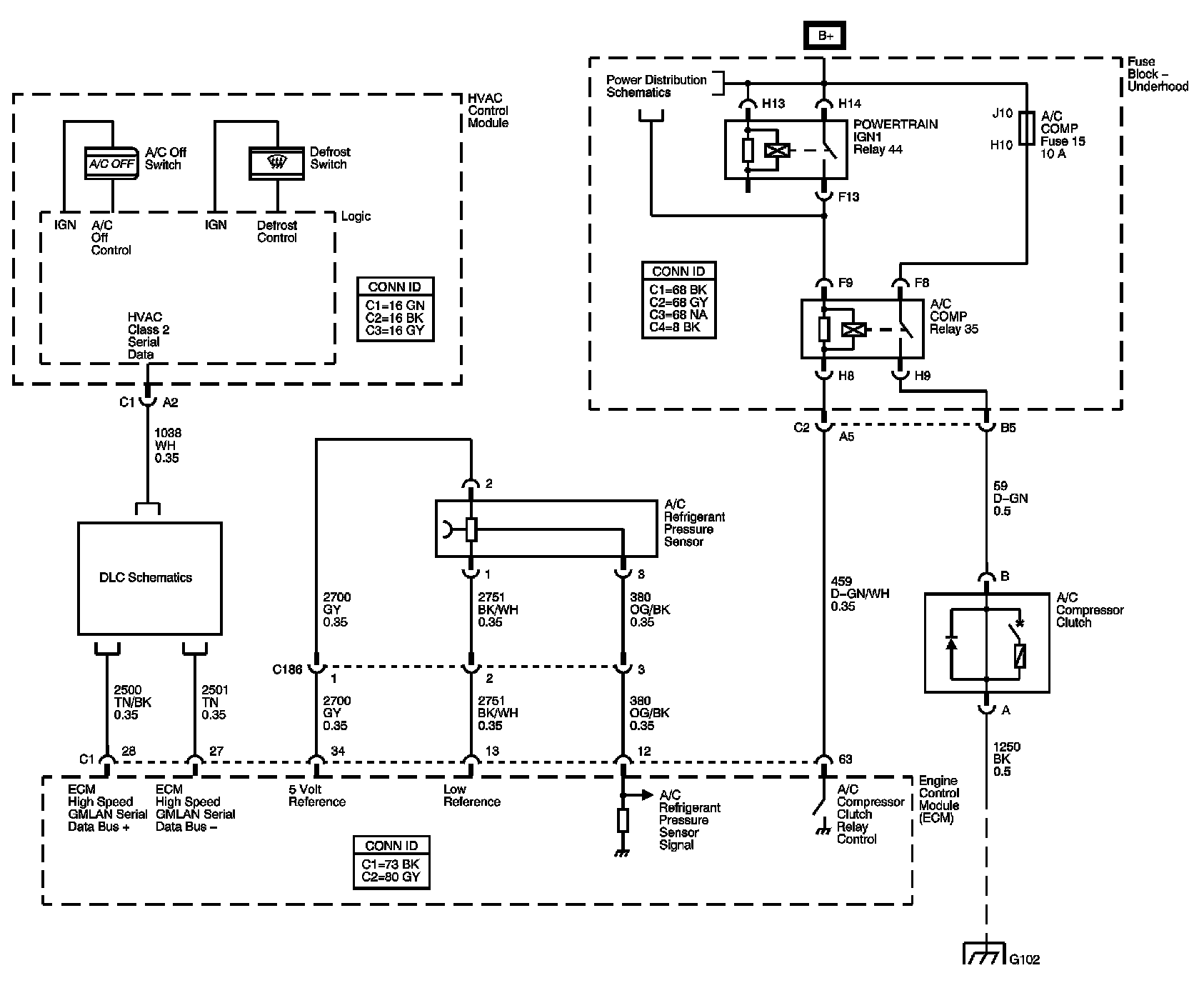

HVAC Schematics (Part 2):

Compressor Controls

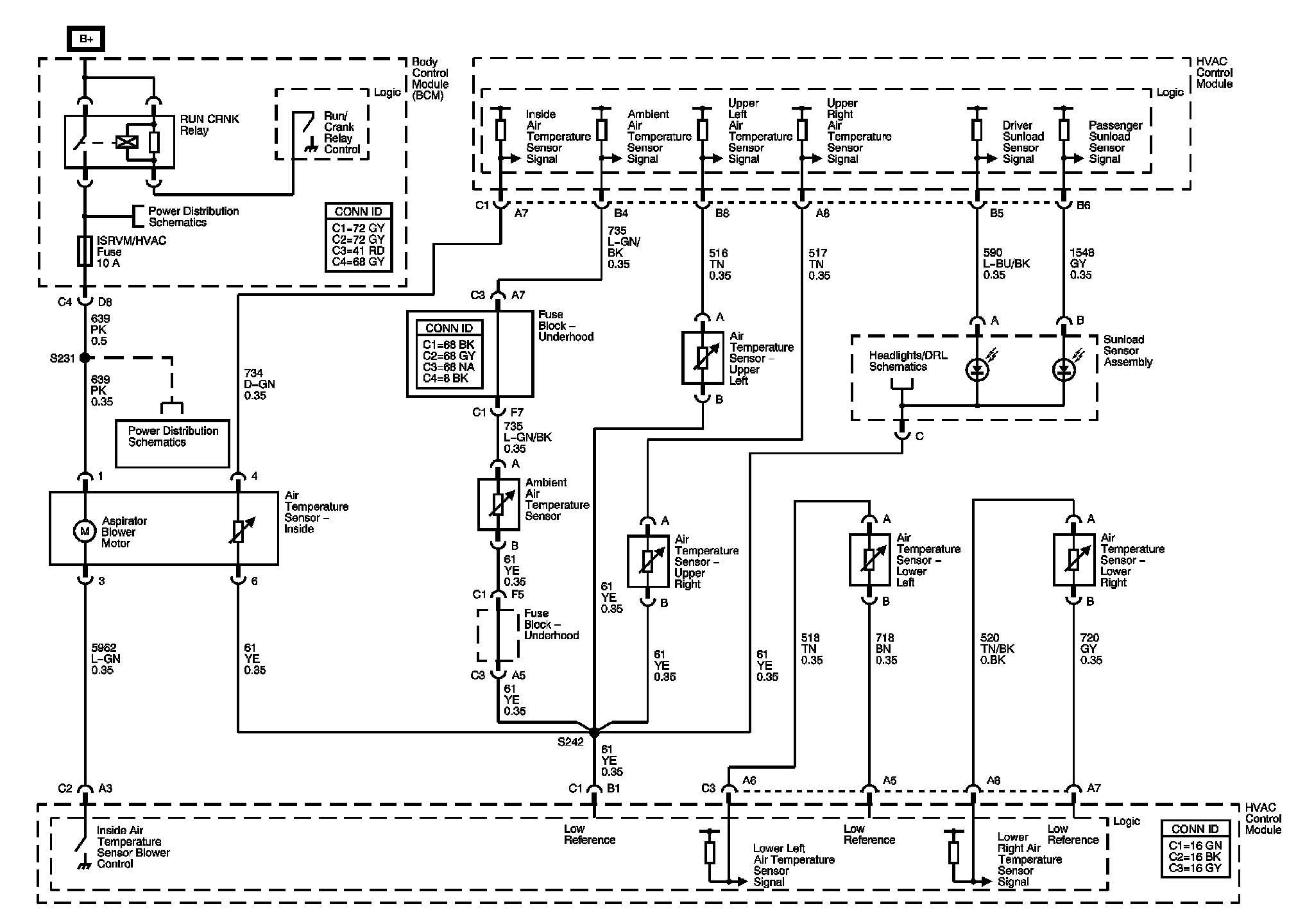

HVAC Schematics (Part 3):

Temperature Sensors

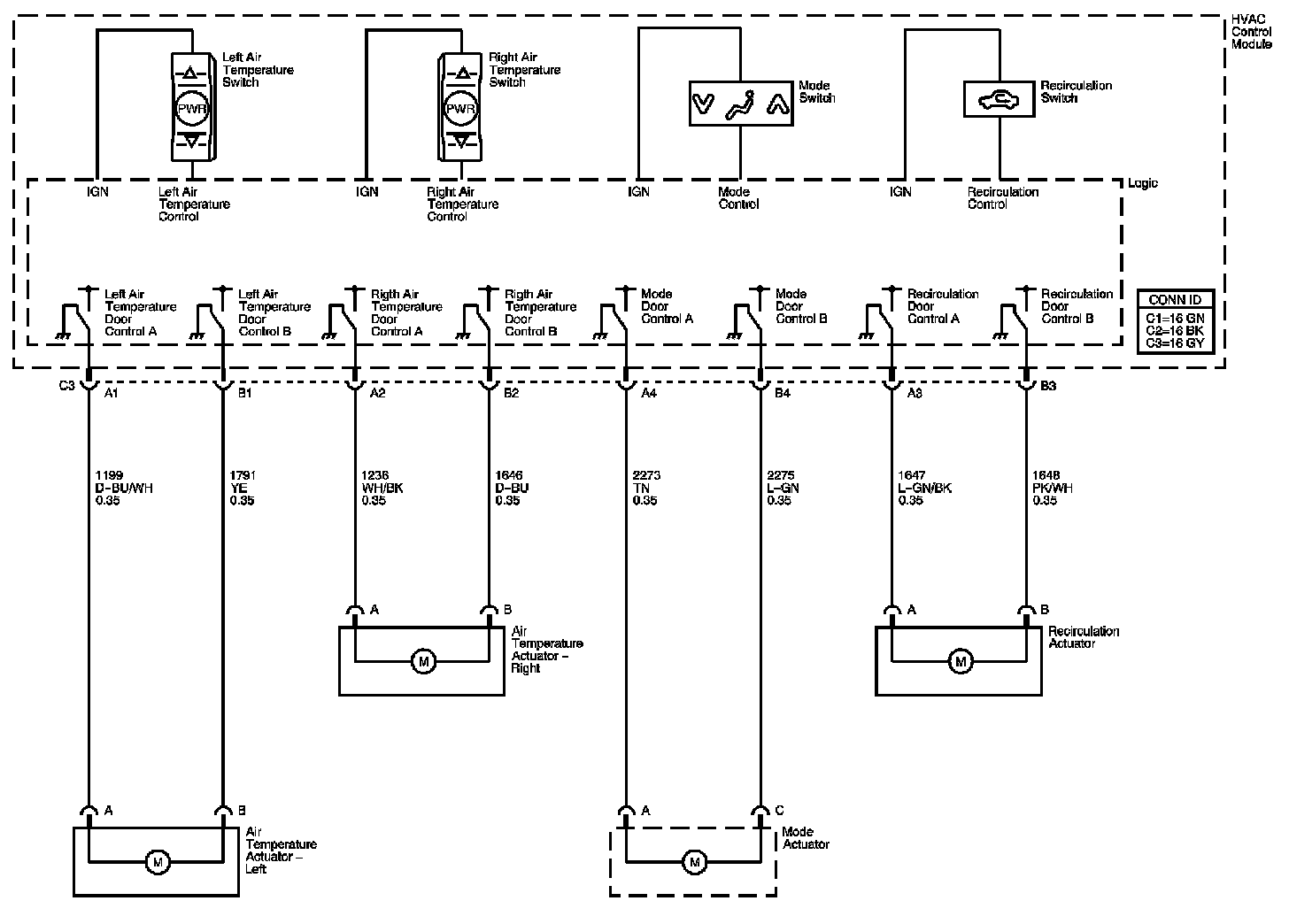

HVAC Schematics (Part 4):

Actuators



Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
