Evaporator Drain Tube: Service and Repair

EVAPORATOR DRAIN TUBE REPLACEMENT

REMOVAL PROCEDURE
1. Remove the heater pipe assembly.

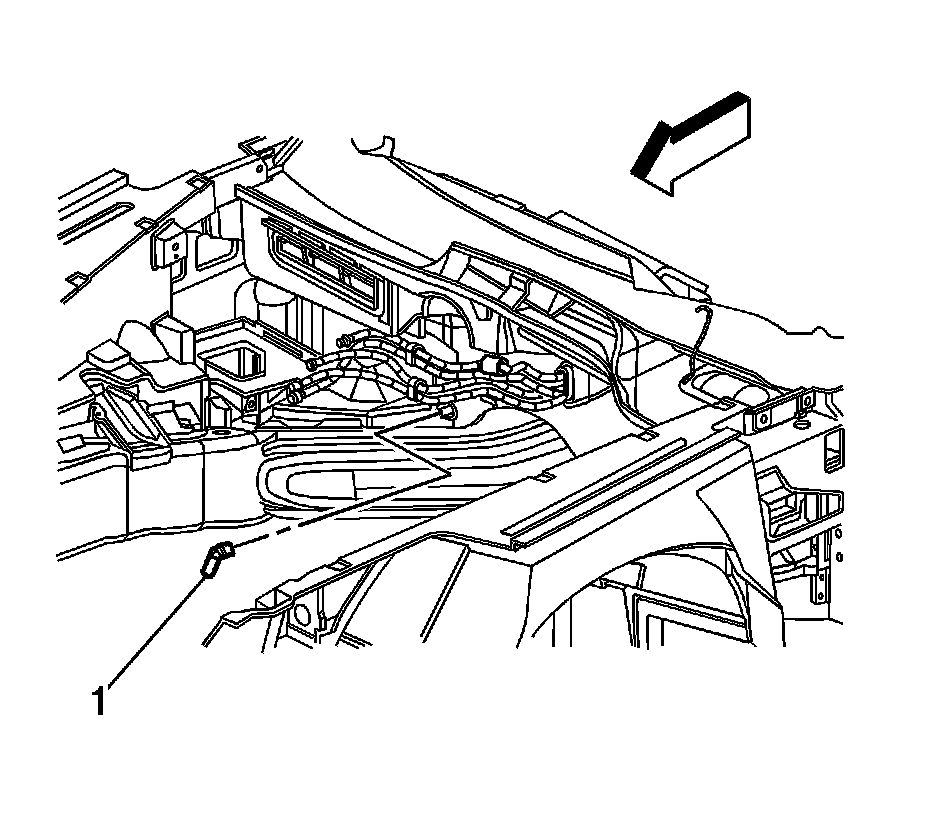

2. Remove the HVAC module drain tube (1) from the HVAC module.

INSTALLATION PROCEDURE




1. Install the HVAC module drain tube (1) to the HVAC module.

IMPORTANT: Ensure that the HVAC module drain tube is fully seated onto the HVAC module.

2. Install the heater pipe assembly.
