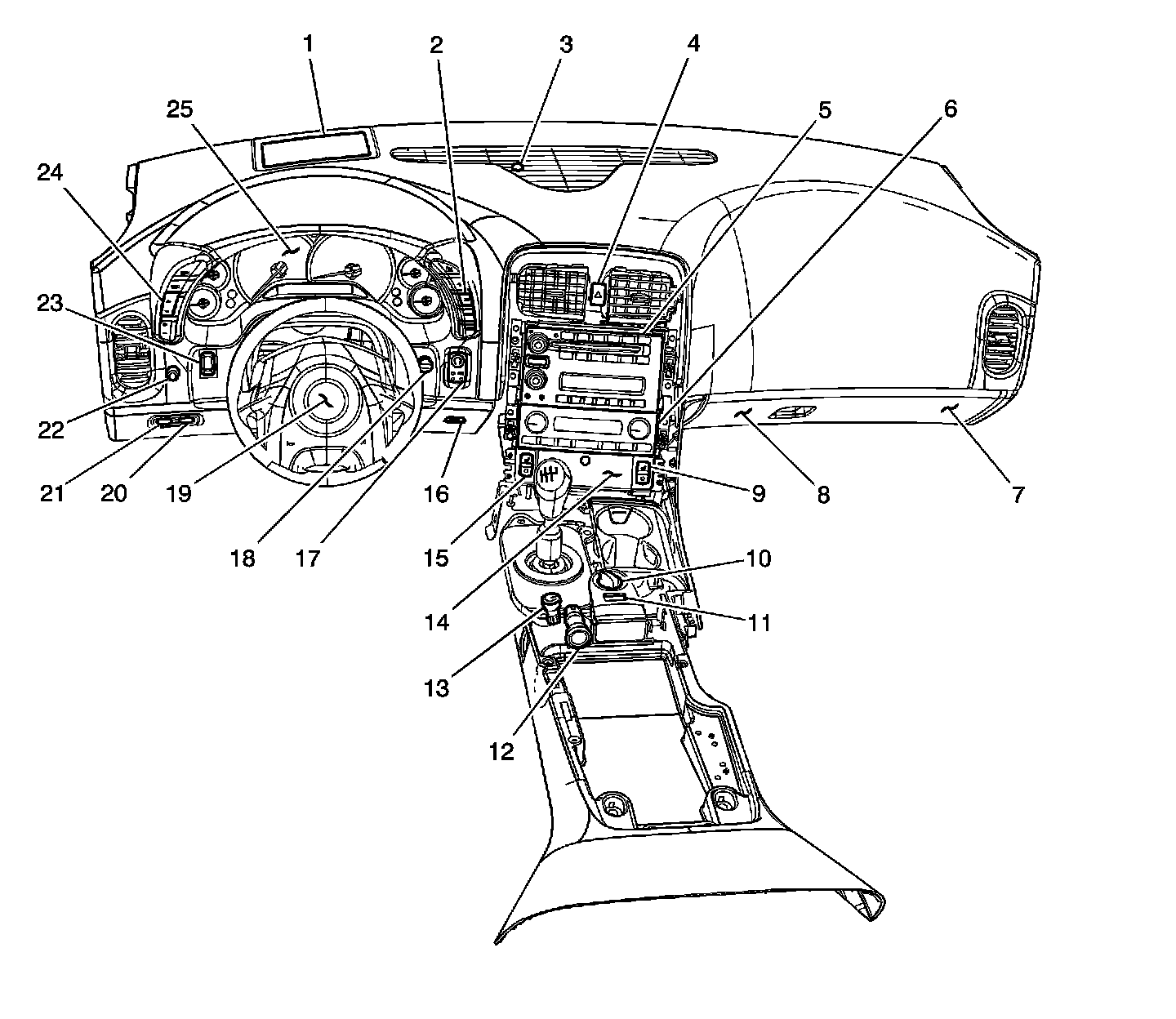

I/P Console Components





1 - Head Up Display (HUD) (UV6)
2 - Driver Information Center (DIC) Switch
3 - Sunload Sensor Assembly
4 - Hazard Switch
5 - Radio
6 - HVAC Control Module
7 - Inflatable Restraint I/P Module Disable Switch
8 - I/P Compartment Lamp
9 - Heated Seat Switch - Passenger
10 - Suspension Control Switch
11 - Inflatable Restraint I/P Module Disable Switch LED
12 - Auxiliary Power Outlet
13 - Traction Control Switch
14 - Cigar Lighter
15 - Heated Seat Switch - Driver
16 - Footwell Courtesy Lamp - Left
17 - Ignition Mode Switch
18 - Air Temperature Sensor - Inside
19 - Inflatable Restraint Steering Wheel Module
20 - Rear Compartment Lid Release Switch - Interior
21 - Fuel Door Release Switch
22 - I/P Dimmer Switch
23 - Folding Top Control Switch (CM7)
24 - Head Up Display (HUD) Switch (UV6)
25 - Instrument Panel Cluster (IPC)
