Courtesy Lamp: Service and Repair

COURTESY LAMP REPLACEMENT - INSTRUMENT PANEL

REMOVAL PROCEDURE

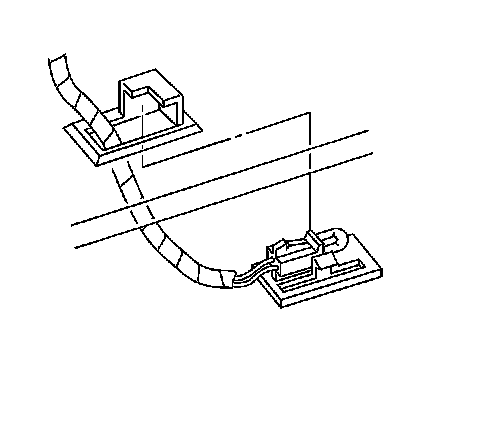

1. Using a flat-bladed screwdriver or similar tool, unsnap the instrument panel (I/P) courtesy lamp from the I/P lower closeout panel.




2. Remove the bulb from the socket, if replacing.

INSTALLATION PROCEDURE




1. Install the bulb to the socket, if replacing.




2. Install the I/P courtesy lamp into the I/P lower closeout panel.Push on the lamp snapping the lamp into the panel.
