Air Door Actuator / Motor, HVAC
>>
Air Temperature Actuator
Air Temperature Actuator
Air Temperature Actuator (With RPO Code C67):

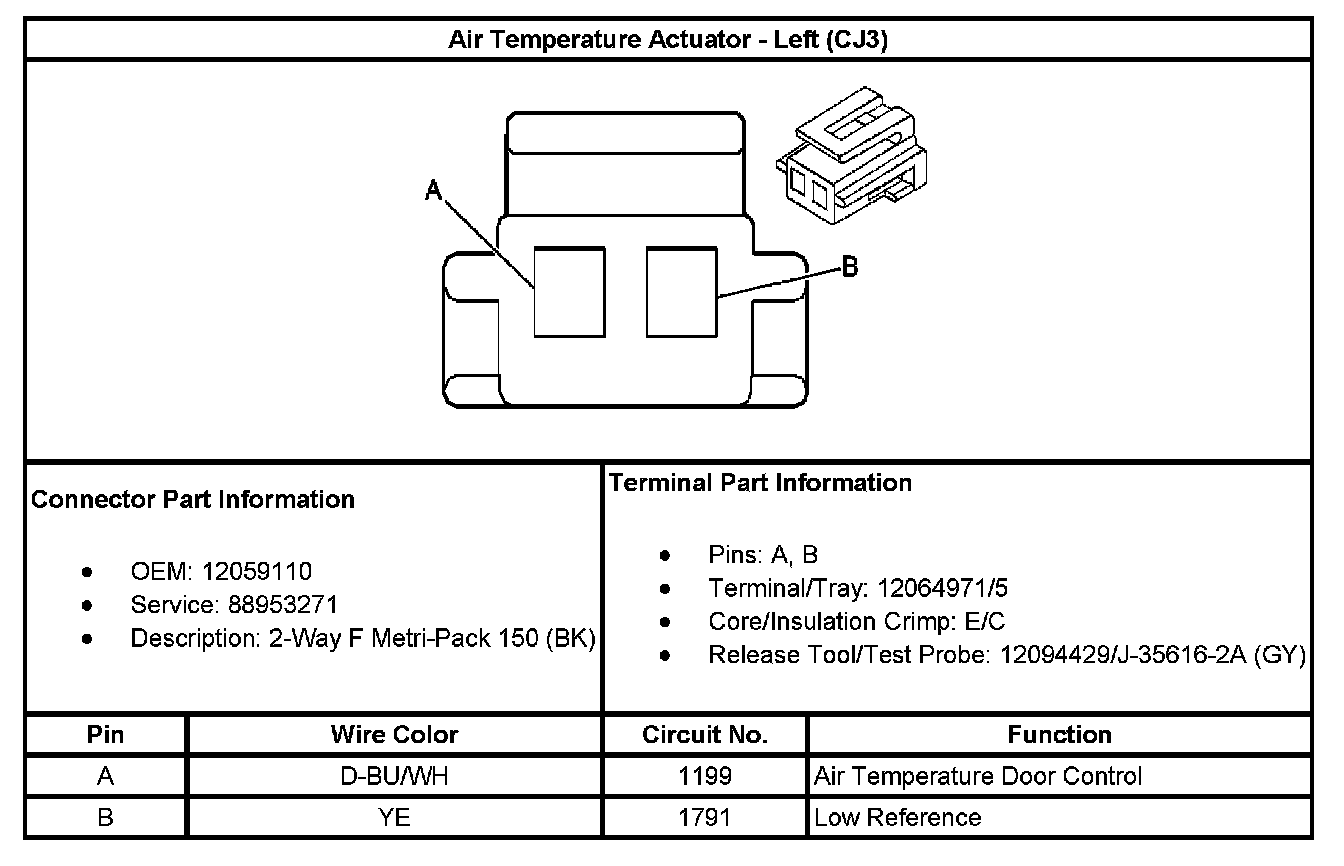

Air Temperature Actuator - Left (With RPO Code CJ3):

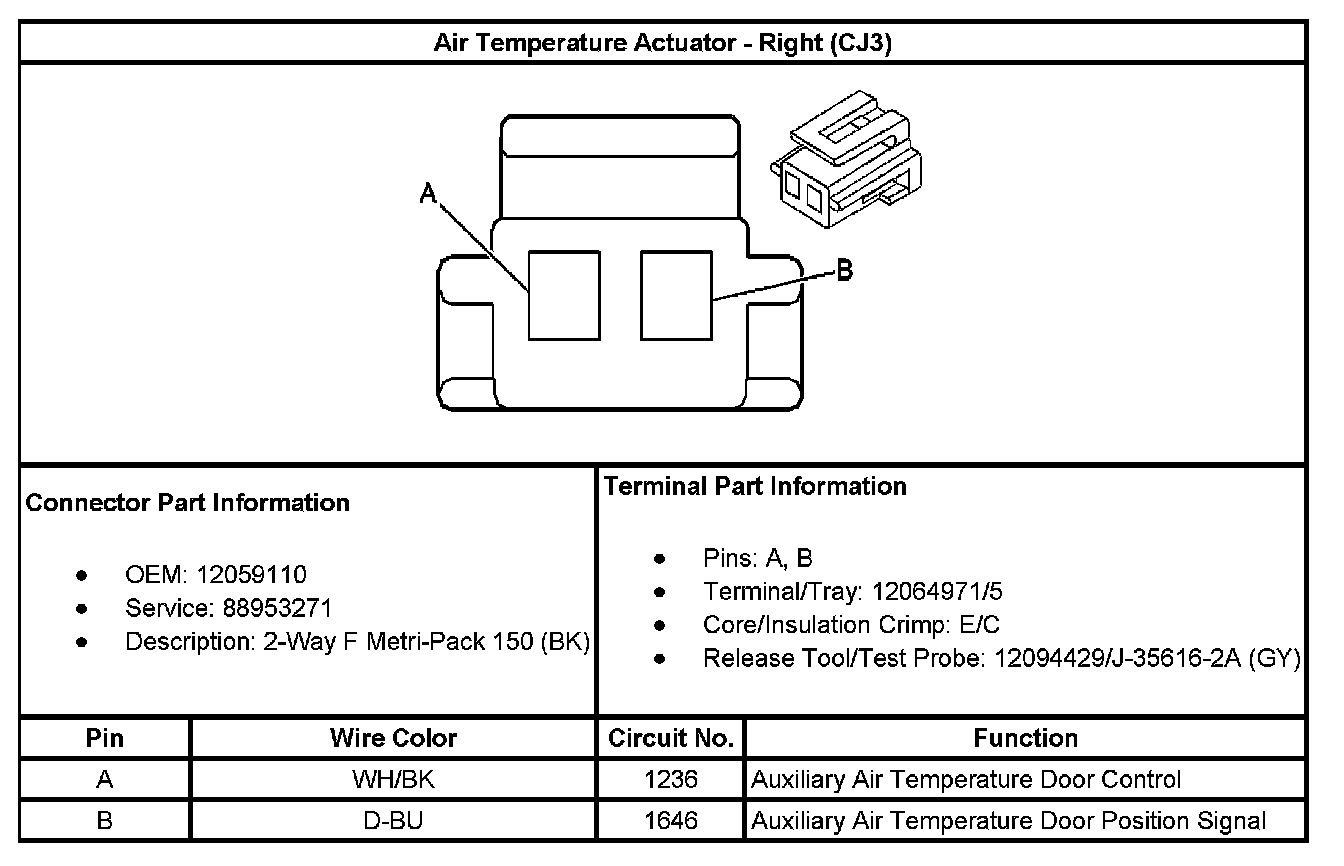

Air Temperature Actuator - Right (With RPO Code CJ3):
