Antenna, Radio: Service and Repair

ANTENNA REPLACEMENT - DIGITAL RADIO

REMOVAL PROCEDURE
1. Lower the headliner leaving the wiring harness attached. Refer to Headliner Replacement (Sedan) Headliner Replacement (Extended Sedan) in Interior Trim.

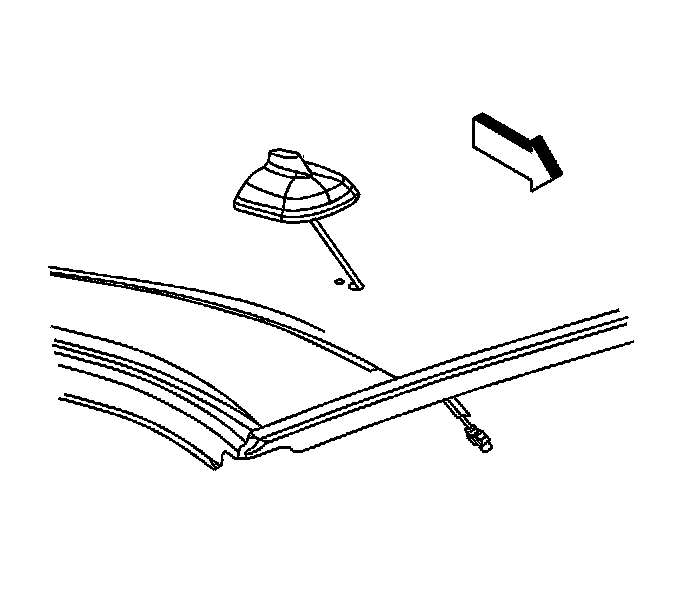

2. Remove the attachment nut from the antenna.
3. Disconnect the cable from the antenna.




4. Remove the antenna from the vehicle.

INSTALLATION PROCEDURE




1. Install the antenna to the vehicle.
2. Install the attachment nut to the antenna.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the nut to 9 N.m (80 lb in).

3. Connect the cable to the antenna.
4. Install the headliner.
