C600 - C699

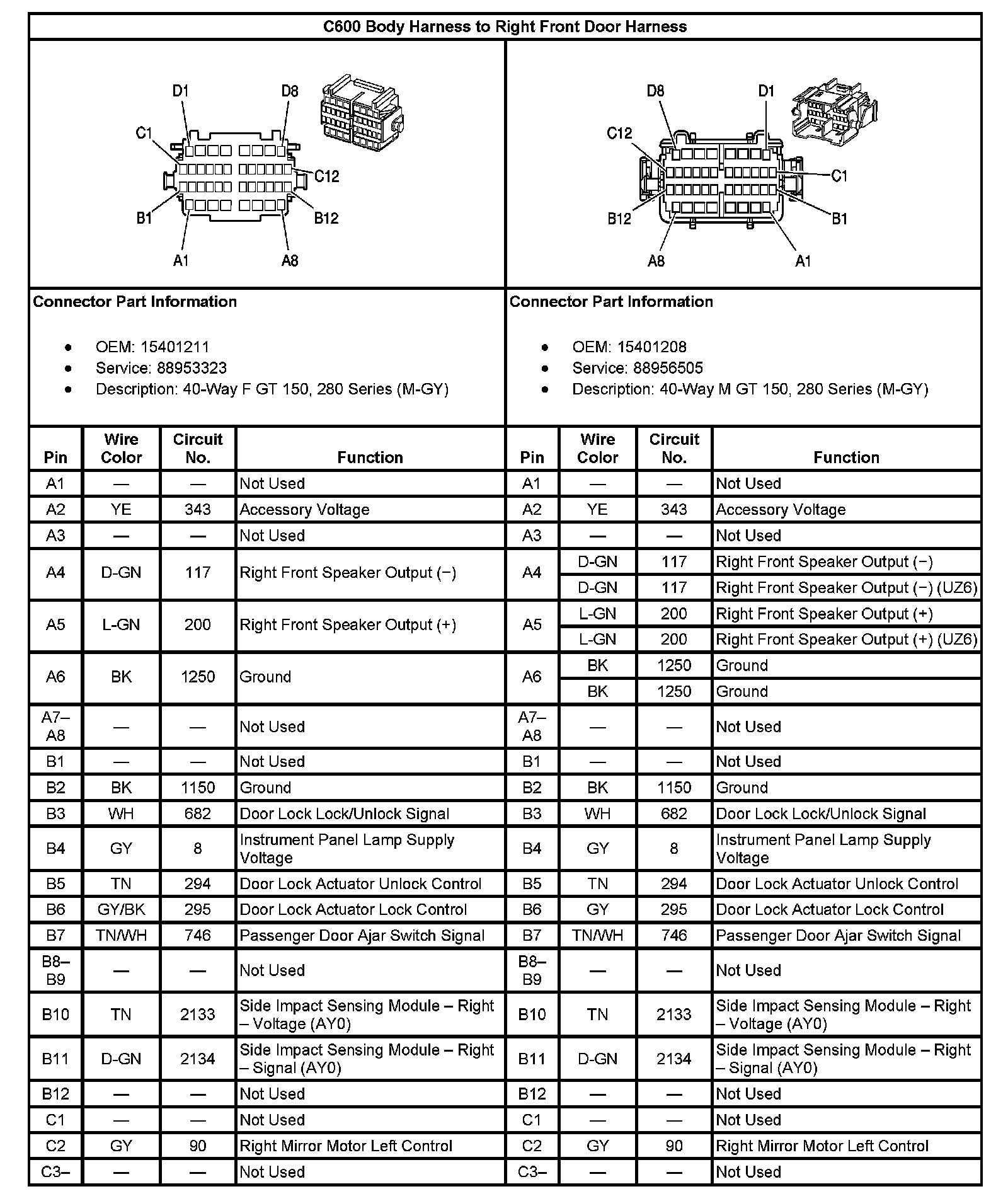

C600 Body Harness To Right Front Door Harness (Part 1):

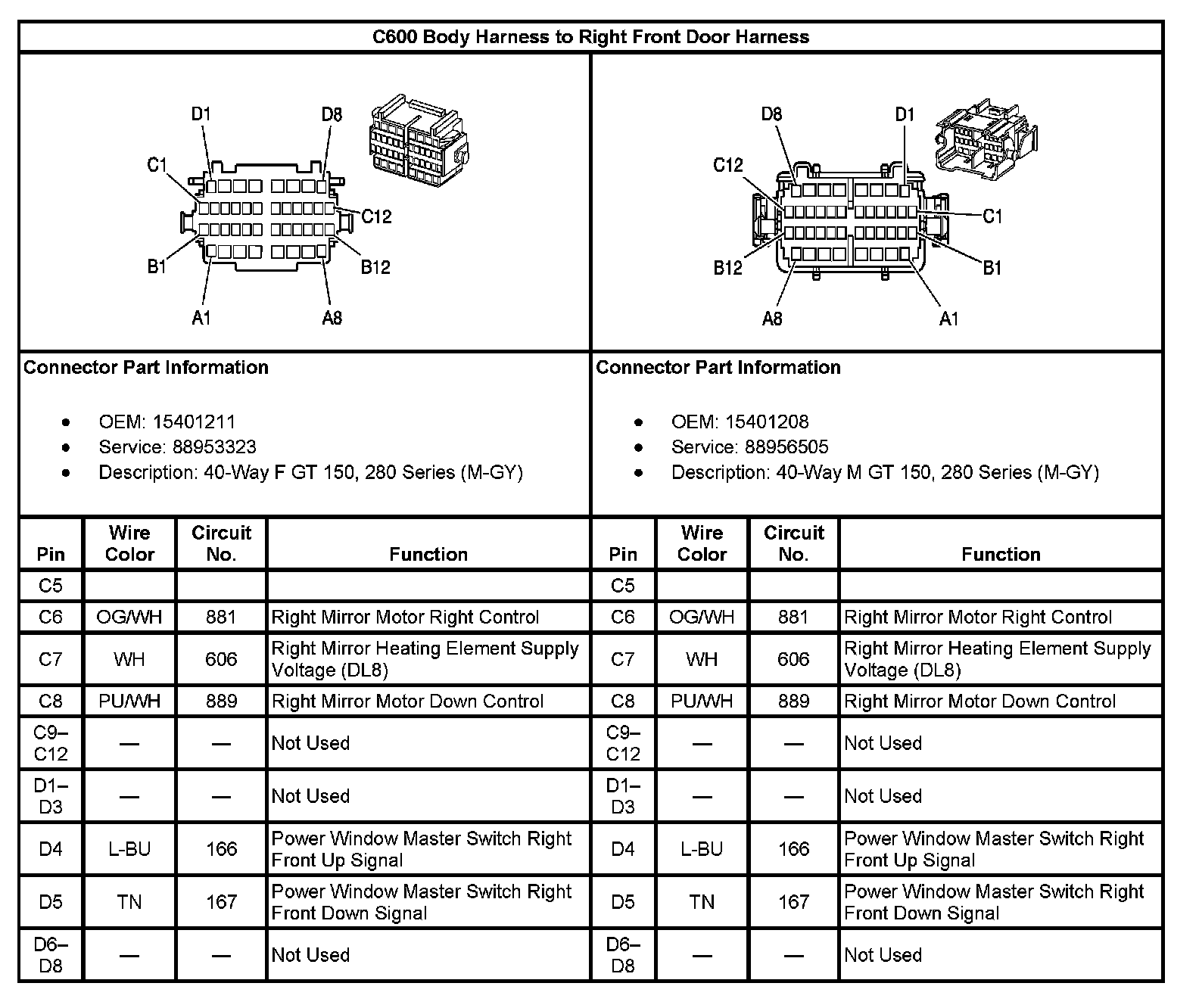

C600 Body Harness To Right Front Door Harness (Part 2):
